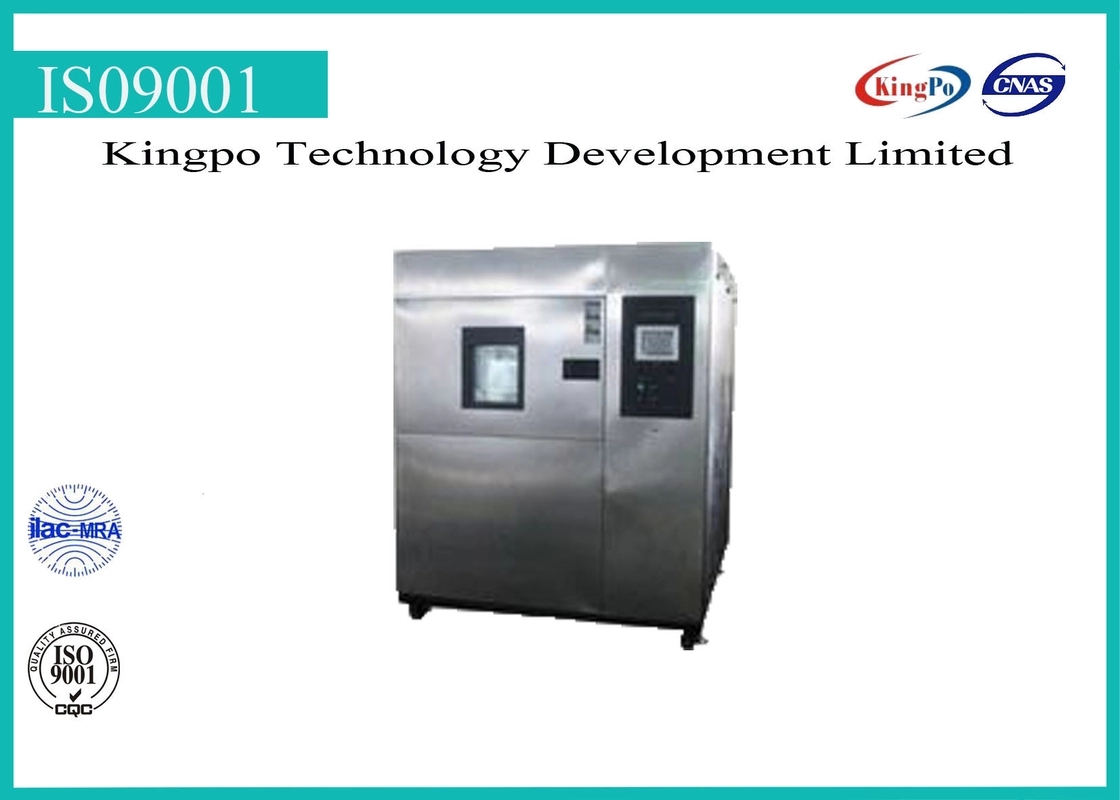

Custom Battery Testing Machine Three Zones Thermal Shock Tester GJB Standard
Custom Battery Testing Machine Three Zones Thermal Shock Tester GJB Standard
- Model：
Custom Made Three Zones High and Low Temperature impact Test Chamber For GJB Standard
1. Quick Details
| Alternative name | Three Zones Thermal Shock Tester |
| Function | Testing material structure or composite materials in instant and continuous temperature changing environment, check the chemical and physical damage. Provides basis and reference to improve quality of products |
| Type | Three zones |
| Weight | 180kg |
| Internal space | 1510mm*1730mm*1660mm |
| Corresponding test standard | GJB150, GJB360, GBJ367, GB/T5170, GB10592 |
2. Description
Thermal shock tester also is named rapid temperature changing tester or thermal cycling chamber.
The tester is used for testing material structure or composite materials.
The specimen will be exposed to continuous and instant changing circulation of extreme high and low
temperature.
Then check the chemical change and physical damage of the specimen caused by instant temperature
change.
The tester is applied to mental, plastics, rubber, electronics. The test can provides basis and reference
to improve quality of products.
The tester is divided into high temperature zone, low temperature, and test tank.
The specimen shall be still, while the tester employ special coldness and heat storage system. The cold
and hot wind will be switched and channeled to the test tank in moment, and finish the test when get the
set time.
3. Features
a. The tester is used for test chemical change and physical damage of specimen after suffering
instant extreme high and low temperature change.
b. The tester is divided three zone.
c. Widely usage.
4. Specifications
| Model | JB-3000-CH |
| Temperature range of test tank | －40℃～+150℃ |
| Preheating range of high temperature tank | ＋60℃～＋150℃ (30min, room temperature ＋ 10～＋30℃) |
| Precooling range of low temperature tank | －10℃～－40℃ |
| Cooling time for low temperature tank | About 80min from +20℃ to -40℃ (room temperature ＋10～＋30℃) |
| Temperature Fluctuation | ±2.0℃ |
| Temperature uniformity | ±3.0℃ |
| Temperature shock recovery time | Within 5min |
Custom Battery Testing Machine Three Zones Thermal Shock Tester GJB Standard. Kingpo builds this as a complete test station: chamber or fixture, control system, safety interlocks and data capture, so that the abuse or performance test in the applicable standard can be run and documented without building the rig yourself.
What it does
- Reproduces the condition named in the standard (thermal, mechanical, electrical or environmental)
- Holds the setpoint within the tolerance the standard allows
- Records the run and retains the data for the test report
- Protects the operator: abuse testing is hazardous by design
Specification
| Function | Custom Battery Testing Machine Three Zones Thermal Shock Tester GJB Standard |
| Control | Programmable controller with data logging |
| Safety | Interlocked chamber / guarded fixture, emergency stop |
| Power supply | AC 220 V 50/60 Hz (other supplies on request) |
| Calibration | Calibration certificate supplied |
| Made by | Kingpo — built, tested and calibrated in-house |
How a test run works
- Confirm the standard, clause and sample preparation your market requires.
- Set the profile: setpoint, ramp rate, dwell and number of cycles.
- Load the sample, close the interlocks and start the run.
- Monitor through the viewing window or camera; do not open the chamber during an abuse test.
- Export the run data and attach it to the test report.
Buying notes
Battery abuse testing scales with cell size and energy. Tell us the largest cell or pack you will test, the standard you test to, and whether you need the chamber to be explosion-proof — those three answers decide the model more reliably than the product name.
Frequently asked questions
Can the chamber be customised?
Yes. Dimensions, temperature range, penetration fixtures and data interfaces are all configurable.
Is installation included?
We provide installation guidance and commissioning support remotely; on-site service is available.
Is calibration included?
Yes, a calibration certificate is supplied with the unit.
Related gauges and equipment
Other equipment in the same range:
- Charge And Discharge Battery Testing Machine Minimum Output Current 150mA
- RCDS-100V200A Technical Specification for battrry Charge and Discharge Equipment
- KP-5067-C Battery Testing Services , Battery Compression Tester PLC Control
- KP-PC-5000A Battery High Current Short Circuit Tester，Battery Tester
- High Stability Electrodynamic Vibration Shaker System Computer Control EV103VT
- 72V5A 4ch Battery Testing Machine High Precision And Energy Saving Feedback Type Battery Capacity Tester
Send the standard, figure number and quantity to Kingpo technical sales for a quotation and delivery date.
Parameters of the Custom Battery Testing Machine Three Zones Thermal Shock Tester GJB Standard. Chamber size, temperature range and fixture are configured to the standard and to the largest cell or pack you will test.
| Function | Custom Battery Testing Machine Three Zones Thermal Shock Tester GJB Standard |
| Control | Programmable controller with data logging |
| Safety | Interlocked enclosure / guarded fixture, emergency stop |
| Power supply | AC 220 V 50/60 Hz (three-phase and other voltages on request) |
| Scope of supply | Test station with controller and calibration certificate |
| Calibration | Calibration certificate supplied; re-calibration available |
| Origin | Kingpo — machined, inspected and calibrated in-house |
Custom versions, alternative materials and re-calibration are available. Send the standard, figure number and quantity for a quotation. Tell us the largest sample, the standard and whether the chamber must be explosion-proof.
