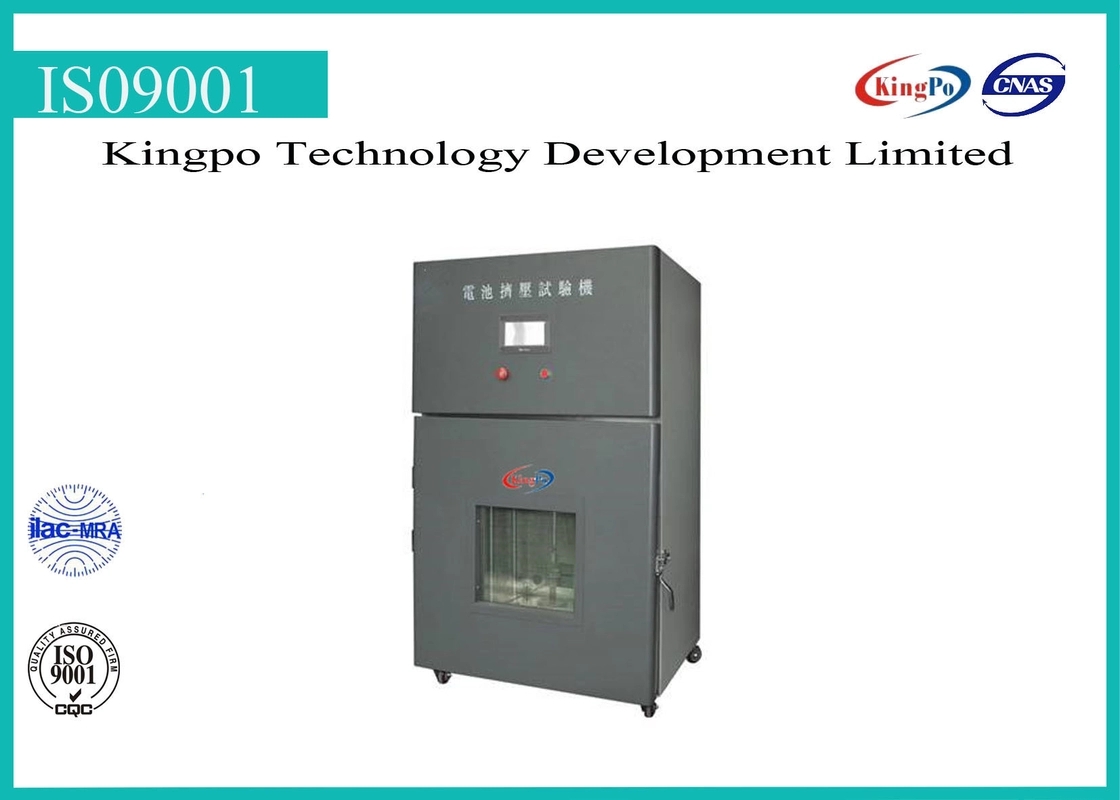

Industrial Battery Tester Battery Burning Tester Easy Operation KP-8105

Battery Burning Tester

Product Type:KP-8105

Test Method:

Put the mesh screen above the burner at a distance of 38.1mm.The mesh screen has 20 holes distributed per 25.4mmDiameter steel wire is 0.43mm.Light the burner and observe the circumstance until explosion and burnout.Time burning procedure out.

Aim:burning resistance

Standard basis:

SJ/T11169-1998 UL 1642:2004(2008)),SJ/T11170-1998,UL 2054:2005(2008)),etc

Specification:

1. Burner:Bunsen burner with internal diameter 9.5mm and approximate length 100mm

2. Burning time:0~ 999.9s±0.1s

3. Hole surface diameter:102mm

4. Mesh screen:20-hole,weaved by 0.43mm(0.017inch) stainless steel wire.

5. Light control:remote wire control with automatic control of process

6. Wire control distance:10 meters without barrier;

7. Height:38mm

8. Tested octagonal mesh screen width:24″(610mm),octagonal,easy to replace and dis-

assemble;Height:12″(305mm)

9. material:aluminum,weaved by aluminum at a diameter of 0.010inch (0.25mm) with 16-18 lattices per inch.

10. Protective chamber:stainless steel.one side of toughened glass with thickness of 50m.Exhaust fan and a reserved outlet for external ventilation kort nozzle

11. Machine volume:750*750*1000mm

Standard Configuration:

1. host machine:1 set

2. controller:1 set

3. octagonal mesh screen(installed):1 set4.test mesh:1 pcs

5. test mesh screen:1 pcs

6. instruction:1

7 .warranty ward:1

8. Product Certificate:1

Industrial Battery Tester Battery Burning Tester Easy Operation KP-8105. Kingpo builds this as a complete test station: chamber or fixture, control system, safety interlocks and data capture, so that the abuse or performance test in the applicable standard can be run and documented without building the rig yourself.

What it does

• Reproduces the condition named in the standard (thermal, mechanical, electrical or environmental)
• Holds the setpoint within the tolerance the standard allows
• Records the run and retains the data for the test report
• Protects the operator: abuse testing is hazardous by design

Specification

How a test run works

1. Confirm the standard, clause and sample preparation your market requires.
2. Set the profile: setpoint, ramp rate, dwell and number of cycles.
3. Load the sample, close the interlocks and start the run.
4. Monitor through the viewing window or camera; do not open the chamber during an abuse test.
5. Export the run data and attach it to the test report.

Buying notes

Battery abuse testing scales with cell size and energy. Tell us the largest cell or pack you will test, the standard you test to, and whether you need the chamber to be explosion-proof — those three answers decide the model more reliably than the product name.

Frequently asked questions

Can the chamber be customised?

Yes. Dimensions, temperature range, penetration fixtures and data interfaces are all configurable.

Is installation included?

We provide installation guidance and commissioning support remotely; on-site service is available.

Is calibration included?

Yes, a calibration certificate is supplied with the unit.
