Medical Test Equipment for IEC Residual Voltage Testing Includes Cables and Calibration Certificate

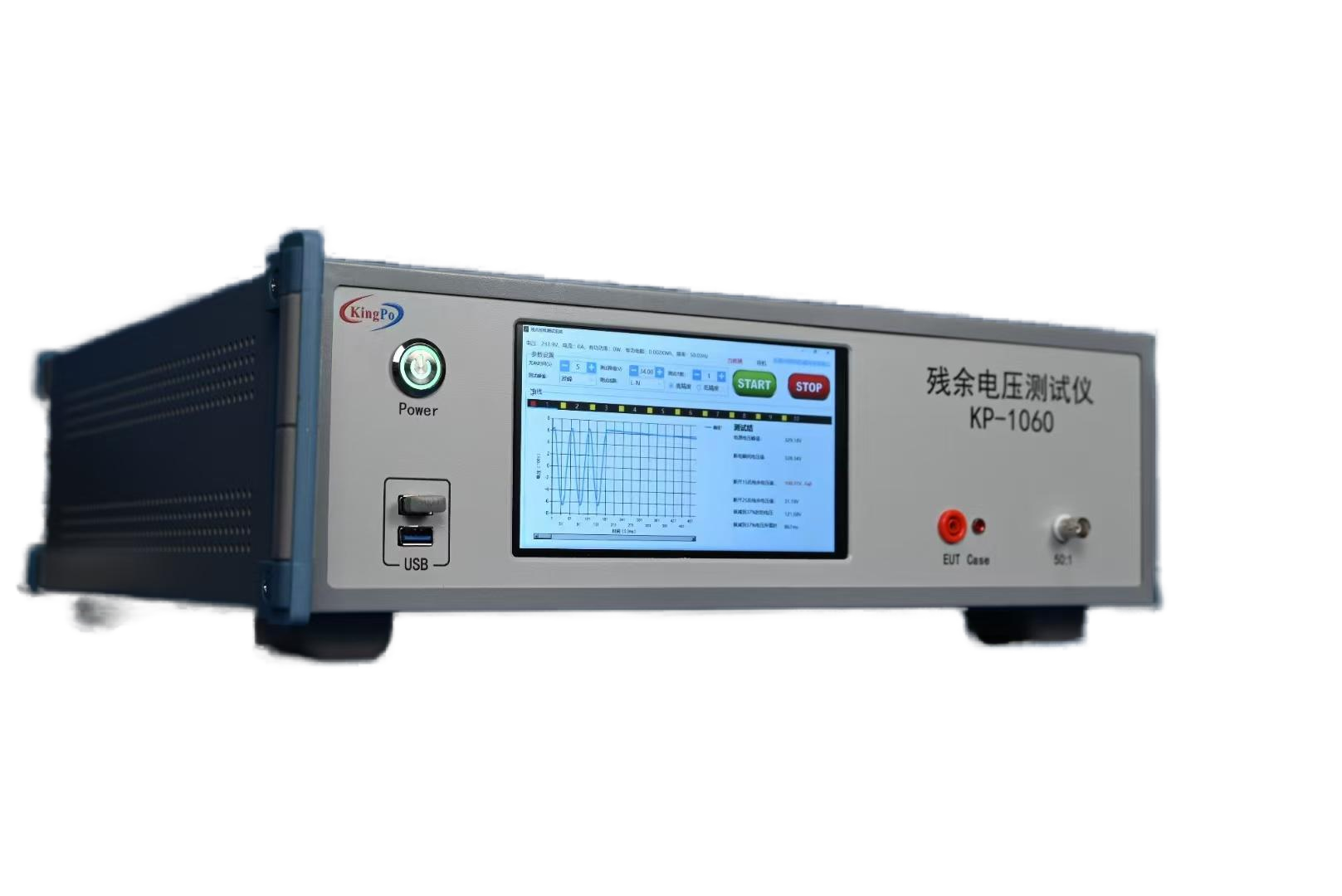

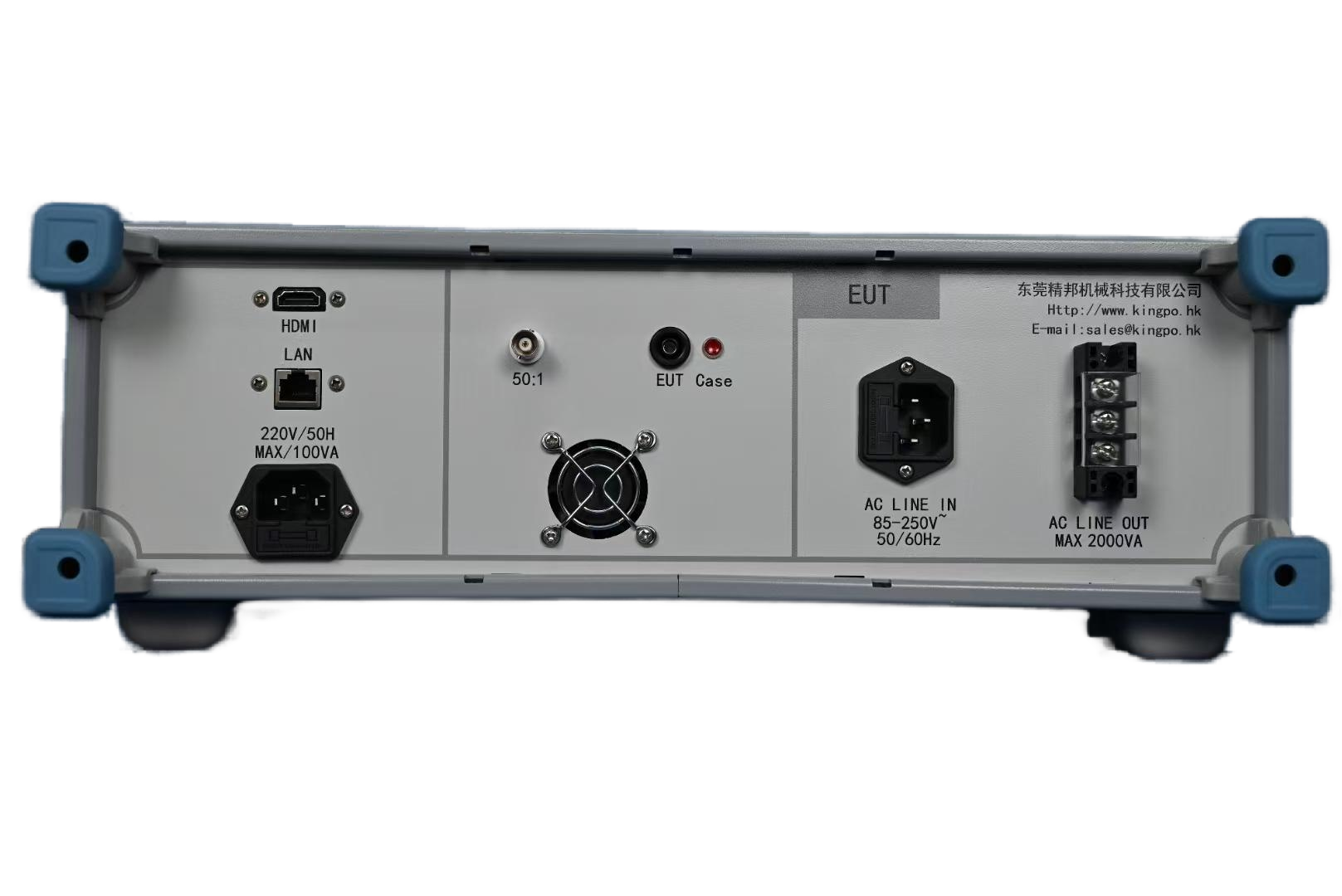

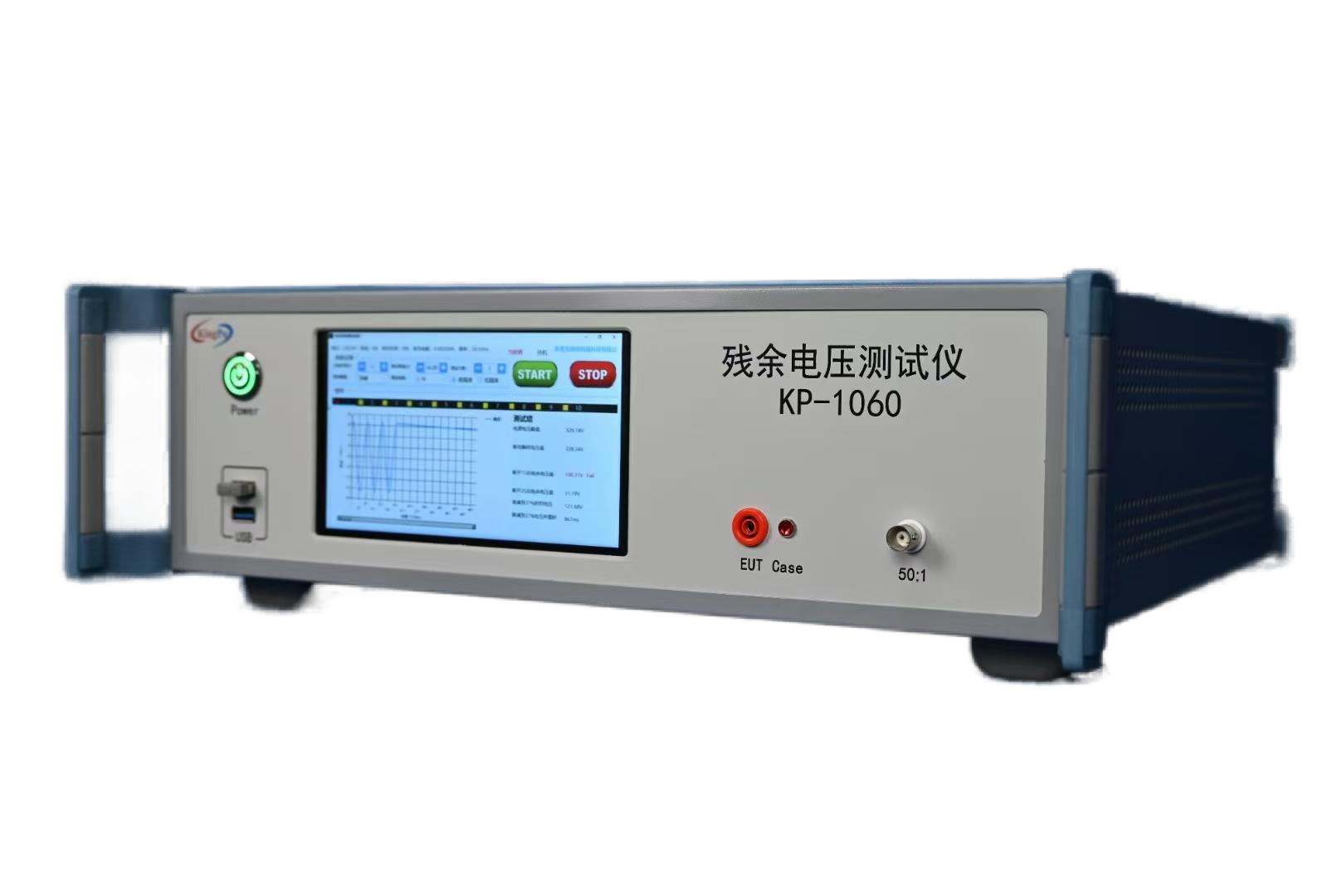

Capacitor Discharge Tester
- Model： KP-1060
capacitor discharge tester
Description
For IEC Testing of residual voltage after plug disconnect.
The KP-1060 disconnects the line at the voltage peak and analyzes results to the requirements of various Standards, allowing quick results.
Scope output for viewing decay waveform.
Presets for IEC 61010-1, IEC62368-1, IEC 60601-1 and IEC60335-1.
Features
Accurate; in accordance with CTL voltage and time specifications.
Disconnects input test voltage at positive or negative peak, normal and reversed polarity
Tests Line-Ground, Line-Neutral and Neutral-Ground.
Micro-controller Technology, one button test, easy setup, LCD display indicates test results.
Ergonomically designed for safety, speed and efficiency.
Designed for product development, production and laboratory use.
Rugged construction that can withstand a 6″ drop with no damage.
Cables, manual and calibration certificate included.
One year warranty.
Technical Parameters:
| Minimum/Maximum Test Voltage | 0-300V |
| Maximum Test Current | 10A |
| Fuse: | 10A, 250V, time delay, 1-¼” x ¼” |
| Probe Impedance | > 100MΩ, < 25pF |
| AC Peak Detection Accuracy | EUT disconnect within 5% of supply voltage peak |
| Test Time Range | 0.50 – 99.0 Seconds |
| Test Time Accuracy | ±1% for times ≥ 1 second, +/- 10ms for < 1 second. |
| Voltage Setting Resolution | 0.1V |
| Voltage Meter Accuracy | ±1.5% of instrument measuring range |
| Frequency | 50-60Hz. |
| Rated Input Voltage | 220V 50/60HZ |
KP -1060 Capacitor Discharge Tester.pdf
Medical Test Equipment for IEC Residual Voltage Testing Includes Cables and Calibration Certificate. IEC 60601-1 — medical electrical equipment — general requirements for basic safety and essential performance. Residual voltage testing verifies that stored energy in the equipment falls to a safe level within the time allowed after disconnection. This unit is built by Kingpo for bench use in a medical electrical safety laboratory, and it is supplied with a calibration certificate.
What it measures
- The quantities named in the applicable clause of IEC 60601-1
- Worst-case supply and load conditions, selected from the front panel or automatically
- Pass/fail against the limits entered by the operator, with the reading retained for the report
Specification
| Standard | IEC 60601-1 |
| Function | Medical Test Equipment for IEC Residual Voltage Testing Includes Cables and Calibration Certificate |
| Control | Programmable test sequences with stored results |
| Power supply | AC 220 V 50/60 Hz (other supplies on request) |
| Calibration | Calibration certificate supplied |
| Made by | Kingpo — built, tested and calibrated in-house |
How a test run works
- Configure the supply condition and the measuring device arrangement the clause requires.
- Connect the equipment under test, including any applied part and earth reference.
- Select or program the sequence: normal condition first, then the single-fault conditions.
- Run, capture the readings and compare them with the allowable values in the standard.
- Store or print the result set; the test report needs every condition, not just the pass.
Buying notes
Confirm three things before ordering: which edition of IEC 60601-1 your market requires, whether you need the single-fault conditions automated, and what load range your products actually present. Sending us the clause numbers you test against is usually faster than comparing model names.
Frequently asked questions
Is the unit calibrated before despatch?
Yes, and we re-calibrate on request.
Can it be supplied for 110 V?
Yes — other supply voltages and plug types are available; tell us the market.
Do you provide the test procedure?
We supply the operating procedure and, where the standard allows, the test sequence pre-programmed.
Related gauges and equipment
Other equipment in the same range:
- KP-2021 Electrosurgery ESU Analyze
- Multi-parameter simulator
- Medical Test Equipment for ECG Electrode Electrical Performance Testing with Multiple Testing Items and Precise Results
- Multifunctional electrocardioencephalogram simulator
- ISO14708-1 Defibrillator Test Pulse Generator
- ISO 23328-1 Conditioning Apparatus For BSF
Send the standard, figure number and quantity to Kingpo technical sales for a quotation and delivery date.
Parameters of the Medical Test Equipment for IEC Residual Voltage Testing Includes Cables and Calibration Certificate. Test conditions and limit values come from IEC 60601-1; the instrument is configured to run them and to record the readings.
| Application | IEC 60601-1 test programme |
| Function | Medical Test Equipment for IEC Residual Voltage Testing Includes Cables and Calibration Certificate |
| Control | Programmable test sequence with stored results |
| Data output | Result storage and report export |
| Power supply | AC 220 V 50/60 Hz (other supply voltages on request) |
| Scope of supply | Instrument, test leads and calibration certificate |
| Calibration | Calibration certificate supplied; re-calibration available |
| Origin | Kingpo — machined, inspected and calibrated in-house |
Custom versions, alternative materials and re-calibration are available. Send the standard, figure number and quantity for a quotation. Tell us the clause numbers you test against and we will confirm the configuration.
