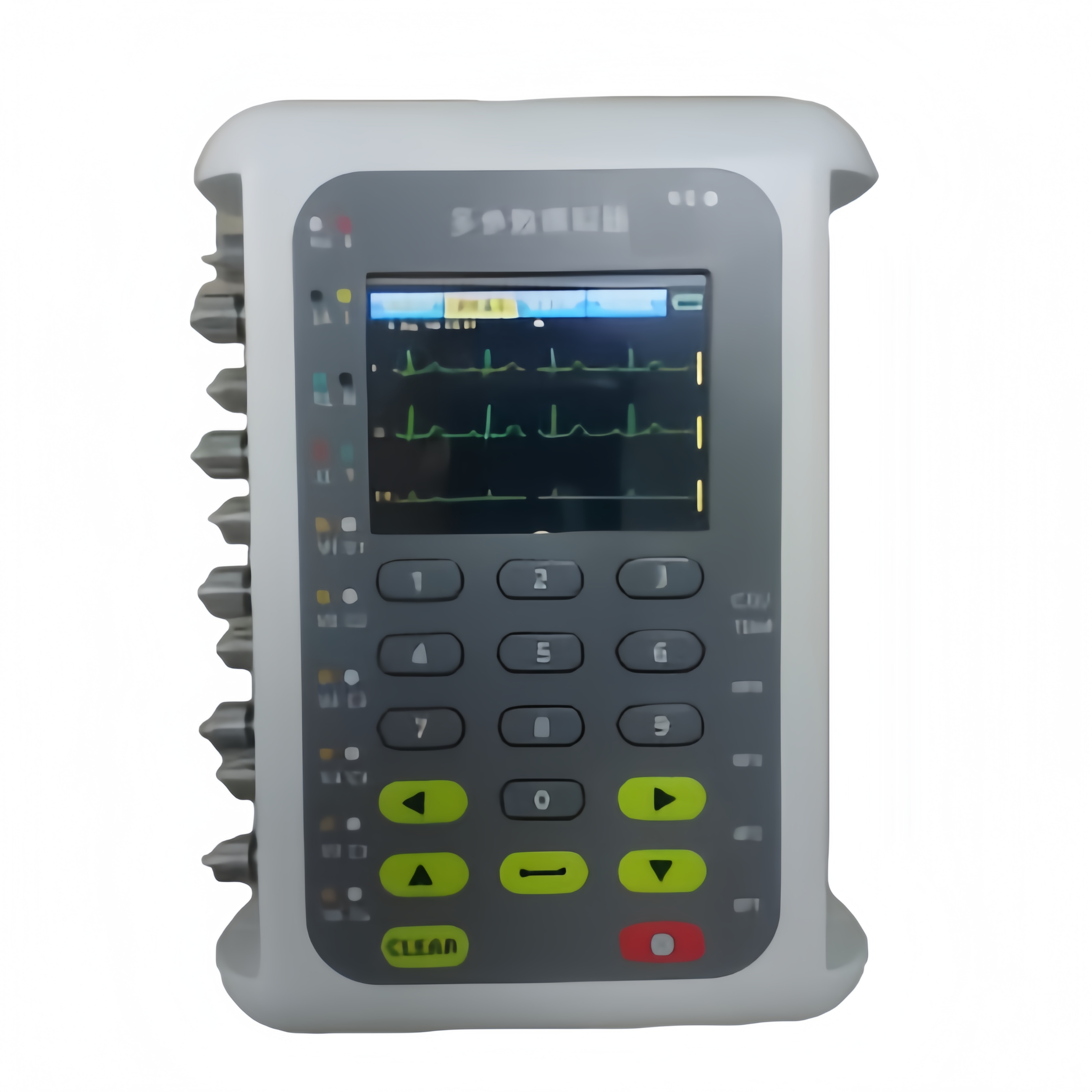

Multi-parameter simulator

Multi-parameter simulator

1. Main features of multi-parameter simulator:

1) ECGS -A can accurately simulate 12-lead ECG , respiration, body temperature and four-channel invasive blood pressure simulation signals;

2) Including 35 types of arrhythmias (including atrial arrhythmias, ventricular arrhythmias, conduction blocks, etc.), normal sinus rhythm (Can adjust the heart rate and voltage amplitude in a wide range), performance detection wave (sine wave, triangle wave, square wave), pacemaker (asynchronous, pacing without capture, pacing without action, dual-chamber pacing, etc.), ST segment rise and fall adjustment;

3) It can generate breathing simulations with different breathing rates, multiple impedance changes, and 12, 22, and 32 seconds of apnea simulation;

4) It can simulate four different body temperatures and four-channel invasive blood pressure (static blood pressure value and dynamic blood pressure waveform);

5) In addition to its own simulation functions, this simulator can also use external ECG data;

6) The touch screen displays the waveform. Slide on the touch screen to switch between the ECG waveform and the respiratory waveform, making it easier for users to observe and compare;

7) The simulator has a function information list, so there is no need to remember the simulation function, and you can select it by double-clicking the list item;

8) The lead socket can be connected to pin-type lead wires and snap-on lead wires.

2. Main technical specifications of multi-parameter simulator:

Parameter name		Multi-parameter simulator ( ECGS -A) Technical Specifications
ECG parameters Signal	Heart rate signal	Heart rate range	0, 15, 20, 25, 30, 40, 60, 80 (default) ), 100, 120, 140, 160, 180, 200, 220, 240, 260, 280, 300, 320, 340, and 350 BPM	The maximum allowable error is ± 1%
		amplitude	0.5, 1.0 (default), 1.5, and 2.0 mV	The maximum error is ± 2%
	Superimposed noise		50 Hz , 60 Hz , EMG, baseline drift, respiration
	ST segment		Rising or falling -0.8 mV to +0.8 mV , 0.1 mV step
	Heart rhythm disorders		There are 35 types in total, including atrial fibrillation, atrial flutter, ventricular premature beats, premature beats, conduction abnormalities, etc.
	Pacing signal	Pacemaker pulse height	2 mV , 4 mV , 6 mV , 8 mV and 10 mV	The maximum error is ±5%
		Pacemaker pulse width	0.1 ms , 0.5 ms , 1 ms , 1.5 ms , 2 ms	The maximum error is ±5%
	ECG performance test try	Square Wave	0.125 Hz and 2.0 Hz
		Pulse Wave	30 BPM , 60 BPM , pulse width 60 ms

Professional Medical Device Simulator Solutions

		Sine Wave		0.5, 0.67, 5, 8, 10, 40, 50, 60 and 100 Hz
		Triangle Wave		2.0 Hz and 2.5 Hz
	YY 1079/ EC 1 3Optional functions	Standard adult ECG		Heart rate 80 BPM , QRS wave width 100 ms , T wave width 180 ms , QRS wave Height 1.0 mV , T wave height 0.4 mV , Q_T interval 350 ms
		Standard pediatric ECG		Heart rate 100 BPM , QRS wave width 60 ms , T wave width 130 ms , QRS wave Height 1.0 mV , T wave height 0.4 mV , Q_T interval 260 ms
		QRS height		0, 0.10, 0.15, 0.5, 1.0, 2.0, 3.0, 4.0, 5.0 mV
		Heart rate		15, 20, 25, 30, 40, 60, 80 , 100, 120, 140, 160, 180, 200, 220, 240, 260, 280, 300, 320, 340, 350 BPM
		QRS complex width		40, 50, 60, 70, 80, 90, 100, 110, 120 ms
		T wave height		0.0, 0.2, 0.4, 0.6 , 0.8, 1.0, 1.2, 1.4, 1.6, 1.8, 2.0 mV
Respiration simulation signal		Lead selection		LL
		rate		0 (no breathing), 15, 20, 30, 40, 60, 80, 100, 120, 150	Error is ±1 BrPM
		Basic impedance		500 Ω , 1000 Ω (default), 1500 Ω、 2000 Ω	The maximum error is ±3%
		Respiratory impedance variable		0.2, 0.5 (default), 1.0, 3.0, 4.0, 5.0
		No breathing		12s, 22s, 32s
Invasive blood pressure analog signal		aisle		4 independent channels
		Static water flat	BP 1	0, 80, 160, 240, 320 and 400 mmHg	The maximum allowable error is ± (Indicated value 1%+1 mmHg )
			BP 2	0, 50, 100, 150, 200 and 250 mmHg
			BP 3	0, 20, 40, 60, 80 and 100 mmHg
			BP 4	Follow BP 3 static pressure levels
		Channel selection select	Channel 1, 2 and 3	Arterial 120/80, radial artery 120/80, left ventricle 120/00, right ventricle 25/00
			Channels 2 and 3	Pulmonary artery 25/10, left atrium 14/4, Central vein 15/10
			Channel 4	/
		Waveform switching		Automatic Swan - Ganz (switching waveform every 15 seconds ): RA ( CVP ), RV , PA , PAW
				Manual Swan - Ganz Press ENTER to switch waveforms.
Body temperature analog signal		Measuring range		0℃(32.F ) ,24℃ (75. F ), 37℃(98.6 . F), 40℃ ( 104.F )	± 0.1℃（excluding body Temperature cable error)
