300W Battery Testing Machine For For Charging / Discharging / Voltage Testing
300W Battery Testing Machine For For Charging / Discharging / Voltage Testing
- Model：
BTS-60V5A Standard Power Battery Testing System , Battery Continuous charge ,Battery Forced Discharge
Technical Parameter:
| BTS-60V5A Battery tester | |||||||||||||
| Model Number: | BTS- | 60 | V | 5 | A | Battery tester | Material code: | CT-4016 | -60V5A | - | NTA | - | P |
| items | Parameter | ||||||||||||
| Input power | AC 380V ±10% / 60Hz | ||||||||||||
| Input active power | 6278 | W | |||||||||||
| resolution ratio | AD:16bit；DA:16bit | ||||||||||||
| Input impedance | ≥100kΩ | ||||||||||||
| voltage | Constant voltage range | 0.3V~60V | |||||||||||
| Minimum discharge voltage | 3V | ||||||||||||
| accuracy | ± 0.1% of FS | ||||||||||||
| stability | ± 0.1% of FS | ||||||||||||
| current | Output range/channel | 0.025A~5A | |||||||||||
| accuracy | ± 0.1% of FS | ||||||||||||
| Constant voltage cut-off current | 0.01A | ||||||||||||
| stability | ± 0.1% of FS | ||||||||||||
| Power | Output range/channel | 300W | |||||||||||
| stability | ±0.2% of FS | ||||||||||||
| time | Current response time | maximum current rising time20ms | |||||||||||
| working step time range | ≤(365*24)h/working step | ||||||||||||
| Data record | Record data conditions | Minimum time interval:100ms | |||||||||||
| Minimum voltage interval:120mV | |||||||||||||
| Minimum current interval:10mA | |||||||||||||
| Record frequency | 10Hz | ||||||||||||
| Charge | Charge mode | constant-current charge,constant-voltage charge,constant voltage and current charge | |||||||||||
| cut-off conditions | Voltage,current,relative time,capacity,-△V | ||||||||||||
| discharge | Discharge mode | constant current discharge, constant watt discharge | |||||||||||
| cut-off conditions | Voltage,current,relative time,capacity,-△V | ||||||||||||
| Impulse mode | Charge | Constant current,Constant power | |||||||||||
| Discharge | Constant current,Constant power | ||||||||||||
| Minimum impulse width | 500ms | ||||||||||||
| Number of pulses | one single pulse working step can support 32 different pulses | ||||||||||||
| Continuous switch of charge and discharge | one pulse working step can continuously switch from charge to discharge | ||||||||||||
| cut-off conditions | Voltage,relative time | ||||||||||||
| DCIR test | Support customized picking up point to perform DCIR calculation | ||||||||||||
| cycle | Loop test range | 1~65535 times | |||||||||||
| Single cycle working steps | 254 | ||||||||||||
| Loop nest | Nested loop function,max 3 layers | ||||||||||||
| Protection | ● Data Protection | ||||||||||||
| ● off-line test | |||||||||||||
| ● security conditions can be set including voltage upper/lower limit,current upper/lower limit and delay time | |||||||||||||
| ●anti reverse connection | |||||||||||||
| IP Protection Class | IP20 | ||||||||||||
| Channel feature | constant current and voltage source ;double closed-loop; | ||||||||||||
| Channel control mode | independent | ||||||||||||
| Current/voltage detection sampling | four-wire connection | ||||||||||||
| noise | <85dB | ||||||||||||
| data base | MySQL centralized management of test datas | ||||||||||||
| upper computer communication mode | TCP/IP | ||||||||||||
| Server disk Configuration | 500GB | ||||||||||||
| Data output mode | EXCEL 2003,2010,TXT | ||||||||||||
| Server operating system | Windows 7 | ||||||||||||
| communication interface | ethernet | ||||||||||||
| Working environment requirement | |||||||||||||
| item | parameter | ||||||||||||
| working temp. range | 0℃~40℃(within25±10℃,ensured accuracy:precision drift0.005% of FS /℃) | ||||||||||||
| Storage temp. range | -10℃~50℃ | ||||||||||||
| Working environment relative humidity range | ≤70% RH(no water vapor condensation) | ||||||||||||
| Storage environment relative humidity range | ≤80% RH(no water vapor condensation) | ||||||||||||
| Clamp specification and size | |||||||||||||
| item | parameter | ||||||||||||
| Clamp type | Polymer clamp | ||||||||||||
| Pic |  |  |  | ||||||||||
| Alligator clamp | Polymer clamp | cable feet clamp | |||||||||||
| Pictures are for reference only,real objects shall prevail.Choose one | |||||||||||||
| Cabinet size/unit(W*D*H)(mm) | 30U(24”),730*600*1520 | ||||||||||||

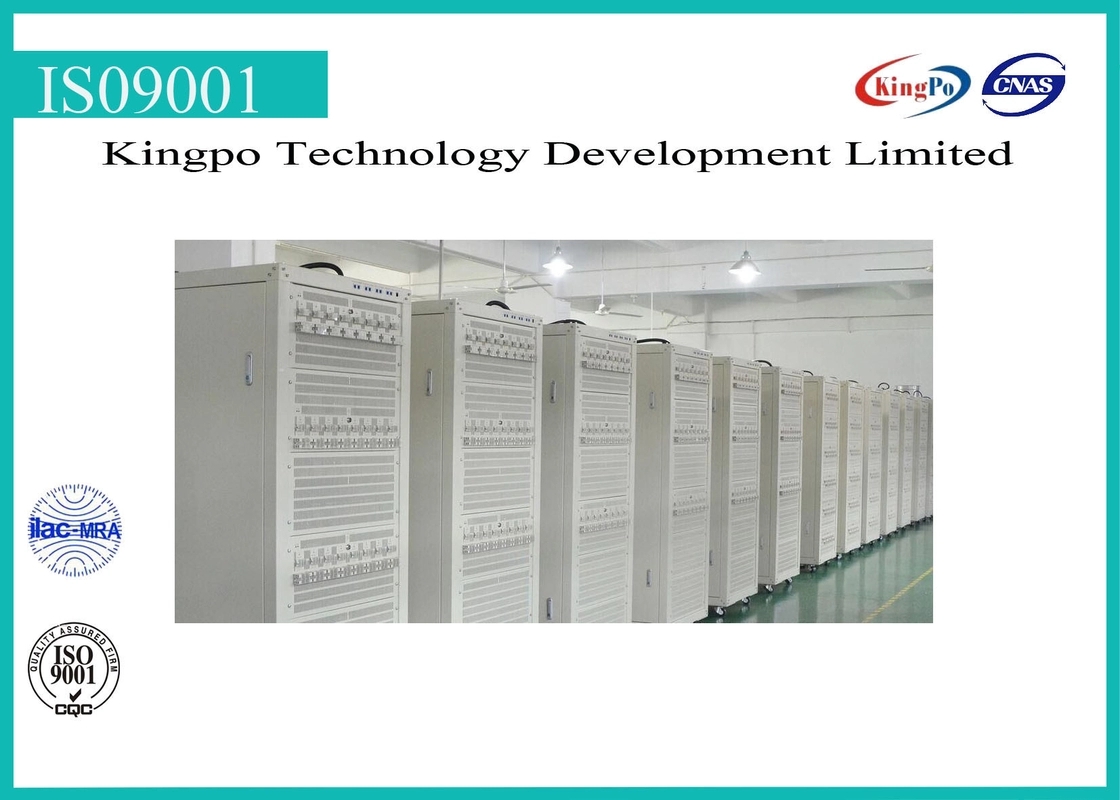

| Equipment pic | |||||||||||||
| Pictures are for reference only,real objects shall prevail. | |||||||||||||
| Auxiliary channel | type | Temperature,voltage | |||||||||||
| Temp. range | -25℃~110℃ | ||||||||||||
| Temp. range | ±1℃ | ||||||||||||
| Temp. resolution ratio | 0.1℃ | ||||||||||||
| Voltage range | -5V~5V | ||||||||||||
| Voltage accuracy | ± 0.1% of FS | ||||||||||||
| Available auxiliary temp.channel/channel | customized(248 channel at most) | ||||||||||||
| Available auxiliary voltage channel/channel | customized(248 channel at most) | ||||||||||||
| Protaction condition of Auxiliary channel | ● security conditions of Auxiliary channel can be set including temperature upper/lower limit,voltage upper/lower limit and delay time,voltage difference of single cell | ||||||||||||
| Note:incompatible with battery that has protection plate with soft start function. | |||||||||||||
