KP-5067-C Battery Testing Services , Battery Compression Tester PLC Control

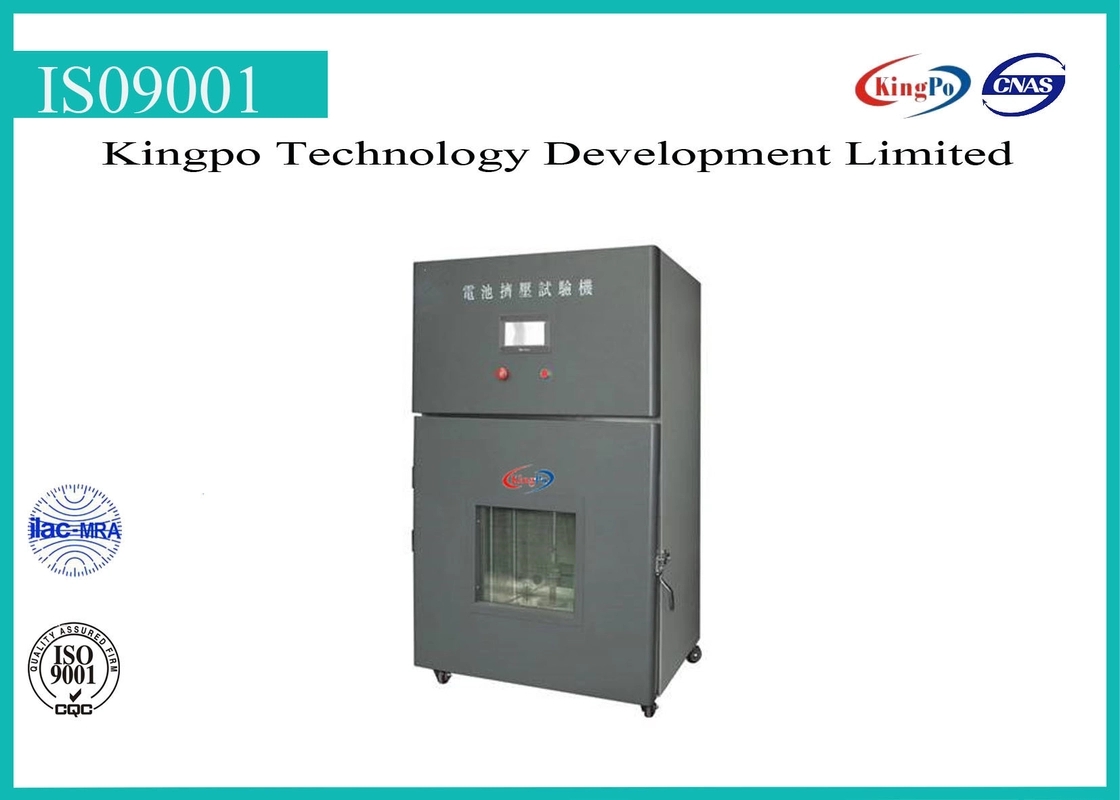

Battery Compression Tester(PLC control)

Standard: UN38.3( revised edition), UL1642, UL2054, QC/T 743-2006(monomer battery test), QC/T 744-2006(monomer battery test), GB 8897.4-2002, IEC60086-4 , SN/T1414, SN/T1413 , YD1628, GJB2374, QB/T2052, IEC62133-2012, SAE-J2464,etc and any other test approaches needed.

Introduction of Test Methods:

Make the tested battery compressed amidst two planes,then exert about 13kN extrusion force through hydraulic system,which is rising continuously.Meet any one of the following conditions during the test(the first to reach shall prevail):

1, The extrusion force reaches 13kN.

2, The voltage drops at least 100mV(or 1/3).

3, The amout of deformation is more than 50% of its original size(or 1/10).

For cylindrical battery,it should be compressed from the direction of being perpendicular to the vertical axis.

For prismatic or bag-shaped one,the compression should be exerted to one of the two axes which are perpendicular to the long axis and then compress to another axis.

For button cell and coin-cell battery,compress its plane.Each tested one can only be compressed once.

Purpose: apply to stimulate the occasions when various batteries are used,transported,

in storage and in household waste disposal,to what extent could it be compressed.The battery will be qualified without disintegration,crack or fire.

Specifications:

Power Transmission Mode:hydraulic transmission

Extrusion direction:For cylindrical battery,it should be compressed from the direction of being perpendicular to the vertical axis.For prismatic or bag-shaped one,both its long and narow side should be tested.Relative to the first trial,revolve 90 degrees around the long axis before starting the second trial.For button cell and coin-cell battery,compress its plane.Each tested one can only be compressed once

Monomer battery extrusion head(plate):round extruded plate,easy to assemble and replace(diameter:15cm)

Extrusion level:Once meeting any one of the following conditions during the test(the first to reach shall prevail),the instrument can be depressurized and finish the test.

1, The extrusion force reaches 13kN.

2, The voltage drops at least 100mV(or 1/3).

3, The amout of deformation is more than 50% of its original size(or 1/10).

Maximum pressure range:generally 13kN(1kN~5kN adjustable)

Pressure precision:0.001N Sensor resolution:1/100,000;

Power display:High-precision pressure sensors and then display on computer monitor

Control Methods:Testing softwares and then display on computer monitor(customers’self-provided computer)

Unit Conversion:kg,N,1b

Stroke resolution:0.005mm

Sampling Rate:100 times per second

Sensor resolution:1/100,000

Compression space:300*300*200mm(width*height*depth)

Machine extrusion stroke:200mm

Delayed funtion:0-999min (set test time optionally)

Machine weight:about 220kg

Machine size:760x630x1850mm

Instrument structure:chest structure,interior SUS#304 stainless steel,affix 1/3 teflon tape,high-temperature resistant,anticorrosive.

Exterior:cold-rolled steel sheet with baking varnish,its door has anti-explosion watching window(size:200*200mm),which is convenient for observing the internal testing situation.

Power supply:AC380V,50~60HZ,10A

Compressional software key features:

1, deal with the operation setup on dialog window,programme table mode freely,record testing data throughout and provide a complete program of preservation,comparison and tracking.

2, Compress test card, four channels (including power, displacement (stroke), voltage channels, direct monitoring of battery voltage, and issue instructions to the device)

3, Voltage collection and control:It has a function which we can control extrusion test by voltage collection throughout the test.At the same time,the voltage will change.Set a defined voltage in test system(generally 1/3 of battery original voltage).With output signals,the test will automatically finish at a preset point.

4, Test conditions:power,displacement and voltage determination are set in computer.Keep the control system away from the test area with 5-meter cable distance.

5, Store all the testing method in a seperate file,which users can easily add and modify and share across different instruments.

6, Display names of testing datas with custom modification and save it in the respective testing method file to satisfy different customers’ need.

7, Edit testing step.Functions likes of logical size value jumps,timing jumps,loop jumps,etc.

8, Freely edit test projects,which users can add,delete and modify for its custom attribute.Table shows control.

9, Freely set up the curve number and match x and y axes up to 7 kinds.

10, Functions like zeroing test and preload can meet needs of different industries and tests.Report adopts WORD report template.Like”?xxx?”,between two question marks is an auto-populate data.Table image program will automatically adopt the format of tempalte to replace,which is more freeform.

11, Test interface is concise;mutilanguage support,standard English,Chinese simplified,Chinese traditional.The language pack which has 10 kinds at most is located in “language” catalogue.Users can translate it,including instructions.

12, A wide variety of hardware interfaces like serial port,network interface,USB measurement and control card.

Main interface introduction of compression test software(power,displacement,vol-

tage):

1, 4 concise areas(curve area,real-time data collection,control panel and test data);The system shows power,displacement and voltage in test interface.

2, Data area can be hidden.

3, Test setup.Test option and reports.Shift through table control.

4, Test setup contents;sample information,control scheme,test completion criterion,

Etc.

5, Movement speed can be set up quickly in test panel(speed required tests);

6, Control machine operation with shortcut key.

7, Optionally delete the data in database.

8, Auto-caculate the data in database,including maximum,minimun,average,stan-

Dard deviation,variation coeffciient;

9, Voltage acquisition frequency:110 times per second

10, Voltage acquisition range:0-10(DC voltage)

11, Voltage accuracy and resolution:1/200,000

12, Voltage display accuracy:0.05mv

Equipment structure features:

1, Internal Material:stainless steel(SUS#304 1.0mm thick)

External Material:steel sheet baking varnish

2, Door:single and double-layer door,single-window,open on the left,cold hand lock;

3, Viewing window:Square laminated toughened glass,size:200x200mm;

4,Power-oriented column:displacement encoder and double guide rod structure,high precision displacement for convenient control of extrusion stroke.

5, Machine pulley: 4 universal pulleys(adjust position) and high strength bolt(fix position)

6, Exhaust fan on the back side:Ф150mm 30W,a reserved outlet for connecting exhaust dust and ventilation kort nozzle.

Driving system

1, San Zheng high-end hydraulic pressure system;

2, Stroke:200mm

3, Selective Accessories:pressure reducing governor valves,magnetic directional valve,filter,overflow valve;

Supportive control system

1, Rack material:chrome high performance high-carbon steel

2, Tested rack stroke:200mm;

3, Protection sensor:magnetic limit switch;

4, Operation mode:constant operation

Secure protection system

1, Over Voltage Protection(OVP):pressure range for preventing sensor and driving machine from damage in case of over pressure;

2, Under phase and reverse phase protection switch;

3, Stroke limit protection;

4, Wire fuses OCP;

5, Overload cut-out;

Machine opertioing conditions

1, Environmental temperature:25±5℃

2, Environmental Humidity:≤65±5%R.H

Key accessory list and standard configuration

Key accessory design specification

1, Electric part

Control Circuit:control sensor’s work,provide closed circuit reaction,stroke switch,in-

Terpretation of sensor’s output signal,excess limit stroke,oil tank protection;

Sensor:caculation of extrusion displacement and linear speed based on pulse signal.

2, Machanical part

Rack:Two parts of transmission support consist of chrome high performance high-carbon steel.Tested stroke:200mm

Equipment composition and spare parts
