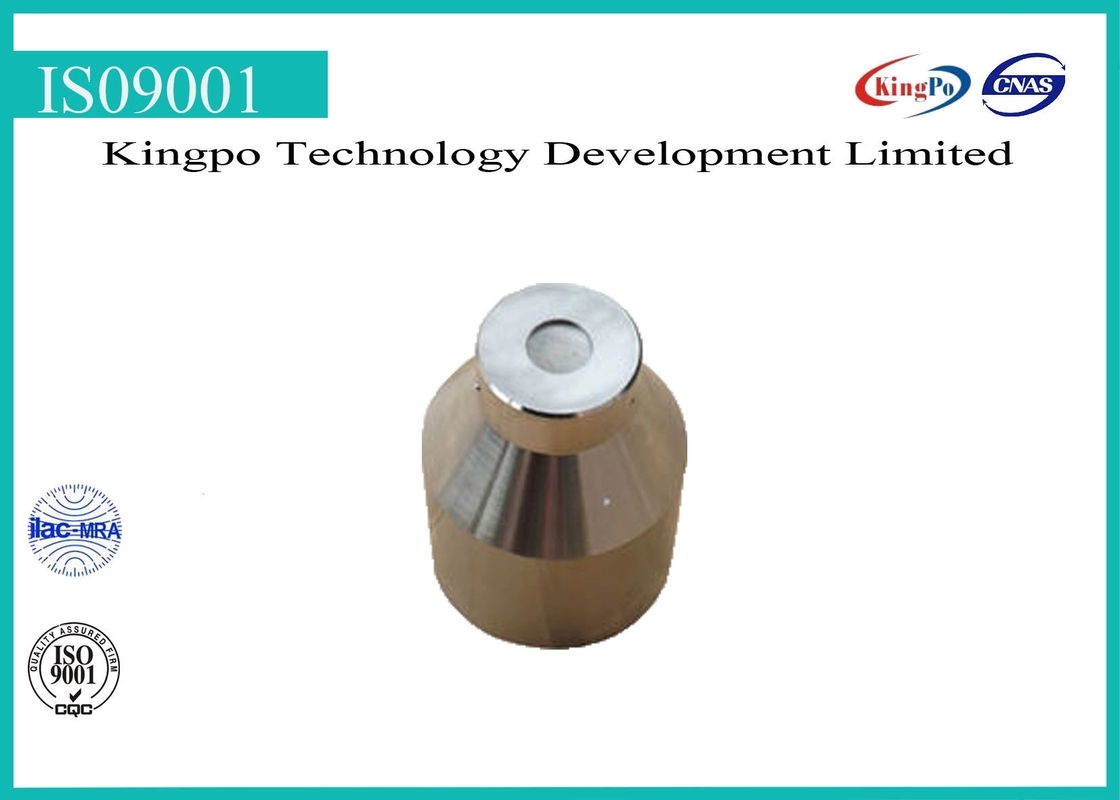

Go No Go Thread Gauge For Testing Pretection Against Accidental Contact E26d

E26d Lamp Cap Gauge | Gauge For Caps On Finished Lamps For Testing Pretection Against Accidental Contact E26d

PURPOSE:

To check protection against accidental contact of caps E26d on finished lamps.

TESTING:

When the lamp has been pushed into the gauge as far as it will go with the side solder of the cap located in the recess provided, surface W of the plunger shall not project beyond surface V.

Related gauges:

Go No Go Thread Gauge For Testing Pretection Against Accidental Contact E26d. Kingpo supplies this as a calibrated laboratory item, machined or assembled in-house and inspected before despatch. It is built for the measurement named in the applicable standard, and it ships with a calibration certificate so it can be put straight into service.

What it is used for

• The measurement or dimensional check named in the applicable standard
• Repeatable set-up so results are comparable between runs and laboratories
• Documented output for the test report

Specification

Typical applications

• Third-party and notified-body testing, where the item has to be traceable to the standard
• Manufacturer incoming inspection and production release testing
• Design verification during development, before the protocol is frozen

How it is used

1. Confirm the standard and clause you are testing against.
2. Set the item up in the configuration the standard shows.
3. Take the reading or run the sequence the standard specifies.
4. Record the result with the sample identification and the calibration reference.

Care and calibration

Treat the item as an inspection tool rather than a production tool. Keep it clean and dry, store it protected, and re-calibrate on a cycle driven by how often it is used. Recording the item identity alongside every result is what makes a test report defensible later.

Buying notes

Send us the standard, the figure or clause number and the quantity. That is enough for us to quote and to tell you whether this is the right item for your protocol.

Frequently asked questions

Is a calibration certificate included?

Yes.

Can it be made to a customer drawing?

Yes — send the drawing and we will quote against it.

Which edition of the standard does it conform to?

Tell us the edition you are testing to and we will confirm before you order; editions differ and the dimensional limits are not always identical.

Do you ship spares or replacement parts?

Yes, for items we have built — send the item reference and we will identify the part.

Related gauges and equipment

Other equipment in the same range:

• E27-7006-22C-1 Gauge I For Checking Side-Contact Resiliency In Lampholders
• E14 lamp cap gauge - Not go gauge for E14 caps on finished lamps - 7006-28B-1
• E40 Lamp cap gauge - Go gauges for screw threads of lampholders E40 - 7006-25-7
• E40 Lamp cap gauge - Plug gauge for lampholders for testing protection against accidental contact E40 - 7006-24-3
• IEC 60968-Figure 3 Test Arrangement For Bending Moment Imparted By The Lamp At The Lampholder
• E40 Lamp Cap Gauge For Testing Contact - Making In Lampholders E40-7006-23-3

Send the standard, figure number and quantity to Kingpo technical sales for a quotation and delivery date.
