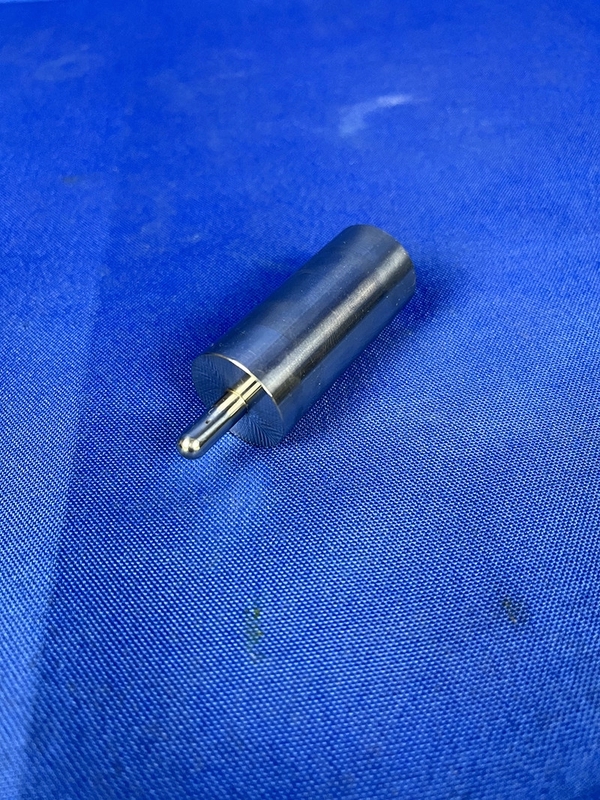

UL 1017 clause 5.19.4.1 Figure 9 Impactor for testing mechanical strength for brush caps and switch actuator

Model：

Online Inquiry

UL 1017 clause 5.19.4.1 Figure 9 Impactor for testing mechanical strength for brush caps and switch actuator

test purpose:testing mechanical strength for brush caps and switch actuator

head radius:3.175mm

mass: 225g

material:solid steel

UL 1017 clause 5.19.4.1 Figure 9 Impactor for testing mechanical strength for brush caps and switch actuator 0

label: UL 1017 clause 5.19.4.1 Figure 9 Impactor for testing mechanical strength for brush caps and switch actuator
