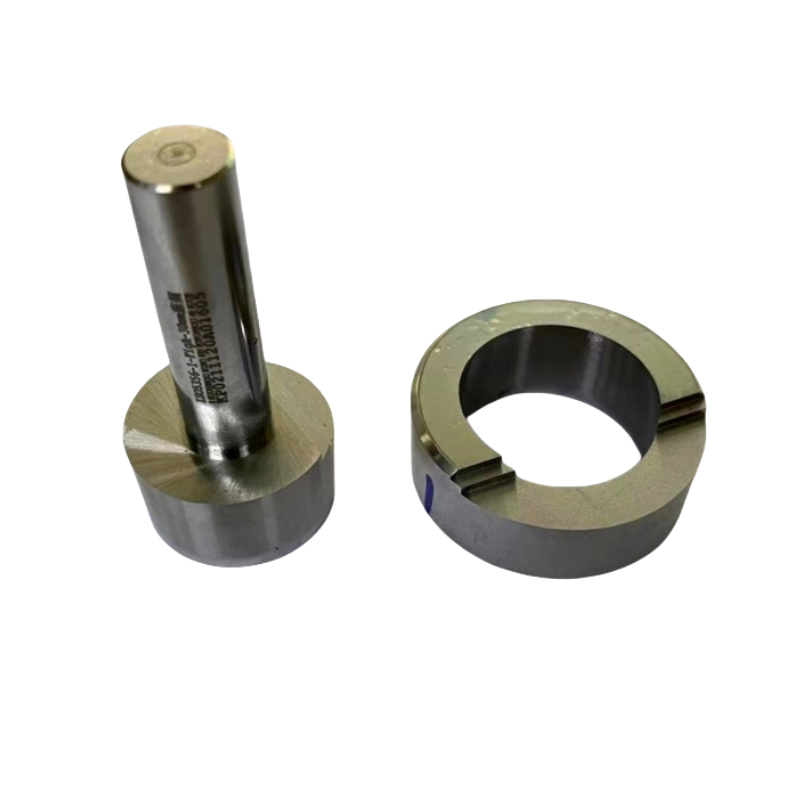

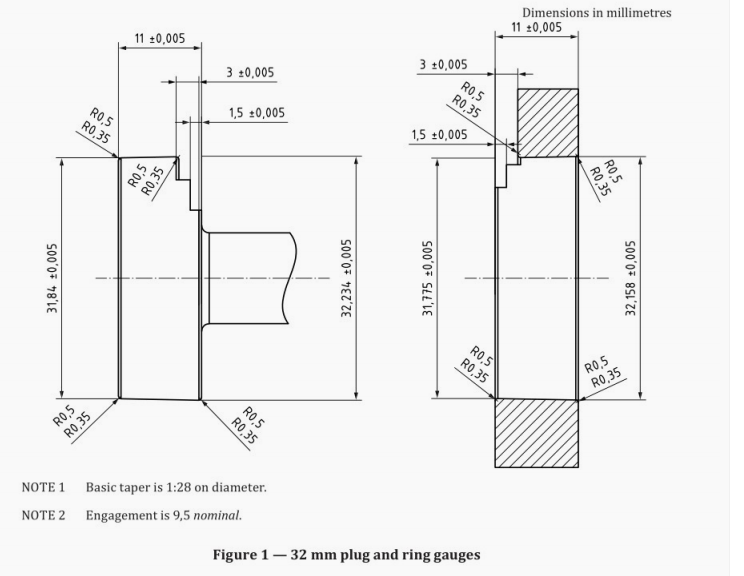

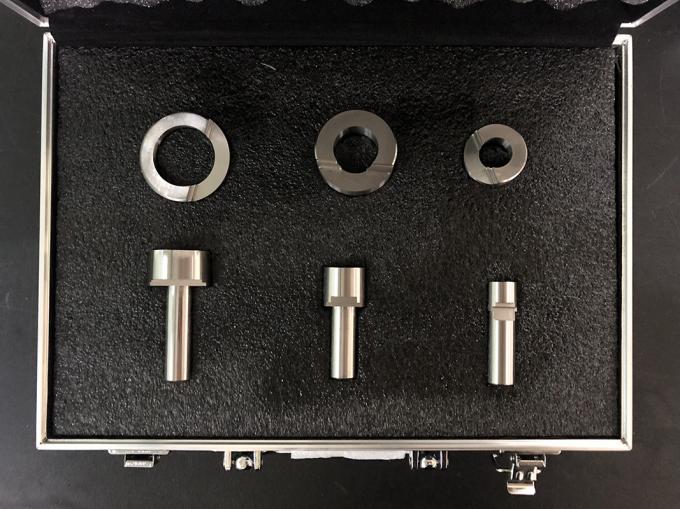

IS0 10651-4 Figure 1 32 mm plug and ring gauges

IS0 10651-4 Figure 1 32 mm plug and ring gauges

lf a conical connector is provided for attachment of a bag refill valve, it shall be a 32 mm socket connectorwith a 1:28 taper.

Check conformance by engaging the plug gauge of Figure 1 to the socket connector while applying anaxial force of (50 + 5) N and simultaneously rotating the connector (20 ± 5)°, Confirm that the leadingedge of the connector lies between the minimum and maximum diameter steps of the plug test gauge.

NOTE 2The ring gauge of Figure 1 can be similarly used to check the cone connector of a bag refill valve.
