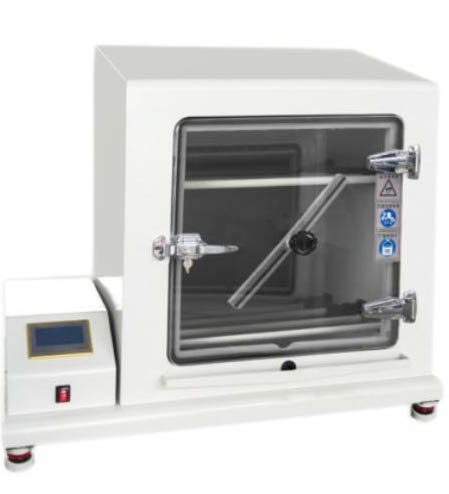

Condensation water test chamber
Product DescriptionCondensation test chamber can be integrated low temperature, high temperature, humidity in one test, can do 100% humidity test, is an essential test equipment for quality inspection
- Model：
Product Description
Condensation test chamber can be integrated low temperature, high temperature, humidity in one test, can do 100% humidity test, is an essential test equipment for quality inspection colleges, electrical and electronic, automobile and motorcycle and other spare parts industry. This equipment is manufactured in strict accordance with ISO6270-2 standard, using European technology, advanced technology, professional design, long service life, to ensure the accuracy of the parameters, the overall parameters to reach international indicators of similar products
Product features
1. The box material is made of reinforced polyvinyl resin, acid-resistant, corrosion-resistant, easy to clean
2. The door has a large view of insulation vacuum tempered glass, and is equipped with a wiper, which can be rotated 360°, so that users can easily observe the sample test process.
3. The chamber adopts European slope design to prevent condensation from attaching to the sample, and the sample rack is made of anti-corrosion, anti-deformation and anti-humidity glass fiber material, and the sample rack can be adjusted up and down as needed.
4. Large LCD touch programmable temperature controller, intelligent human-machine interface, easy to operate.
5. Adopt microcomputer P1.D controller with over-temperature deviation protection and digital display. D controller with over-temperature deviation protection and digital display. The unique flat and constant temperature control can carry out high precision and high stability temperature control.
6. With a special maintenance interface, it can automatically prompt the user to set the temperature and humidity time parameters correctly.
Specification table
| Model | QLN-300 | QLN-500 | QLN-1000 | QLN-2000 |
| Inner box size (W*D*H) mm | 750x510x780 | 1100x675x650 | 1380x980x1320 | 2130x980x1320 |
| Outer box size (W*D*H) mm | 950x680x1020 | 1680x880x1105 | 2100x1208x1725 | 2808x1208x1725 |
| Placement form | Desktop / Tabletop | Floor-standing | ||
| Volume(L) | 300 | 500 | 1000 | 2000 |
| Heating power | 800W | 1000W | 1500W | 2200W |
| Temperature and humidity range | 40~60℃/100%R.H | |||
| Temperature fluctuation degree | ±0.5°C | |||
| Temperature uniformity | ±3.0°C | |||
| Temperature and humidity deviation | ≤±2.0℃/±3%RH | |||
| Protection devices | Safe and reliable grounding protection device, heater short circuit, overload protection, etc. | |||
| Standard | 2 standard sample holders, product certificates, manuals, warranty cards | |||
FAQ
Q :How to provide after sales service?
A:If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
You can contact our local service center in overseas market to get service and product.
Q :Do you have an agent?
A:Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.
Q :Can we come to your factory to study and train?
A:Welcome to our factory for study and training, we provide this service free of charge.
Q :Can you send engineers to our company?
A:Yes, sure. We will communicate in advance to facilitate the bringing of tools and components
Q :Can I install and debug calibration on site?
A :Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.
Q :What are the modes of transportation?
A :Air, sea, rail, multimodal transport.
Q :What is the packaging?
A :Standard export wooden box packaging, solid and firm.
Q :How do you calibrate the equipment?
A :We have our own calibration and third-party calibration such as ISO17025
Q: Is there a door to door service?
A :Yes, there is door to door service. We will arrange a one-stop service.
Q :What are the payment methods?
A Payment methods are T/T, Paypal, L/C, VISA
Q:How long is the warranty period?
A :Warranty period is 3 years, free service for life
Q :Can you ship quickly?
A :Our delivery period is 3-21 days. Some of the hot-selling equipments are in stock and can be shipped within 1-3 days.
