Product introductionThree comprehensive test chamber is simulated high temperature, low temperature, high and low temperature cycle and constant damp heat and alternating damp heat test, at the same t
Product introduction

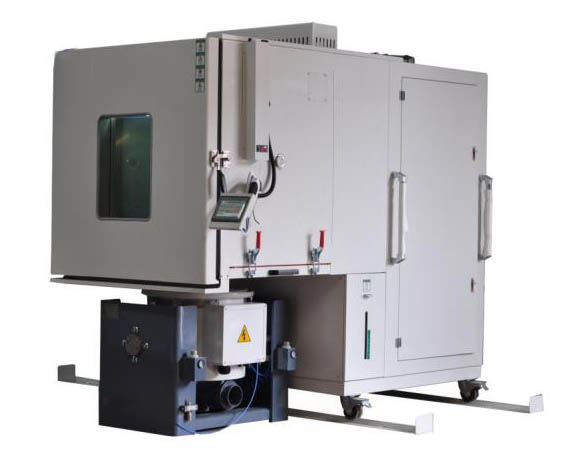

Three comprehensive test chamber is simulated high temperature, low temperature, high and low temperature cycle and constant damp heat and alternating damp heat test, at the same time, after mating with the shaking table, can realize the temperature, humidity, vibration three factors of the comprehensive test instrumentation. Generally applicable to aerospace, aviation, petroleum, chemical, electronics, communications and other scientific research and production units to test products, materials in the transport and actual use of the process of temperature, humidity and vibration compound environmental changes in the adaptability of the product to expose the defects, is the development of new products, prototype testing, product qualification test process essential and important test means.
Product features
One machine, combined with temperature, humidity vibration in one, the test is more convenient.
autonomous technology, large touch controller, can be connected to the network remote monitoring;
High-end quality, the test chamber using imported brand accessories, to protect the overall performance of the equipment.
Uniform moisture control using wind volume and wind speed automatic adjustment, adjustment processing temperature controller technology, to achieve linear temperature control.
High intelligence, support for computer connection, USB data storage, curve export and other functions.
Specification table
| Inner Dimension(WxHx D)cm | 70x85x70 | 100x100x100 |
| Outer Dimension(WxH x D)cm | Outer size and shaker table size are customized according to actual requirements | |
| Temperature range | Low temperature:-70℃,-40℃,-20℃,0℃,room temperature;High temperature:-100℃,+150℃) | |
| Humidity range | 20%~98%R.H or 10%~98%RH can be non-standard customized test conditions | |
| Temperature and humidity stability | ±0.5℃,±2% | |
| Temperature and humidity uniformity | ±1℃,±2% | |
| Temperature and humidity deviation | ≤±2℃,±3%RH | |
| Heating up time | Heating up about 4℃/min | |
| Cooling time | Cooling about 1 ℃ / min (can be non-standard custom: rapid temperature change 5 ℃ ~ 25 ℃ / min, with linear, non-linear adjustable) | |
| Inner box material | SUS#304 stainless steel sheet | |
| Outer box material | Powder baking paint for cold tie steel sheets | |
| Insulation material | Glass wool, foamed polyurethane | |
| Refrigeration Systems | France (Taikang) fully hermetic compressor set or Germany (BITZER) semi-hermetic high efficiency compressor | |
| Cooling method | Air-cooled or water-cooled | |
| Refrigerant | Single-stage primary R-404A,compound secondary R-23 | |
| Heating and humidifying system | Stainless steel finned heating tube heating air method. Stainless steel sheath type electric steam generation method (characteristics: excellent sealing, effectively prevent steam loss) | |
| Protection devices | No fuse switch, compressor overload protection switch, refrigerant high and low pressure protection switch, over humidity and over temperature protection switch, fuse, fault warning system | |
