Temperature and humidity curveTechnical Advantages1. cold balance technology, by controlling the flow of refrigerant to achieve temperature stability (most of the hot and cold balance technology on th
Temperature and humidity curve
Technical Advantages
1. cold balance technology, by controlling the flow of refrigerant to achieve temperature stability (most of the hot and cold balance technology on the market).
2. No need to defrost in a long time (50 times defrost once)
3. Above the same power to save more than 30% power
Product introduction:

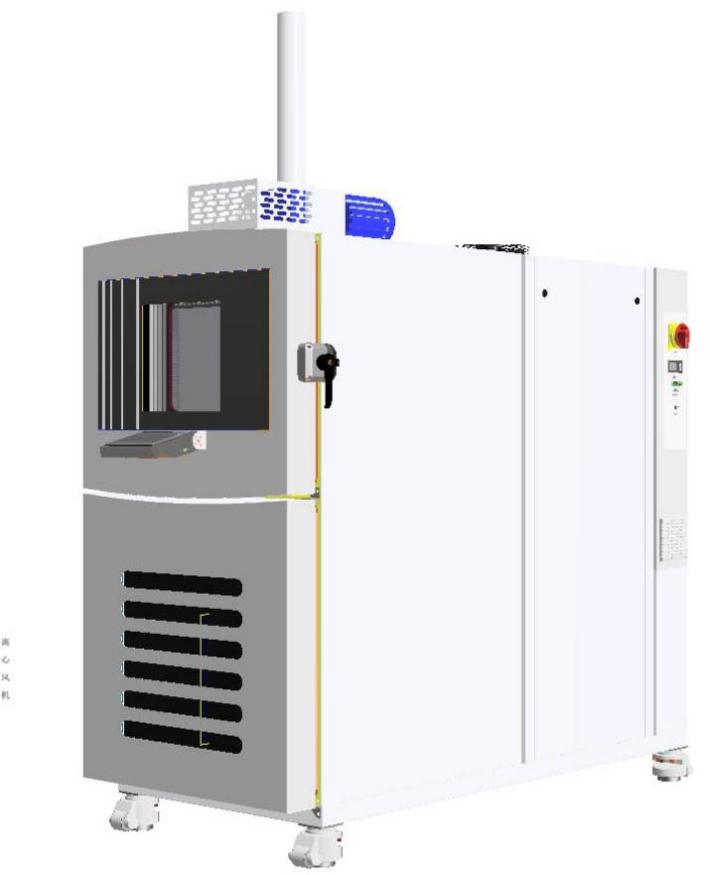

This chamber is used to test the material structure or composite materials, in an instant by the very high temperature and very low temperature continuous environment can endure the degree, so as to test its thermal expansion and contraction in the shortest possible time caused by chemical changes or physical damage. Applicable objects include metals, plastics, rubber, electronics and other materials, which can be used as the basis or reference for product improvement.
Product Features:

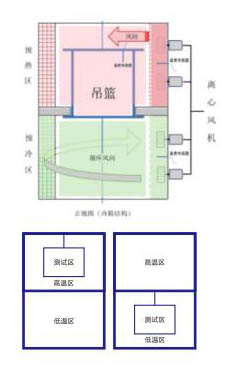

Adopt the test frame up and down moving way to quickly convert the test product to the test area, minimize the heat load of cold and heat shock, shorten the temperature recovery time. Touch operation, program setting, fault and other functions are complete.
RS-485 communication interface device, can be connected with computer for LAN monitoring and recording
Specification table:
| Model | QTS2-100 | QTS2-150 | QTS2-225 | |
| Inner box size(W*H*D)mm | 400x500x500 | 500x500x600 | 750x500x600 | |
| Outer box size(W*H*D)mm | Subject to the actual product or offer! | |||
| Impact temperature | High temperature | +60℃~+150℃ | ||
| Low temperature | L (-10℃~-40℃);F(-10℃~-55℃);X(-10℃~-65℃) conditions are optional | |||
| High temperature bath temperature range | +60℃~+200℃ | |||
| Low temperature bath temperature range | A (-55℃~-10℃) ; B (-65℃~-10℃) ; C (-80℃~-10℃) conditions are optional | |||
| Temperature fluctuation degree | ±0.5°C | |||
| Heating up time | RT room temperature~+200℃≤15min | |||
| Cooling time | A(+20℃~ -55℃)≤70min; B(+20℃~ -65℃)≤80min; C(+20℃~ -75℃)≤90min | |||
| Shock recovery time | ≤5min | |||
| Basket movement time | Within 10S | |||
| Inner and outer box material | Steel plate baking paint or 304 stainless steel | |||
| Insulation material | High density polyurethane foam insulation material with high and low temperature resistance | |||
| Cooling method | Air-cooled or water-cooled, using imported brand compressors | |||
| Dampers drive unit | Cylinder | |||
| Safety protection devices | Leakage, short circuit protection, compressor high and low voltage protection, refrigerant high pressure protection, fault alarm system | |||
