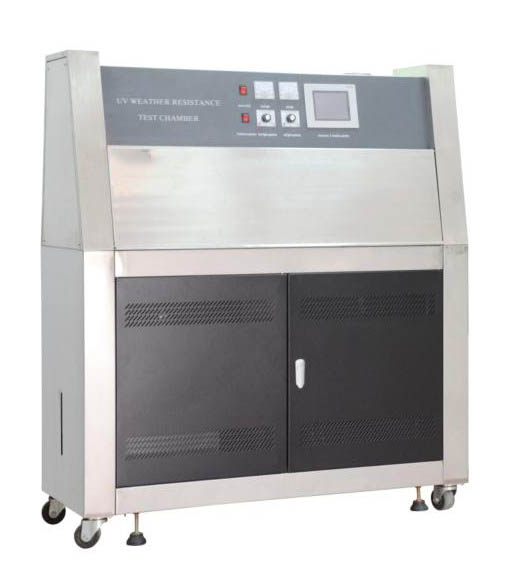

UV aging test chamber
Product Description:UV aging test chamber provides stable UV aging test environment for test samples of electronics, electricians, instruments, parts, materials, etc. This equipment can simulate the d
- Model：
Product Description:
UV aging test chamber provides stable UV aging test environment for test samples of electronics, electricians, instruments, parts, materials, etc. This equipment can simulate the damage caused by sunlight and rain on materials. Types of damage include fading, loss of gloss, chalking, cracking, cracking, blurring, blistering, embrittlement, strength reduction and oxidation, etc. It is useful to help select new materials, improve materials and evaluate how changes in formulation affect product durability.
Product features:
1, independent development of touch screen control system, more stable performance, easy to operate, can be set, display a variety of operating data, real-time monitoring of the test chamber working condition
2, can use a variety of different lamps dual-channel, dual-probe control system
Specification table:
| Model | QY-UV-263 | ||
| Inner box size (W*H*D)mm | 450*1165*500 | Outer box size | 515*1440*1300 |
| Lamp center distance | 70mm | Distance between the specimen and the plane of the lamp | 55mm |
| Temperature range | RT+10℃~+80℃ | ||
| Temperature uniformity | ±3.0°C | ||
| Humidity range | 50%±5%(natural humidity) | ||
| Ultraviolet wavelength | UVA315~400nm or UVB, UVA280~315nm (domestic, imported type lamps are optional accessories) | ||
| Irradiation intensity | 0.1~1W/㎡nm adjustable | ||
| Power supply | AC 220V/50Hz,Total power:4.7KW | Standard test pieces | 50*120mm or customized according to customer requirements |
| Security Configurations | Leakage protection, short-circuit protection, fan overload protection, over-temperature protection, phase sequence/phase loss protection | ||
FAQ
Q :How to provide after sales service?
A:If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
You can contact our local service center in overseas market to get service and product.
Q :Do you have an agent?
A:Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.
Q :Can we come to your factory to study and train?
A:Welcome to our factory for study and training, we provide this service free of charge.
Q :Can you send engineers to our company?
A:Yes, sure. We will communicate in advance to facilitate the bringing of tools and components
Q :Can I install and debug calibration on site?
A :Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.
Q :What are the modes of transportation?
A :Air, sea, rail, multimodal transport.
Q :What is the packaging?
A :Standard export wooden box packaging, solid and firm.
Q :How do you calibrate the equipment?
A :We have our own calibration and third-party calibration such as ISO17025
Q: Is there a door to door service?
A :Yes, there is door to door service. We will arrange a one-stop service.
Q :What are the payment methods?
A Payment methods are T/T, Paypal, L/C, VISA
Q:How long is the warranty period?
A :Warranty period is 3 years, free service for life
Q :Can you ship quickly?
A :Our delivery period is 3-21 days. Some of the hot-selling equipments are in stock and can be shipped within 1-3 days.
