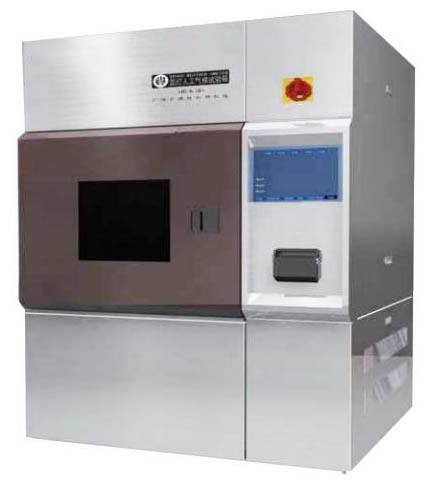

Xenon lamp weathering test chamber
Product introduction:Used for a variety of automotive interior, plastic, paint, coating, electronic meters, textiles, printing and dyeing, dyes, decorative materials, wood flooring, helmets, leather,
- Model：
Product introduction:
Used for a variety of automotive interior, plastic, paint, coating, electronic meters, textiles, printing and dyeing, dyes, decorative materials, wood flooring, helmets, leather, petrochemicals, rubber and other line materials for simulated sunlight artificial aging test and light resistance, weather resistance color fastness, light sweat resistance compound color fastness test, etc. By setting the irradiation energy, temperature and humidity of the gas lamp in the test chamber, the standard required simulated natural environment is provided to test the fading, aging, softening, hardening, cracking and other performance changes of the material.
Product features:
1. Dual temperature control, control specimen black plate thermometer or ISO/DIN black standard thermometer and air temperature;
2. Imported long-arc lamp, simulating the most realistic full-spectrum sunlight.
3. Special glass filters with specific transmittance are interchangeable with imported brands.
4. Irradiation technology: two solar standards are used for accelerated aging test narrow liquid (420nm or 340nm), wide frequency (300-400nm) or irradiance control/lux (280-3000nm).
5. Broadband (300-400nm) or irradiance control / lux (280-3000nm).
6. Monitoring interface: friendly monitoring interface, operating curve, cell phone computer APP communication technology
Specification table:
| Model | Temperature / Temperature Range | Installed power (KW) | Inside Dimension (WxHxDmm) | Outer Dimension (WxHxDmm) | Lamp Type | Cooling method |
| QXD6000 | RT+10 degree~+100℃ (Blackboard temperature) RT+10 degree~+80℃ (Air temperature) | 28 | 850X800X850 | 1500X2200X1400 | Imported type | Water cooling |
| QXD3000 | 25 | 850X800X850 | 1500X2200X1400 | Domestic type | Water cooling |
| Temperature fluctuation degree | ±0.5°C | Temperature uniformity | ≤3°C |
| Temperature Deviation | ≤±2℃ | Humidity range | 30~95%RH soil 5%RH |
| Xenon lamp | 4KW, 6KW.6.5KW | Spectral wavelength | 280~3000nm |
| Distance from arc center to specimen | 275~400mm effective exposure area 6500cm² | Water spraying cycle | 0~9999min adjustable (e.g.: spray 18min, stop 102min) |
| Water spray flow | 0.5L/min(front spray) | Supply Voltage | 380V |
FAQ
Q :How to provide after sales service?
A:If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
You can contact our local service center in overseas market to get service and product.
Q :Do you have an agent?
A:Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.
Q :Can we come to your factory to study and train?
A:Welcome to our factory for study and training, we provide this service free of charge.
Q :Can you send engineers to our company?
A:Yes, sure. We will communicate in advance to facilitate the bringing of tools and components
Q :Can I install and debug calibration on site?
A :Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.
Q :What are the modes of transportation?
A :Air, sea, rail, multimodal transport.
Q :What is the packaging?
A :Standard export wooden box packaging, solid and firm.
Q :How do you calibrate the equipment?
A :We have our own calibration and third-party calibration such as ISO17025
Q: Is there a door to door service?
A :Yes, there is door to door service. We will arrange a one-stop service.
Q :What are the payment methods?
A Payment methods are T/T, Paypal, L/C, VISA
Q:How long is the warranty period?
A :Warranty period is 3 years, free service for life
Q :Can you ship quickly?
A :Our delivery period is 3-21 days. Some of the hot-selling equipments are in stock and can be shipped within 1-3 days.
