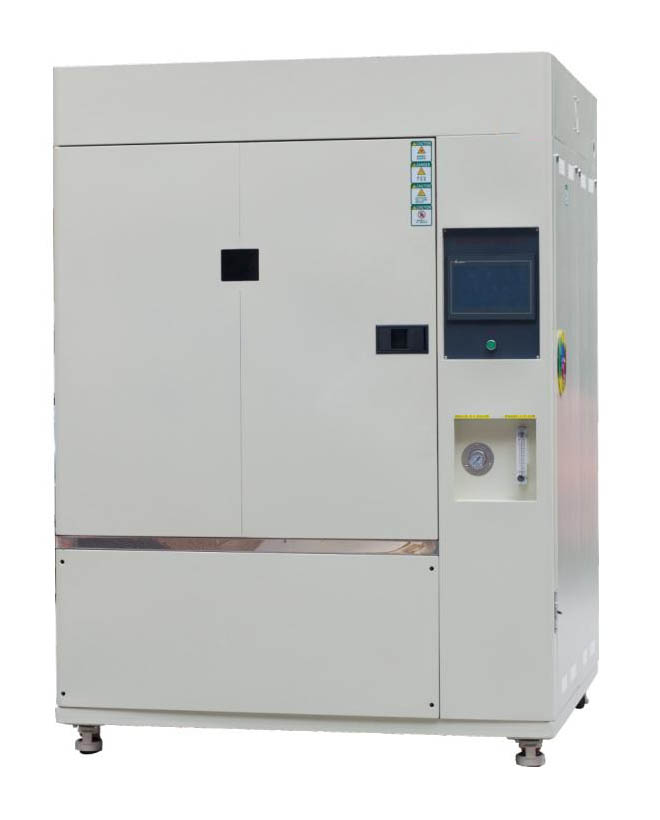

Carbon arc lamp weathering test chamber
Product introduction:Carbon arc lamp weathering test chamber mainly adopts daylight type carbon arc lamp as the light source, through changing the temperature (sample plus temperature, working room te
- Model：
Product introduction:
Carbon arc lamp weathering test chamber mainly adopts daylight type carbon arc lamp as the light source, through changing the temperature (sample plus temperature, working room temperature), relative humidity, rainfall, etc., simulating the outdoor climate test chamber conditions of the integrated combination of light, heat and water, the test material for photochemical properties and mechanical properties of artificial aging test.
Product features:
PLC touch screen controller, stable control, the main control parameters are light irradiance, working room temperature, sample rack temperature, relative humidity, can close the loop automatic control
Specification table:
| Model | QSC-1300 |
| Studio size | 110x110x110cm(WxDxH) |
| Outer box size | 130x140x205cm(WxDxH) according to the actual size. |
| Use of light sources | Sunshine Carbon Arc Lamp (SUNSHINE CARBON-ARC) |
| Test time per cycle | 60 hours, 4 sets of carbon rods per use |
| Temperature and humidity use range: according to the black panel temperature (black panel temperature) shall prevail. | |
| Temperature range | 40~70℃,black plate thermometer is 63±3℃or 83±3℃ |
| Humidity range | When the black plate thermometer is 63±3℃, the humidity is 50±5%. |
| Environmental conditions | Room temperature 25±3℃,relative humidity:65±20% |
| Temperature control method | Electric control gate, automatic adjustment of intake and exhaust, balance control of temperature. |
| Wet control method | Contains an immersion heater to produce water vapor and balance humidity control. |
| Simulated rainfall spray cycle control | Spraying time can be set |
| 18 minutes of spraying every 120 minutes (general type Rainfall cycle) | |
| 12 minutes of spraying every 60 minutes (Rainy type Rainfall cycle) | |
| No spray (dry type Rainfall cycle) | |
| Spray volume | The total amount of water in the spraying pressure of 1.0kgf/c㎡ nozzle is 2.10±0.10L/min |
| Customer water supply | 10E1 water pressure 1.5~3.0kgf/c㎡ |
| Water Quality | PH6.0~8.0, hard water softening or pure water device should be used if necessary |
| Structure and material | The test tank is stainless steel SUS304#, and the body shell is painted with steel plate. |
| Test tank door with UV protection window. | |
| The insulation layer is temperature resistant PU foam. | |
| Rainfall cycle time control. | Power failure memory device (0~999min) with flow control: two-stage pressure regulation, pressure gauge and flow meter (0~3.01/min) |
