product introduction:
Salt spray is one of the artificial climate environment "three anti" test equipment. For a variety of materials, including coatings, electroplating, anodizing, spraying, anti-rust oil and other surface treatment, test the corrosion resistance of the product, in addition to similar protective layer and the quality of the product process comparison.
Product features.
The whole machine is made of imported PP hard plastic plate, solid structure, acid and alkali resistance, high temperature resistance, corrosion, never aging, suitable for neutral salt spray NSS, acid test AS, acid copper CASS and other test fees.
Using plastic precision nozzle and conical spray device, falling mist evenly and quickly, long service life of the nozzle, not crystallized.

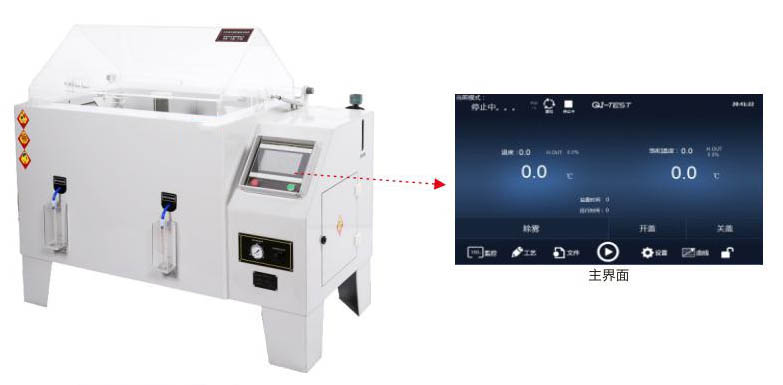

Adopt LCD touch screen, can be connected with computer to realize remote monitoring and operation, switch between Chinese and English at will.
USB interface, can be inserted into the U disk to download the curve, historical data (instead of the recorder) (optional)
Spraying time can be controlled internally, no need for additional time relays
Through the flow meter, high-pressure valve to adjust the flow of brine and compressed air pressure, to ensure uniform salt spray deposition
Adopt manual water filling system, with automatic replenishment function when the water level is insufficient to ensure that the test is not interrupted.
Specification
| Universal PP model | AHL-90-BS | AHL-120-NS | AHL-160-NS | AHL-200-NS | |
| Test conditions | NSS (neutral), AS (acidic), CASS (copper accelerated) | ||||
| Economy model | HL-90-BS | HL-120-NS | HL-160-NS | HL-200-NS | |
| Test conditions | Only for neutral, acidic salt spray test | ||||
| Inner box size(W*D*H)mm | 900*600*500 | 1200*850*500 | 1600*850*550 | 2000*950*600 | |
| Outer box size(W*D*H)mm | 1460*910*1280 | 1900*1150*1500 | 2300*1150*1550 | 2700*1350*1600 | |
| Working chamber volume(L) | 270 | 480 | 800 | 1440 | |
| Brine tank capacity (L) | 25 | 90 | 90 | 120 | |
| Test chamber temperature | (NSS ACSS)Test temperature: :35℃±1℃/(CASS)Test temperature:50℃±1℃ | ||||
| Saturated drum temperature | (NSS ACSS)Test temperature:47℃±1℃/(CASS)Test temperature:63℃±1℃ | ||||
| Heating method | Thermal radiation heating | ||||
| Brine temperature | 35℃±1℃/50℃±1℃ | ||||
| Test solution | NSS:pure water+sodium chloride(PH6.5~7.2)/CASS:pure water+sodium chloride+copper chloride(PH3.0~3.2) | ||||
| Compressed air pressure | 2kgf/c㎡ | 2kgf/c㎡ | 6kgf/c㎡ | 6kgf/c㎡ | 6kgf/c㎡ |
| Power supply | AC 220V, 1Φ,50HZ | ||||
Shipping configuration
| 1. Technical data: operation manual, product certificate, warranty card, etc. |
| 2. Distribution of wet ball gauze a package |
| 3. Distribution of sodium chloride 4 bottles |
| 4. Distribution of a gas supply pipe |
| 5. Delivery of an exhaust pipe joint |
| 6. Distribution of a set of sealing plugs |
| 7. Distribution of salt water bucket a |
| 8. Distribution of a set of sample rack |
Optional accessories
| 1. Control panel: push button and LCD touch screen operation panel optional |
| 2. Working mode: steam heating (boiling water type) / no water control temperature (dry burning type) optional |
| 3. Saline concentration meter |
| 4. Air compressor |
FAQ
Q :How to provide after sales service?
A:If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
You can contact our local service center in overseas market to get service and product.
Q :Do you have an agent?
A:Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.
Q :Can we come to your factory to study and train?
A:Welcome to our factory for study and training, we provide this service free of charge.
Q :Can you send engineers to our company?
A:Yes, sure. We will communicate in advance to facilitate the bringing of tools and components
Q :Can I install and debug calibration on site?
A :Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.
Q :What are the modes of transportation?
A :Air, sea, rail, multimodal transport.
Q :What is the packaging?
A :Standard export wooden box packaging, solid and firm.
Q :How do you calibrate the equipment?
A :We have our own calibration and third-party calibration such as ISO17025
Q: Is there a door to door service?
A :Yes, there is door to door service. We will arrange a one-stop service.
Q :What are the payment methods?
A Payment methods are T/T, Paypal, L/C, VISA
Q:How long is the warranty period?
A :Warranty period is 3 years, free service for life
Q :Can you ship quickly?
A :Our delivery period is 3-21 days. Some of the hot-selling equipments are in stock and can be shipped within 1-3 days.
