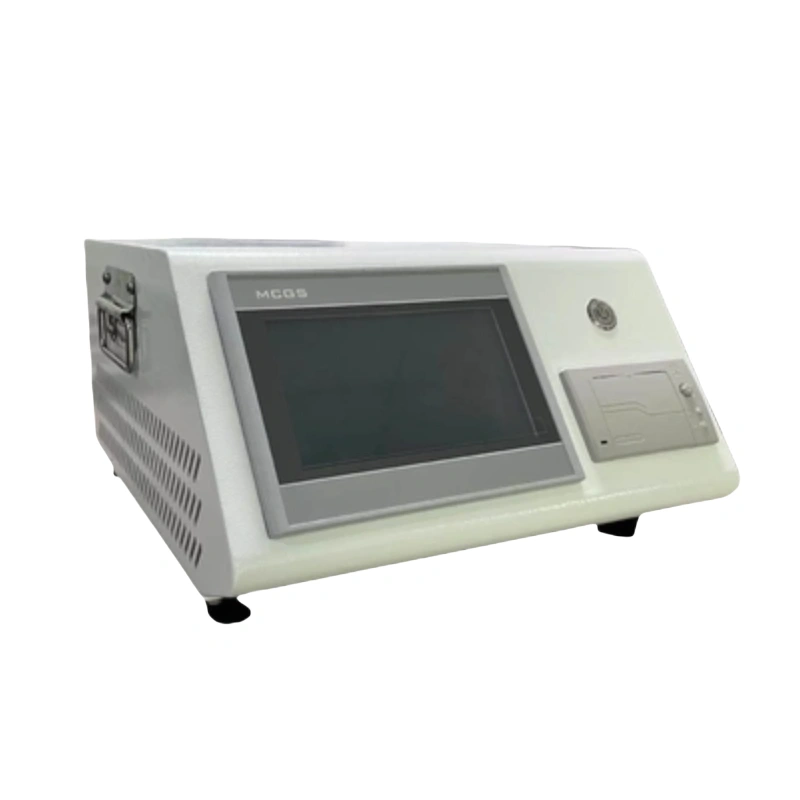

ISO 18250-1 Subatmospheric Pressure Air Leakage Tester With Result Printing

ISO 18250-1 Subatmospheric Pressure Air Leakage Tester With Result Printing

  • Model: ISO 80369-20 Annex D and ISO 18250-1

Product Description

ISO 80369-20:2015 and ISO 18250-1:2018 Annex D Subatmospheric Pressure Air Leakage Tester with test result printing function

Technical parameters
●According to standards: ISO80369-20-Annex D
●Pressure gauge range:0~-80kpa
●Pressure gauge accuracy: ±0.25%FS
●Test time: 0-9999s Can be set
●Test time: 0-9999s Can be set
●Control mode: PLC+7 inch touch screen
●Output and input pipe size: φ4mm
●Dimensions: 360*380*210 mm W * D *h
●Weight: 11.5kg
●Power supply: 220V 50HZ

This tester is used for air leakage during aspiration in a connector assembly by measuring the change in sub-atmospheric pressure over time after a vacuum is applied to the assembly. The tester has an integrated touch-screen and microcomputer, which is simple to use. Test results are automatically shown on-screen.

Operation page:

Pressure curve:

Print test results
