KP-2021 High-Frequency Electrosurgical Unit Analyzer Brochure

KP-2021 High-Frequency Electrosurgical Unit Analyzer Brochure

I.Product Introduction

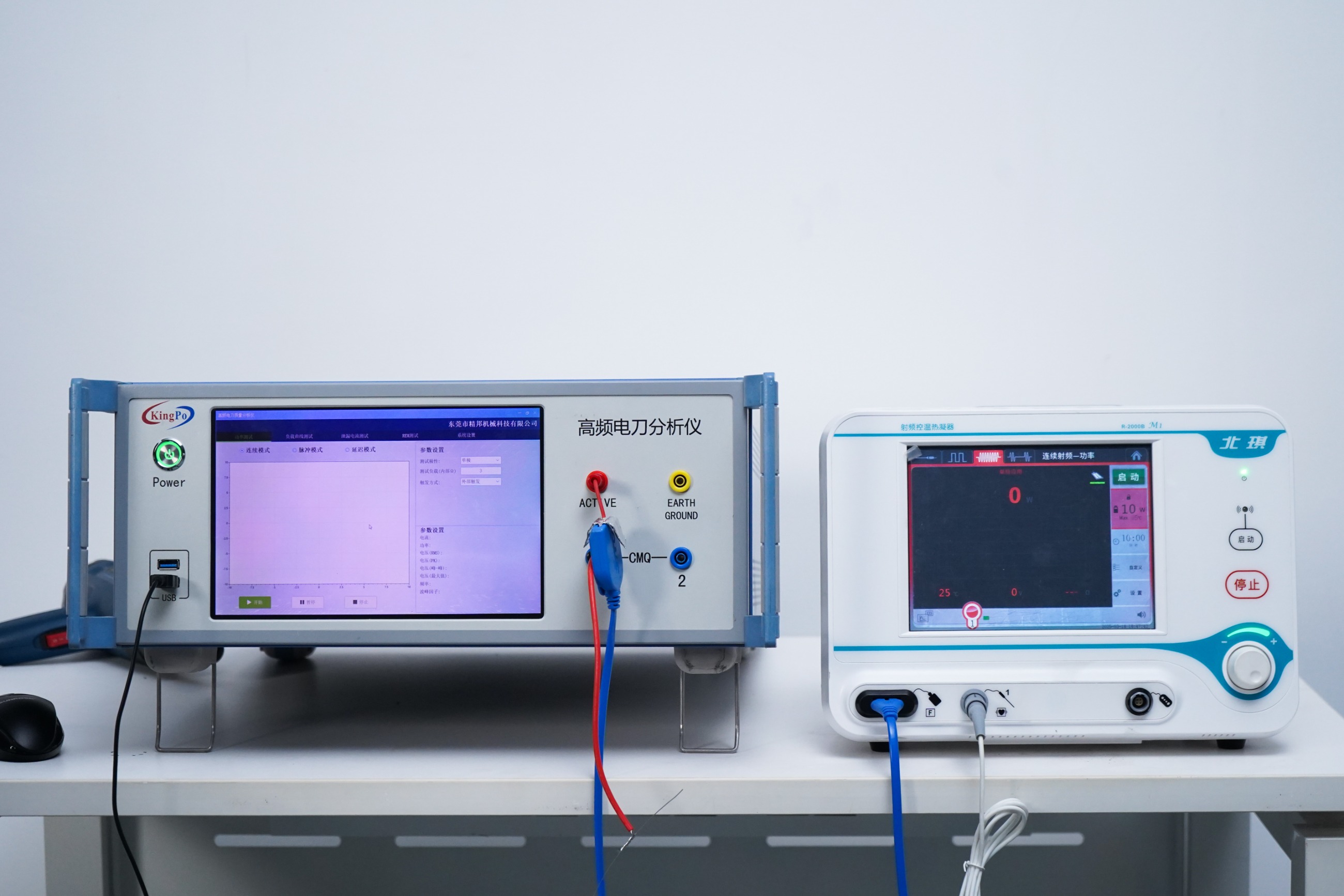

The KP-2021 High-Frequency Electrosurgical Unit Analyzer is a high-performance medical testing device meticulously developed by JBP Technology,specifically designed for the performance testing and quality control of high-frequency electrosurgical units and other electro-surgical devices.Utilizing advanced current sensing and high-speed digital sampling technologies,this analyzer is capable of precisely measuring a variety of complex high-frequency electrosurgical waveforms,offering a comprehensive and reliable testing solution for medical device manufacturers,testing institutions,and healthcare facilities.

II.Product Features

A.High-Precision Measurement

The KP-2021 High-Frequency Electrosurgical Unit Analyzer boasts exceptional measurement accuracy,meeting the stringent testing requirements for various performance indicators of high-frequency electrosurgical units:

• Power Measurement:Range 0—500W,resolution 0.1W,accuracy±3%of reading or±1W.

• Voltage Measurement:Range 0—400V(RMS),accuracy±2%of reading or±2V.

• Current Measurement:Range 2mA—5000mA,resolution 0.1mA,accuracy up to 1%.

• High-Frequency Leakage Current Measurement:Range 2mA—5000mA,resolution 0.1mA,accuracy 1%.

• Load Impedance Measurement:Range 0—6400Ω,step 1Ω,accuracy±1%.

B.Wide Frequency Band Measurement Range

The KP-2021 High-Frequency Electrosurgical Unit Analyzer has a frequency band measurement range of50KHz—200MHz,covering the entire working frequency band of high-frequency electrosurgical units,including radiofrequency ablation devices.This provides users with a more comprehensive testing capability to meet the performance testing requirements of high-frequency electrosurgical units in various application scenarios.

C.Multiple Testing Modes

The KP-2021 High-Frequency Electrosurgical Unit Analyzer is equipped with multiple testing modes to meet the diverse testing needs of different users:

• RF Power Measurement Mode:Measures the output power of high-frequency electrosurgical units in both monopolar and bipolar modes.

• Power Load Curve Test Mode:Automatically plots power load curves,supporting configuration of multiple load values and power levels.

• RF Leakage Current Measurement Mode:Measures the RF leakage current of high-frequency electrosurgical units to ensure device safety.

• REM/ARM/CQM Function Test Mode:Tests the REM(Return Electrode Monitoring),ARM(Active Return Monitoring),and CQM(Continuous Quality Monitoring)functions of high-frequency electrosurgical units.

• Voltage and Current Testing Method Mode Switching:The KP-2021 High-Frequency Electrosurgical Unit Analyzer can simultaneously meet the voltage testing method of Fluke and the current testing method of BC.The two modes can be easily switched,providing users with greater flexibility and compatibility.

D.Automated Testing Function

The KP-2021 High-Frequency Electrosurgical Unit Analyzer can be connected to electrosurgical units to achieve automated testing,speeding up the testing efficiency and avoiding cumbersome manual operations.This function not only improves the accuracy and repeatability of testing but also significantly reduces testing time,enhancing work efficiency.Moreover,the device supports data connection to Laboratory Information Management Systems(LIMS)and Manufacturing Execution Systems(MES),enabling efficient data management and traceability,providing a strong guarantee for the quality control of medical devices.

E.Strong Compatibility

The KP-2021 High-Frequency Electrosurgical Unit Analyzer has good compatibility and can be matched with a variety of brands and models of high-frequency electrosurgical units for testing,including but not limited to well-known brands such as Valleylab,Conmed,and Erbe.In addition,the device also supports external load testing,further enhancing its scope of application and flexibility.

F.User-Friendly Design

The KP-2021 High-Frequency Electrosurgical Unit Analyzer adopts a humanized design concept with an intuitive and easy-to-use interface.The device is equipped with a high-resolution display that can clearly show test data and waveform curves,facilitating real-time observation and analysis by users.Moreover,the device also features a rich configuration of interfaces,including USB and RS232 interfaces,facilitating data transfer and device connection for users.

III.Applicable Standards

The KP-2021 High-Frequency Electrosurgical Unit Analyzer strictly follows domestic and international relevant standards to ensure the accuracy and authority of test results:

• GB 9706.202-2021"Medical Electrical Equipment-Part 2-2:Particular requirements for the basic safety and essential performance of high-frequency surgical equipment and high-frequency accessories"

• WS/T 602-2018"Health Industry Standard-Management of High-frequency Electrosurgical Units"

• JJF 1217-2009"Calibration Specification for High-frequency Electrosurgical Unit"

• EN 60601-2-2 and BS EN 60601-2-2

IV.Application Fields

The KP-2021 High-Frequency Electrosurgical Unit Analyzer is widely used in the following fields:

• Medical Device Manufacturers:Used in the research and development,production process quality control,and factory inspection of high-frequency electrosurgical units and other electro-surgical devices to ensure product performance meets standard requirements.

• Testing Institutions:Provides an accurate and reliable testing tool for third-party testing institutions for performance testing and certification testing of high-frequency electrosurgical units,issuing authoritative test reports.

• Healthcare Institutions:In the equipment management and maintenance departments of hospitals,used for daily maintenance,performance verification,and troubleshooting of high-frequency electrosurgical units to ensure the safety and effectiveness of devices in clinical use.

V.After-Sales Service

KingPo Technology offers comprehensive after-sales services for the KP-2021 High-Frequency Electrosurgical Unit Analyzer to ensure user peace of mind:

• Professional After-Sales Team:Possesses a team of experienced and highly skilled after-sales engineers who can promptly respond to user after-sales needs and provide professional technical support and solutions.

• Nationwide Service Network:A well-established nationwide service network covering major cities and regions across the country ensures that users can enjoy timely and efficient after-sales services no matter where they are.

• Equipment Installation and Commissioning:Provides free equipment installation and commissioning services to ensure that the equipment can operate normally and achieve optimal performance on-site.

• Technical Training:Offers comprehensive technical training for users,including equipment operation,maintenance,and troubleshooting,helping users to master the use of the equipment proficiently and improve their usage efficiency and equipment management level.

• Maintenance and Repair:Provides timely equipment maintenance and repair services to ensure the long-term stable operation of the equipment.At the same time,it provides original spare parts to ensure the quality and reliability of equipment repairs.

• Software Upgrades:Offers free software upgrade services for users to ensure that the equipment always has the latest functions and performance to meet the ever-changing testing needs.

VI.Summary

With its high-precision measurement,wide frequency band measurement range,multiple testing modes,automated testing function,strong compatibility,and user-friendly design,the KP-2021 High-Frequency Electrosurgical Unit Analyzer has become the ideal choice for the performance testing and quality control of high-frequency electrosurgical units.Relying on its profound technical accumulation and comprehensive after-sales service system,JBP Technology provides users with all-round support to ensure that users can obtain the best experience and the highest value during use.Choosing the KP-2021 High-Frequency Electrosurgical Unit Analyzer means choosing a precise,efficient,and reliable medical device testing solution.
