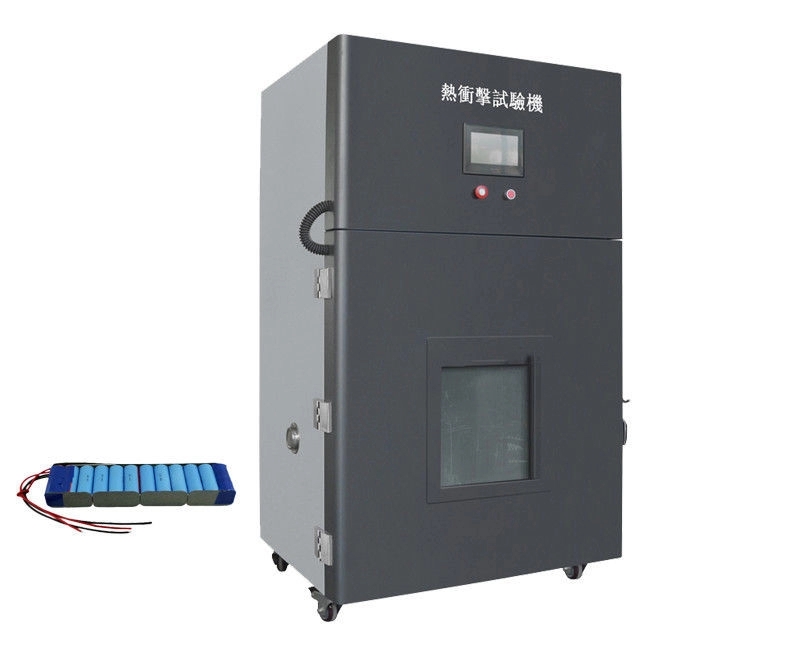

IEC 62133 clause 7.3.5 / 8.3.4 Battery Thermal Abuse Tester Testing Battery in a Hot Air Circulation system
Standard
IEC62133 clause 7.3.5,8.3.4, IEC61960, IEC60086-4 clause 6.5.7, IEC 60086-1, UN 38.3, UL 1642, GB31241 and etc.
Applications
The battery thermal impact tester, also called the battery thermal abuse test chamber, uses a hot air circulation system by simulating a battery placed in a natural convection or forced-air high temperature box, raising the temperature to a set test temperature and maintaining a certain time at a certain heating rate. It can ensure even distribution of working temperature. Mainly applied for industrial products drying,thermal treatment etc.
Parameters
| Temperature range | Ambient temperature～200℃ (controllable) |
| Control Accuracy | ±0.5℃ |
| Distribute Temp. | ±2.0℃(non-load) |
| Temperature rising rate | RT～150℃(5℃±2℃/minutes ) |
| Control Method | PLC Touch Screen Control |
| Working room dimension | W600mm×D500mm×H600mm |
| External Dimension | W940X D780 X H1620mm |
| Inner Chamber Material | SUS304 mirror stainless steel(thickness 3mm),clean and smooth internal chamber, easy for cleaning ,with high corrosion resistance performance.All internal material with environment friendly material,inter barrel with no trace argon arc welding |
| External Chamber Material | SECC steel plate,powder painted (thickness1.5mm) |
| Bottom | Installed with universal wheel |
| Observation Window | Toughened glass with bursting disk. |
| Insulation Material | High density glass wool,well insulation, best ensure the temperature insulation. With high temperature resistant silicon seal, long time bear high temperature above 300 degree. |
| Power Source | 220V 60HZ |
| Heating Power | About 3KW |
Features
1. External with SECC steel plate,powder paint treatment; Inner with SUS stainless steel .
2. High temperature resistant long axis motor.
3. Turbo-fan .
4. Silicon packing.
5. Over-temperature protection,over loading auto power cut off system.
6. Cycling system: forced flat air cycling .
7. Heating system :PID+S.S.R.
8. Temperature controller :PID micro computer control, automatic constant temperature, quick temperature compensation function .
9. Time function: when temperature reach the setting temperature, alarm for cut off power.
10. Glass observation windows optional, customize according to customer requirements.
Air Supply System
1. Forced Air Conveying circulation design. The air source generated by circulation motor driving the wheel and force the air pass through the heater to convey the hot air into the drying chamber while the used air can be inhaled to the air channel as the air source and be heated again. This way is taken to reduce the energy loss and assure the temperature in uniform distribution in the chamber. If any disturbance of door open or close, this air conveying and circulation system can recover the operational temperature value in a short time.
2. Long axis high temperature resistant motor, power 1HP50Hz
3. Blower with multi impeller turbo type, high strength, inner installed with adjustable air flow plate, make the air channel smooth.
