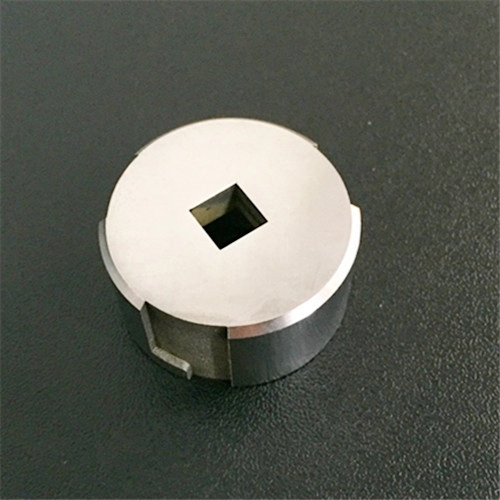

Zhaga book 18 Annex B Mechanical Mechanical Stop Gauge / Contact Making Gauge

Zhaga book 18 Annex B Mechanical Mechanical Stop Gauge / Contact Making Gauge

  • Model:

Zhaga book 18 Annex B Mechanical Mechanical Stop Gauge / Contact Making Gauge 0

Zhaga book 18 Annex B Mechanical Mechanical Stop Gauge / Contact Making Gauge 1

Zhaga book 18 -Annex B Mechanical drawing of the Mechanical-stop-gauge

5.1.1 Mechanical-stop-gauge

The Mechanical-stop-gauge is defined in Annex B. This gauge is used to verify whether the mechanical stop features of the LEX-M under test (see Figure 3-6) can withstand a torque of 5 Nm.

Zhaga book 18-Annex C Mech. drawing of the Contact-making-gauge-min and Contact-making-gauge-max

5.2.1 Contact-making-gauge-min

The Contact-making-gauge-min is defined in Annex C. This gauge is used to verify whether the LEX-R under test can mate with a LEX-M that is compliant with this specification and whether all contacts of the LEX-R under test make electrical contact with all contacts of a LEX-M that is compliant with this specification

5.2.2 Contact-making-gauge-max

The Contact-making-gauge-max is defined in Annex C. This gauge is used to verify whether the LEX-R under test can mate with a LEX-M that is compliant with this specification and whether all contacts of the LEX-R under test make electrical contact with all contacts of a LEX-M that is compliant with this specification

Zhaga book 18-Annex D Mechanical drawing of the Un-mating-torque-gauge

5.2.3 Un-mating-torque-gauge

The Un-mating-torque-gauge is defined in Annex D. This gauge is used to verify whether after 5 mating cycles of the LEX-R under test with the gauge the torque for un-mating is 1.0 Nm or more


The Zhaga book 18 Annex B Mechanical Mechanical Stop Gauge / Contact Making Gauge is a NOT GO (stop) limit gauge built to IEC 60061-3. Kingpo machines this gauge in-house from hardened tool steel, inspects it against the sheet before despatch and ships it with a calibration certificate, so it can go straight into an incoming-inspection or production-gauging routine.

What this gauge checks

  • That the thread or named dimension has not been cut oversize or worn beyond the maximum limit
  • That the part is not loose in its mating holder or cap
  • The stop limit specified on the sheet, under the gauge weight or force the sheet allows

Specification

StandardIEC 60061-3 (lamp caps, lampholders and gauges)
Sheetsee product title
Gauge classA NOT GO (stop) limit gauge
MaterialHardened tool steel (stainless steel on request)
CalibrationSupplied with a calibration certificate; re-calibration available
Made byKingpo — machined, inspected and calibrated in-house

How the test is run

  1. Condition the gauge and the sample together at ambient temperature and make sure both are clean, dry and undamaged.
  2. Place the gauge on the cap, or screw the gauge into the holder, using only the weight of the gauge. The sheet allows no additional force.
  3. Read the limit feature named on the sheet. On cap gauges the centre contact must not project beyond the reference surface.
  4. Record the result. Any additional force invalidates the test, because the gauge is measuring a limit, not a fit.

The verdict is the sample must not accept the gauge beyond the specified limit. Read the gauge, do not force it: a limit gauge that is forced into place tells you nothing about the part and damages the gauge.

GO and NOT GO — why you usually need both

A single limit gauge proves only one side of a tolerance. A GO gauge shows the part is not too small; a NOT GO gauge shows it is not too large. Running both is the only way to demonstrate a cap or a lampholder sits inside the band, and it is what an auditor will expect to see recorded. If you are building a gauge set from scratch, order the two together and keep them in the same case.

This page is the NOT GO gauge. The matching GO gauge for the same series is listed under related products below.

Getting the right sheet

IEC 60061-3 assigns one sheet number per gauge, and the number is what you should order against. Three things decide it: the cap family, whether you are checking a finished lamp or a lampholder, and which feature is being checked — thread, contact-making, protection against accidental contact, insertion torque or a named dimension. Sending us the sheet number avoids the most common error in this category, which is ordering a cap gauge when the test is on the holder, or the other way round.

Frequently asked questions

Is this gauge supplied with a calibration certificate?

Yes. Every Kingpo gauge is inspected against the sheet before despatch and shipped with a calibration certificate. We can also re-calibrate gauges you already hold.

Can you make a gauge to a drawing instead of to a sheet number?

Yes. We machine to customer drawings as well as to IEC 60061-3 sheets, including modified gauges for production gauging where a full standard gauge is impractical.

What wears out on this type of gauge?

The gauging surfaces and any thread. Limit gauges are inspection tools, not production tools: keep them off the production line, store them dry, and re-calibrate on a cycle set by usage rather than by calendar.

Related gauges and equipment

Other Kingpo gauges and test equipment:

Send the standard, figure number and quantity to Kingpo technical sales for a quotation and delivery date.

Specification of the Zhaga book 18 Annex B Mechanical Mechanical Stop Gauge / Contact Making Gauge. The values below follow the IEC 60061-3 gauge sheet; where a dimension is called out on the sheet, the sheet governs and we machine to it.

StandardIEC 60061-3 — lamp caps, lampholders and gauges
Sheetas stated in the product title
Gauge classNOT GO (stop) limit gauge
MaterialHardened tool steel; stainless steel on request
Dimensional toleranceAs specified on the IEC 60061-3 gauge sheet
Scope of supplyGauge and calibration certificate
CalibrationCalibration certificate supplied; re-calibration available
OriginKingpo — machined, inspected and calibrated in-house

Custom versions, alternative materials and re-calibration are available. Send the standard, figure number and quantity for a quotation. Gauges are inspection tools: re-calibrate on a cycle set by usage, not by calendar time.
