ISO 80601-2-70 Figure 21.101 Standard Resistance Medical Test Equipment
ISO 80601-2-70 Figure 21.101 Standard Resistance Medical Test Equipment

ISO 80601-2-70 Figure 21.101 Standard Resistance Medical Test Equipment

Product DescriptionISO 80601-2-70 figure 21.101 standard resistanceKeyD is the internal diameter: (4 ± 0,1) mmL is the length: (40 ± 1) mmA is the angle (45 ± 1) °Break all edges with 0,15 mm to 0,20

  • Model： ISO 80601-2-70 figure 21.101
Online Inquiry

Product Description

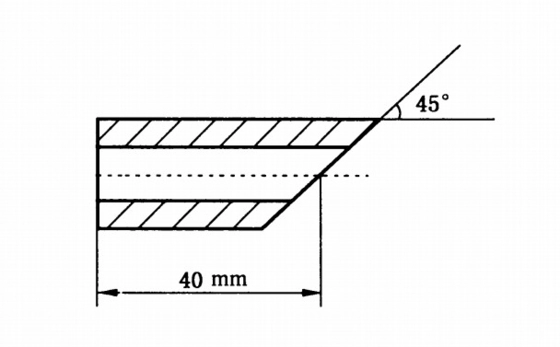

ISO 80601-2-70 figure 21.101 standard resistance













ISO80369 Testing Equipment,Luer Gauge,ISO80369 Gauge,ISO5356 Gauge

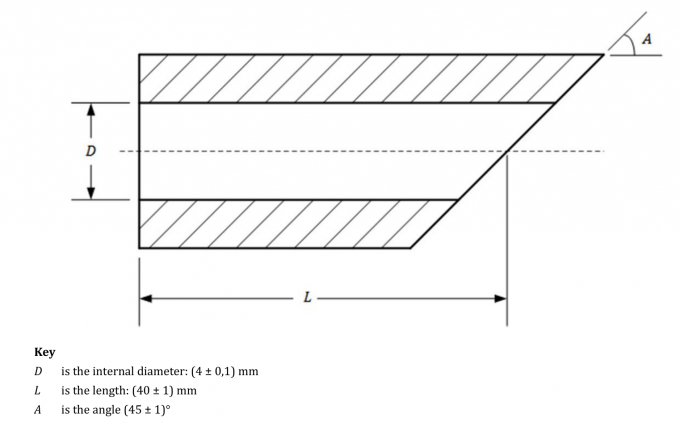

Key
D is the internal diameter: (4 ± 0,1) mm
L is the length: (40 ± 1) mm
A is the angle (45 ± 1) °
Break all edges with 0,15 mm to 0,20 mm radius or 45° chamfer. Drawing is not to scale.

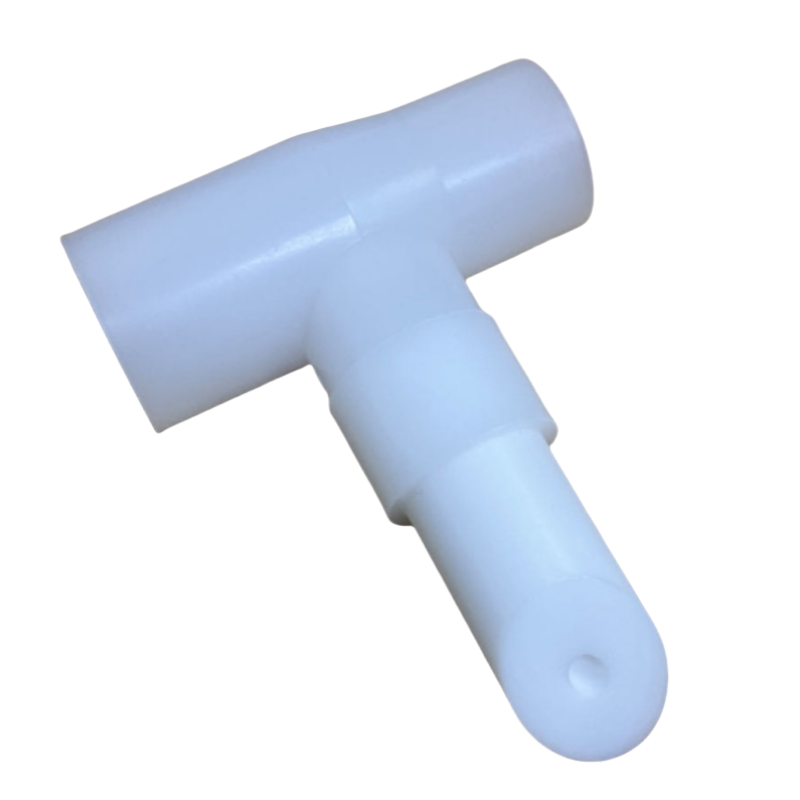

Connector: 15/22mm standard connector can be made according to customer requirements
