ISO 9360-1 Heat And Moisture Exchangers (HMEs) For Humidifying Respired Gases In Humans-Calibration HME
ISO 9360-1 Heat And Moisture Exchangers (HMEs) For Humidifying Respired Gases In Humans-Calibration HME
- Model： ISO 9360-1-Figure 6
Product Description
ISO 9360-1 Anaesthetic and respiratory equipment –Heat and moisture exchangers (HMEs) for humidifying respired gases in
humans –Part 1: HMEs for use with minimum tidal volumes of 250 ml
humans –Part 1: HMEs for use with minimum tidal volumes of 250 ml

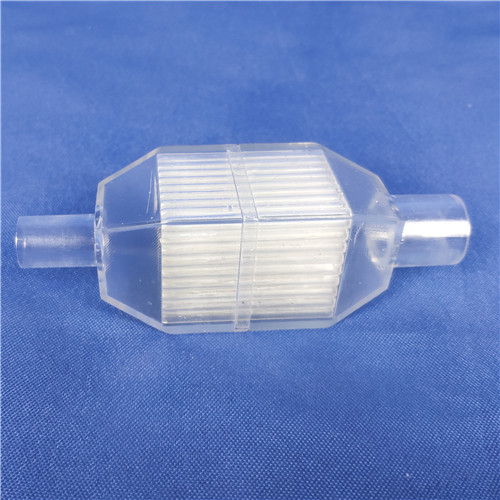

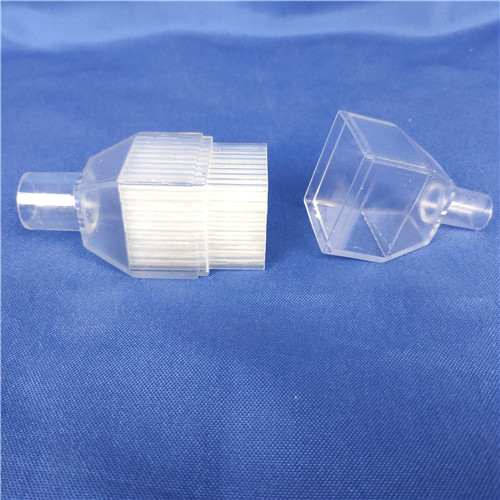

ISO 9360-1-Figure 6 — Calibration HME

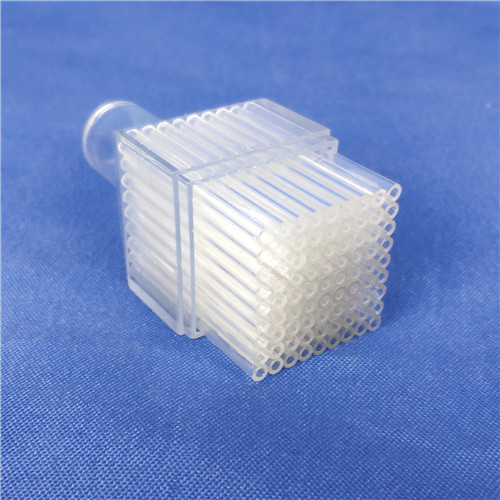

Calibration HME (Figure 6) consisting of a housing containing 81 polyvinyl chloride (PVC) tubes arranged in a 9 *9 array, each with an internal diameter of 2 mm, an external diameter of 4 mm, and a length of 50 mm.

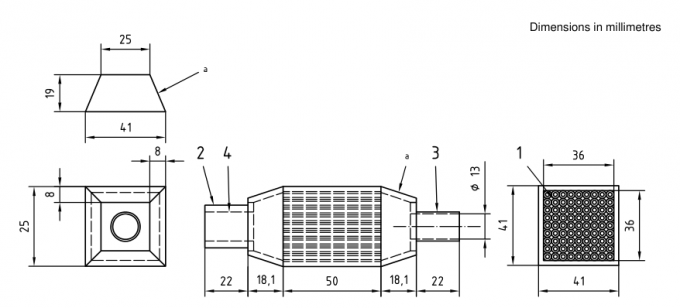

Key
1 81 tubings; ID = 2 mm, OD = 4 mm
2 Male 22 cone
3 Male 1 5 cone
4 Female 15 cone
All parts made of acrylic except tubings, which are made of PVC
a Outside dimension, sides angled to fit
