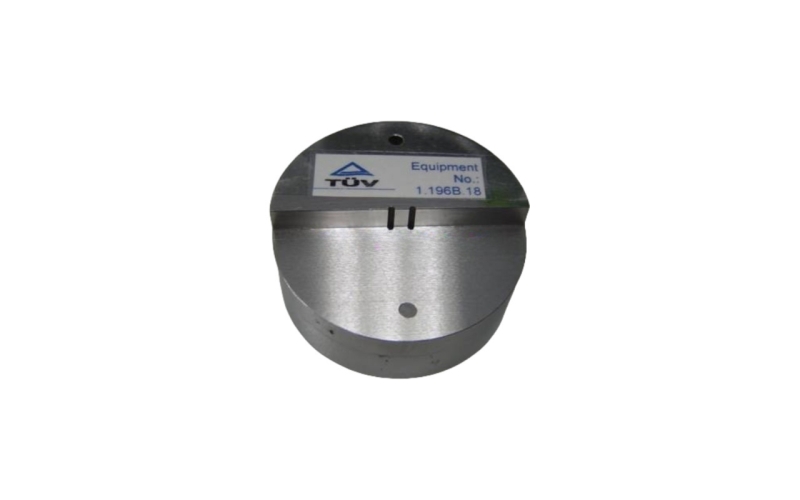

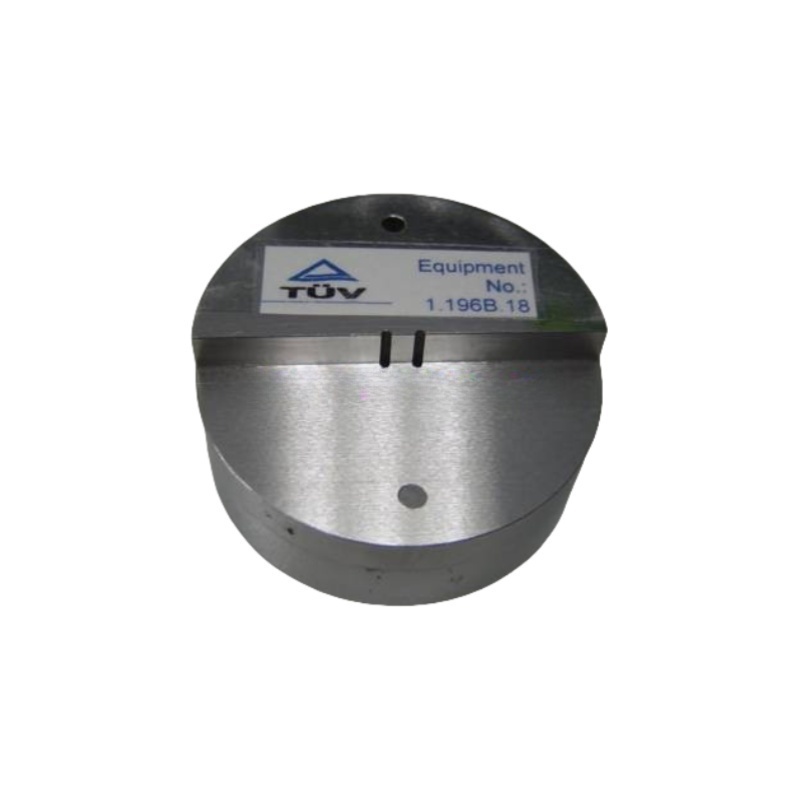

The IEC60061-3 G4 7006-67-1 is a professional-grade lamp gauge designed for G4 bi-pin base bulbs, providing exact measurement verification for this widely used miniature bulb connector. As part of the IEC 60061-3 international standard, this essential tool ensures compliance with global specifications for 4mm spaced bi-pin connectors commonly found in low-voltage halogen and LED lighting systems.
This precision gauge measures critical dimensions including:
4mm pin spacing accuracy
Pin diameter verification
Proper insertion depth
Base alignment specifications
Primary Applications:
✔ MR11 and other miniature halogen bulbs
✔ LED replacement lamps
✔ Under-cabinet lighting systems
✔ Display and accent lighting fixtures
✔ Automotive interior lighting
Key Benefits:
IEC Standard Compliance: Meets all IEC60061-3 G4 specifications
Precision Engineering: ±0.01mm measurement accuracy
Universal Compatibility: Works with all G4 base bulbs worldwide
Durable Construction: Hardened steel for long service life
Quality Control Essential: Mandatory tool for lamp manufacturers and testing labs
| Parameter | Specification |
|---|---|
| Standard | IEC60061-3 |
| Base Type | G4 Bi-Pin |
| Pin Spacing | 4.0mm ±0.01mm |
| Material | Hardened Tool Steel |
| Compliance | Global Lighting Standards |
| Application | Halogen/LED Manufacturing QC |
