Product Overview

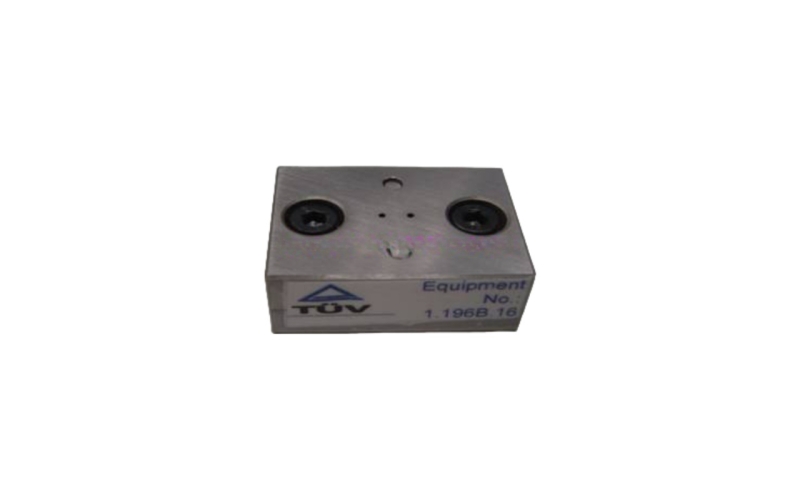

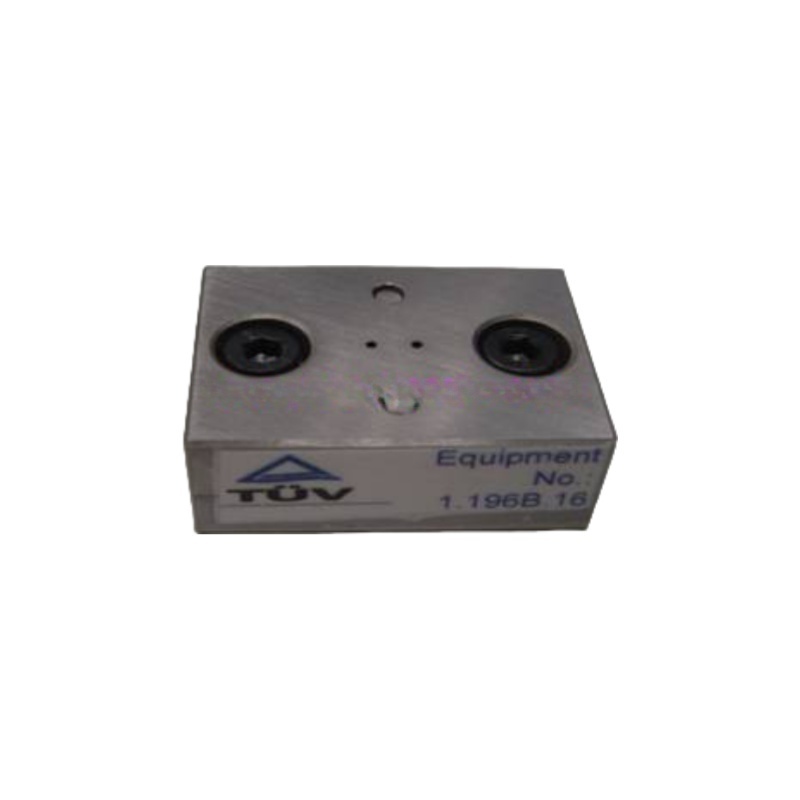

The IEC60061-3 G4 7006-72-1-B is a professional-grade lamp gauge designed for G4 bi-pin bulb bases, ensuring precise measurement and compliance with international IEC standards. This high-accuracy tool is essential for lighting manufacturers, quality control labs, and certification bodies to verify critical dimensions of G4 connectors, including pin spacing, diameter, and alignment.
Key Features & Benefits
✔ Standard Compliance: Fully meets IEC60061-3 specifications for G4 lamp bases
✔ Precision Measurement: Verifies 4mm pin spacing with ±0.01mm accuracy
✔ Multi-Parameter Testing: Checks pin diameter (1.0mm typical), insertion depth, and base alignment
✔ Durable Construction: Made from hardened tool steel with anti-corrosion coating
✔ Universal Use: Suitable for halogen, LED, and specialty bulbs with G4 bases
✔ Quality Assurance: Critical for production QC, R&D, and compliance testing
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | IEC60061-3 |
| Base Type | G4 Bi-Pin |
| Pin Spacing | 4.0mm ±0.01mm |
| Material | Hardened Tool Steel |
| Surface Finish | Anti-corrosion treatment |
| Compliance | CE / RoHS Certified |
