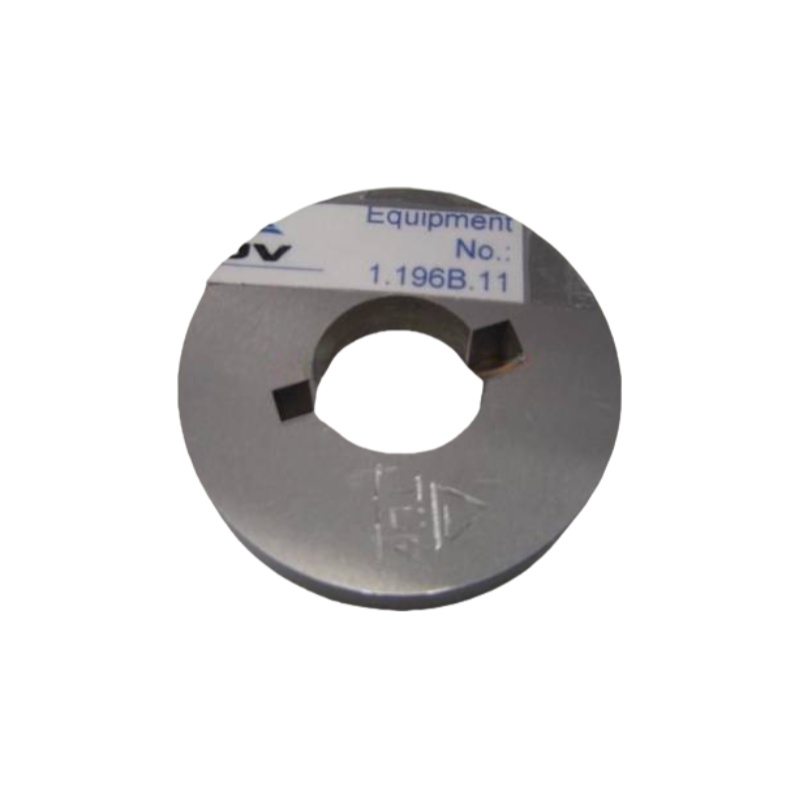

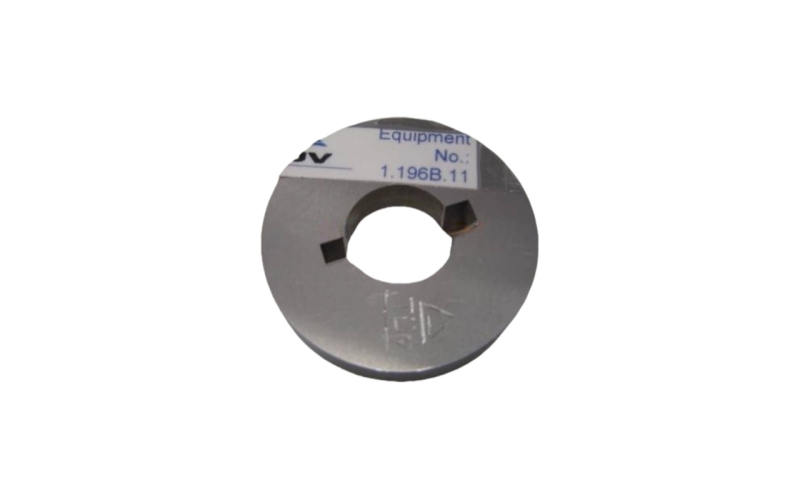

Professional-Grade Measurement Tool for B15d Lamp Bases
The IEC60061-3 B15d 7006-10-8 is a high-accuracy gauge designed for verifying 15mm bayonet (B15d) lamp bases to international IEC standards. This essential quality control instrument ensures proper dimensional compliance for bulbs used in appliance lighting, automotive applications, and industrial equipment across global markets.
Key Features & Technical Advantages
✔ IEC 60061-3 Compliant - Certified for B15d base verification
✔ Precision Engineering - Measures 15mm pin diameter with ±0.01mm tolerance
✔ Dual-Pin Alignment Check - Simultaneously verifies both bayonet pins
✔ Industrial-Grade Durability - Hardened chromium steel construction
✔ Quality Assurance - Includes NIST-traceable calibration certificate
Critical Measurements:
Pin diameter: 15mm ±0.01mm
Pin spacing: 15° engagement angle
Base depth: 9.5mm (standard)
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | IEC 60061-3 |
| Base Type | B15d Bayonet |
| Material | Chromium Alloy Steel |
| Surface Finish | Anti-corrosion coating |
| Compliance | CE, RoHS, IEC |
| Certification | Calibration certificate included |
