Product Description:

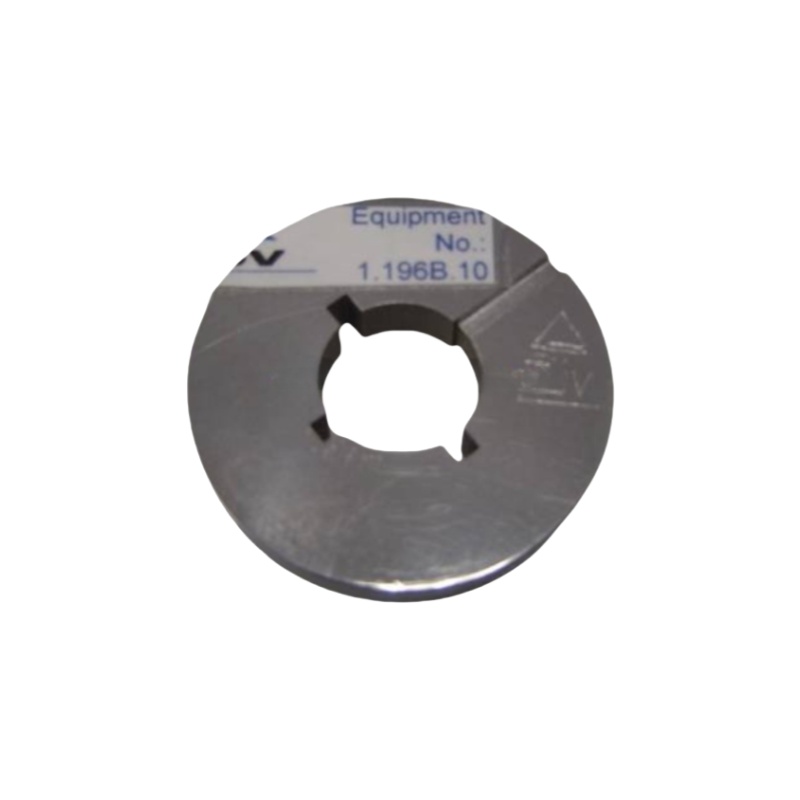

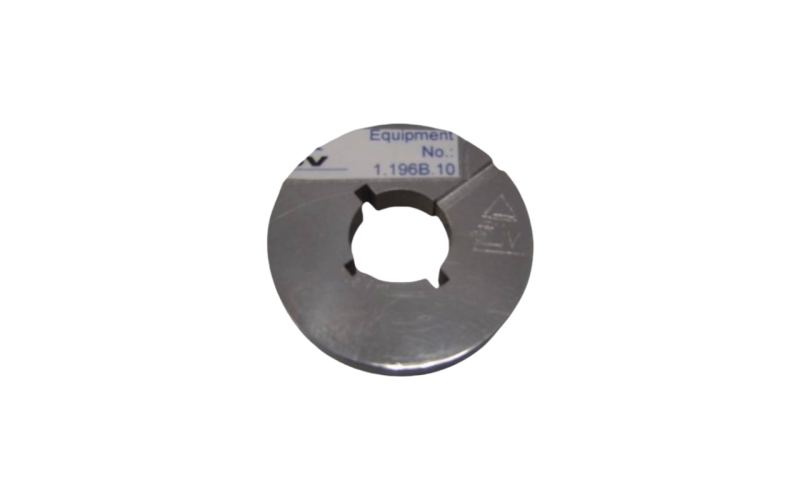

The IEC60061-3 B15d 7006-4B-2 is a precision-engineered measurement gauge specifically designed for B15d (15mm bayonet) lamp bases, ensuring full compliance with international IEC standards. This professional-grade instrument provides accurate dimensional verification of bayonet connectors critical for appliance lighting, automotive applications, and industrial equipment worldwide.
Key Features & Benefits:
✔ IEC 60061-3 Certified - Guaranteed compliance for B15d base verification
✔ Ultra-Precise Measurement - 15mm pin diameter verification (±0.005mm tolerance)
✔ Dual-Pin Alignment System - Simultaneously checks both bayonet pins at 15° engagement angle
✔ Military-Grade Durability - Hardened stainless steel with titanium nitride coating
✔ Complete QC Solution - Includes ISO 17025 accredited calibration certificate
✔ Ergonomic Design - Non-slip grip for production line use
Technical Specifications:
| Parameter | Specification |
|---|---|
| Standard | IEC 60061-3 |
| Base Type | B15d Bayonet |
| Measurement Range | 14.95-15.05mm |
| Material | Grade 440C Stainless Steel |
| Surface Hardness | 60 HRC |
| Temperature Range | -20°C to 120°C |
| Compliance | CE, RoHS, IEC, ISO 9001 |
