Professional Compliance Tool for UK 13A Plugs & Sockets

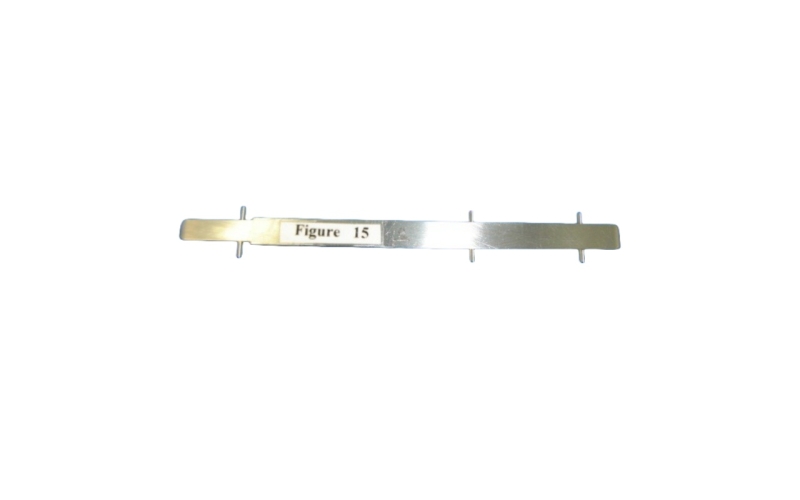

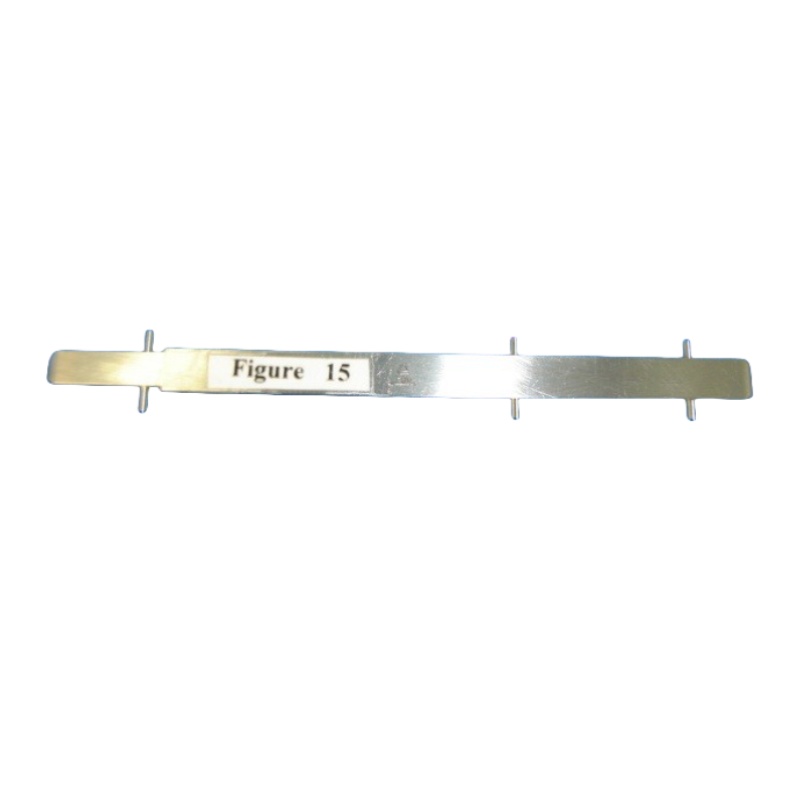

The BS1363-F15 is a precision-engineered test gauge designed to verify critical safety dimensions of UK 13A plugs and sockets according to BS 1363-1/-2/-3 standards. This essential quality control instrument ensures proper pin configuration, shutter mechanism operation, and mechanical integrity for manufacturers, testing labs, and certification bodies.
Key Features & Technical Advantages
✔ Full BS 1363 Compliance - Tests all mandatory requirements for UK 13A plugs/sockets
✔ Comprehensive Safety Checks:
Live/neutral pin diameter (4.0mm ±0.01mm)
Earth pin dimensions (6.3×4.0mm ±0.01mm)
Shutter mechanism operation test
Socket entry profile verification
✔ Industrial-Grade Durability - Hardened stainless steel construction (Grade 304)
✔ Complete Kit Includes:BS1363-F15 gauge body
Test pins set (Type F15)
UKAS-traceable calibration certificate
Critical Measurements:
Pin spacing: 22.2mm ±0.05mm
Insertion depth: 9.5mm max
Contact pressure: 1.5-2.5N
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | BS 1363-1/-2/-3 |
| Material | Grade 304 Stainless Steel |
| Surface Finish | Electropolished |
| Measurement Tolerance | ±0.005mm |
| Compliance | UKCA, CE, RoHS |
