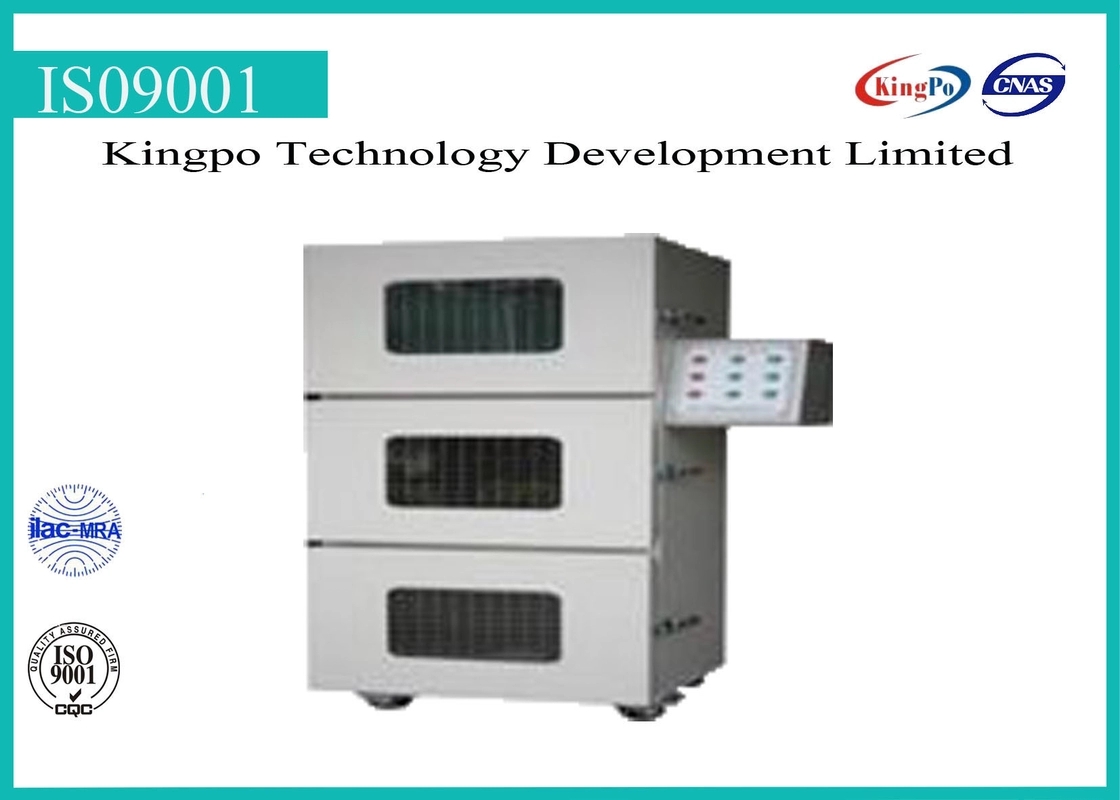

Battery Testing Machine / Overcharge Explosion Proof Test Chamber 300mm-300mm-300mm
Battery Testing Machine / Overcharge Explosion Proof Test Chamber 300mm*300mm*300mm
- Model：
Battery Overcharge Explosion Proof Test Chamber
| Alternative name | Battery Overcharge Explosion Proof Test Chamber |
| Function | Place the battery on the test chamber, through over-charging and over- discharging, check whether the battery will explode |
| Type | Three tanks |
| Weight | 180kg |
| Internal space | 300mm*300mm*300mm |
| Corresponding test standard | IEC 68-2-6(FC), GB2423, JJG189-97, GB/T13309-91 |
Description
The battery overcharge explosion proof test chamber is used to test safety capability of battery through overcharging and over-discharging in the test chamber, check whether the battery will explode.
The battery will be placed in the explosion- proof chamber, the charging and discharging tester will be connected outside to protect operator and tester.
Features
a. The tester is used for testing overcharging and over-discharging of battery.
b. The tester is divided three layer with three test chamber.
c. Test result is non explosion, no fire, non air leaking, non electrolyte leakage for the qualified battery.
Specifications
| Model | KP-FB-100 |
| Dimension of each test chamber | 500*500*500mm (three layer) |
| Material | External box: A3 steel sheet with baking finish; internal box: SUS#304 |
| Door | Single door, double opening door made of stainless steel |
| Observing window | 5mm tempered glass |
| Accessories for door | Reinforce hinge; explosion proof handle locks |
| teflon sol cloth sticked 1/3 inside of internal box to anti-erosion | |
| Two round holes for connecting cables on the back with diameter φ50mm | |
| Separate air exhausting outlet for each test box | |
| Exhausting fan for each test box on the back with exhausting tube to connect reinforce exhaust fan outside laboratory | |
| Heat-insulation device for each layer to keep from inter- influencing |
Battery Testing Machine / Overcharge Explosion Proof Test Chamber 300mm-300mm-300mm. Kingpo builds this as a complete test station: chamber or fixture, control system, safety interlocks and data capture, so that the abuse or performance test in the applicable standard can be run and documented without building the rig yourself.
What it does
- Reproduces the condition named in the standard (thermal, mechanical, electrical or environmental)
- Holds the setpoint within the tolerance the standard allows
- Records the run and retains the data for the test report
- Protects the operator: abuse testing is hazardous by design
Specification
| Function | Battery Testing Machine / Overcharge Explosion Proof Test Chamber 300mm-300mm-300mm |
| Control | Programmable controller with data logging |
| Safety | Interlocked chamber / guarded fixture, emergency stop |
| Power supply | AC 220 V 50/60 Hz (other supplies on request) |
| Calibration | Calibration certificate supplied |
| Made by | Kingpo — built, tested and calibrated in-house |
How a test run works
- Confirm the standard, clause and sample preparation your market requires.
- Set the profile: setpoint, ramp rate, dwell and number of cycles.
- Load the sample, close the interlocks and start the run.
- Monitor through the viewing window or camera; do not open the chamber during an abuse test.
- Export the run data and attach it to the test report.
Buying notes
Battery abuse testing scales with cell size and energy. Tell us the largest cell or pack you will test, the standard you test to, and whether you need the chamber to be explosion-proof — those three answers decide the model more reliably than the product name.
Frequently asked questions
Can the chamber be customised?
Yes. Dimensions, temperature range, penetration fixtures and data interfaces are all configurable.
Is installation included?
We provide installation guidance and commissioning support remotely; on-site service is available.
Is calibration included?
Yes, a calibration certificate is supplied with the unit.
Related gauges and equipment
Other equipment in the same range:
- Charge And Discharge Battery Testing Machine Minimum Output Current 150mA
- RCDS-100V200A Technical Specification for battrry Charge and Discharge Equipment
- KP-5067-C Battery Testing Services , Battery Compression Tester PLC Control
- KP-PC-5000A Battery High Current Short Circuit Tester，Battery Tester
- High Stability Electrodynamic Vibration Shaker System Computer Control EV103VT
- 72V5A 4ch Battery Testing Machine High Precision And Energy Saving Feedback Type Battery Capacity Tester
Send the standard, figure number and quantity to Kingpo technical sales for a quotation and delivery date.
Parameters of the Battery Testing Machine / Overcharge Explosion Proof Test Chamber 300mm-300mm-300mm. Chamber size, temperature range and fixture are configured to the standard and to the largest cell or pack you will test.
| Function | Battery Testing Machine / Overcharge Explosion Proof Test Chamber 300mm-300mm-300mm |
| Internal working space | 300 × 300 × 300 mm |
| Control | Programmable controller with data logging |
| Safety | Interlocked enclosure / guarded fixture, emergency stop |
| Power supply | AC 220 V 50/60 Hz (three-phase and other voltages on request) |
| Scope of supply | Test station with controller and calibration certificate |
| Calibration | Calibration certificate supplied; re-calibration available |
| Origin | Kingpo — machined, inspected and calibrated in-house |
Custom versions, alternative materials and re-calibration are available. Send the standard, figure number and quantity for a quotation. Tell us the largest sample, the standard and whether the chamber must be explosion-proof.
