IEC62133 Clause 7.3.7 Lithium Battery Low Pressure Chamber To Simulate High Altitude Testing

IEC62133 Clause 7.3.7 Lithium Battery Low Pressure Chamber To Simulate High Altitude Testing 0

IEC62133 Clause 7.3.7 Lithium Battery Low Pressure Chamber To Simulate High Altitude Testing 1

Usage:

used for battery test at high altitude and low voltage.It should be tested for 6h under negative pressure of 11.6kPa(1.68psi).Battery qualified without explo-

sion,fire,smoke and leakage.Automatic control of test period(like 6h).Monitor inside voltage change throughout.Test finish when achieving the objective.

Standard basis:GB/T 18287, UL2054, UN 38.3,UL 1642,IEC61960,IEC62133,etc

Structure and Feature:

1. External:high end A3 painted steel sheet with firmcoating and anti-rust capability.

2. Internal:good quality SUS304# stainless steel sheet with fire and corrosion proof and easy cleaning Teflon tape to protect the chamber ultimately.

3. Filling material:ultrafine aluminum silicate wool

4. Front opening double-layer toughened glass viewing window

5. Automatic control of air input and output and constant voltage.Chamber door uses high temperature resistant sillica gel bar which ensure a fine air-proof effectiveness and constant vacuum degree.

6. Safety device:Pre-overpressure device and pressure-relief value

7. Automatic alert:operational mistakes and timeout

8. Built-in vacuum pump,easy to use and move.

Specification:

Internal:SUS201# stainless steel sheet,thickness:4mm;

External:A3 cold-rolled painted steel sheet;thickness:1.2mm;

Pressure range:0.5～100Kpa;

Internal dimension:W300*H300*D300mm

External dimension:W400*H1200*D400

Shelf:stainless steel

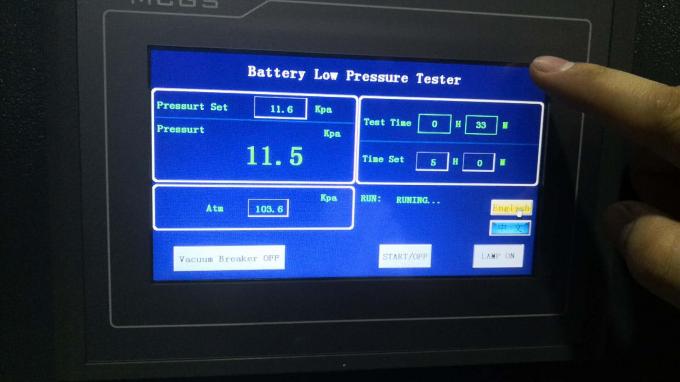

Vacuum degree display:pointer type controller

Timer:LED display.Freely set between 0~9999H(H/M/S adjustable)

Voltage Fluctuation:≤5%

Power:AC380V,50HZ,2.2KW;

Note:Operational environment temperature is(20±5)℃ to keep inside temp.

Standard Configuration:

1. Low voltage test host machine:1 set(built-in vacuum pump)

2. stainless shelf:2 pieces

3. operation instruction:1 booklet

4. warranty card:1 pcs

Operation environment:

1. Avoid direct sunlight,high temperature and moisture

2. On stable surface

3. Power:three-phase four-wire system,reliable earthing.

4. Environment temperature is(20±5)℃.

PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.

SERVICES

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.

We cooperated with each other, and we will do TOP OF THE BEST battery

IEC62133 Clause 7.3.7 Lithium Battery Low Pressure Chamber To Simulate High Altitude Testing. Kingpo builds this as a complete test station: chamber or fixture, control system, safety interlocks and data capture, so that the abuse or performance test in the applicable standard can be run and documented without building the rig yourself.

What it does

Reproduces the condition named in the standard (thermal, mechanical, electrical or environmental)
Holds the setpoint within the tolerance the standard allows
Records the run and retains the data for the test report
Protects the operator: abuse testing is hazardous by design

Specification

Function	IEC62133 Clause 7.3.7 Lithium Battery Low Pressure Chamber To Simulate High Altitude Testing
Control	Programmable controller with data logging
Safety	Interlocked chamber / guarded fixture, emergency stop
Power supply	AC 220 V 50/60 Hz (other supplies on request)
Calibration	Calibration certificate supplied
Made by	Kingpo — built, tested and calibrated in-house

How a test run works

Confirm the standard, clause and sample preparation your market requires.
Set the profile: setpoint, ramp rate, dwell and number of cycles.
Load the sample, close the interlocks and start the run.
Monitor through the viewing window or camera; do not open the chamber during an abuse test.
Export the run data and attach it to the test report.

Buying notes

Battery abuse testing scales with cell size and energy. Tell us the largest cell or pack you will test, the standard you test to, and whether you need the chamber to be explosion-proof — those three answers decide the model more reliably than the product name.

Frequently asked questions

Can the chamber be customised?

Yes. Dimensions, temperature range, penetration fixtures and data interfaces are all configurable.

Is installation included?

We provide installation guidance and commissioning support remotely; on-site service is available.

Is calibration included?

Yes, a calibration certificate is supplied with the unit.

Related gauges and equipment

Other equipment in the same range:

Send the standard, figure number and quantity to Kingpo technical sales for a quotation and delivery date.

Parameters of the IEC62133 Clause 7.3.7 Lithium Battery Low Pressure Chamber To Simulate High Altitude Testing. Chamber size, temperature range and fixture are configured to the standard and to the largest cell or pack you will test.

Standard	IEC62133
Figure / clause	Clause 7.3.7
Function	IEC62133 Clause 7.3.7 Lithium Battery Low Pressure Chamber To Simulate High Altitude Testing
Control	Programmable controller with data logging
Safety	Interlocked enclosure / guarded fixture, emergency stop
Power supply	AC 220 V 50/60 Hz (three-phase and other voltages on request)
Scope of supply	Test station with controller and calibration certificate
Calibration	Calibration certificate supplied; re-calibration available
Origin	Kingpo — machined, inspected and calibrated in-house

Custom versions, alternative materials and re-calibration are available. Send the standard, figure number and quantity for a quotation. Tell us the largest sample, the standard and whether the chamber must be explosion-proof.
