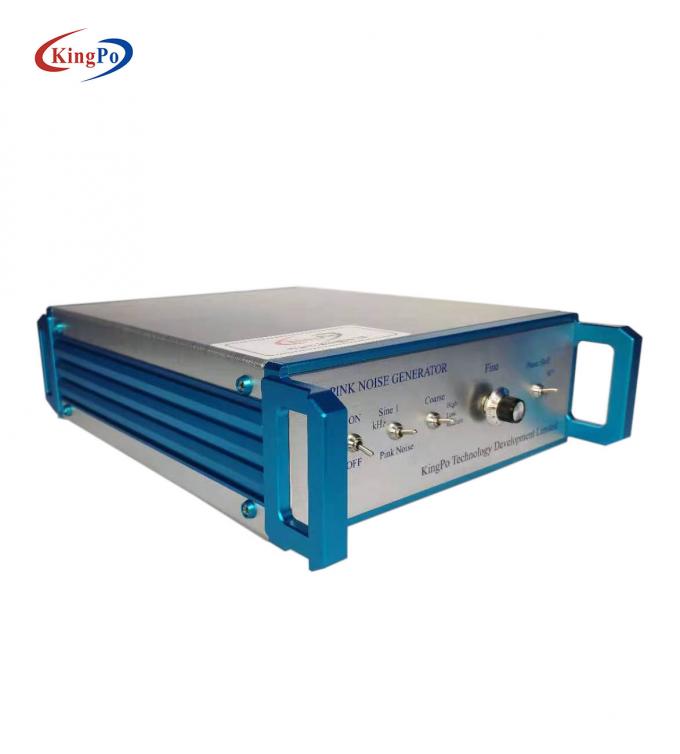

IEC 62368-1 Annex E Pink Noise Generator,Meets The Requirements For Pink Noise In IEC 60065 Clause 4.2 And 4.3

This Pink Noise Generator meets the requirements for pink noise in IEC 60065, Clause 4.2 and 4.3 and IEC 62368-1, Annex E.
It is especially developed for all types of tone frequency amplifiers,when you need 2 channels/phase 90°
Technical Specification
•Pink noise or sine wave 1000 Hz (not at the same time)Pink Noise Generator for Audio Testing.docx

•Two output channels when testing
•The channels can be phase shifted to 0° or 90°
•Fine adjustments of output voltage

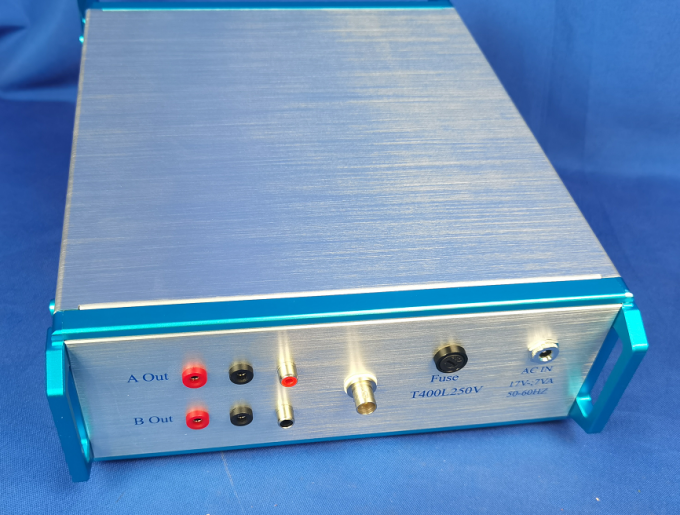

•RCA and 4 mm banana type output connectors
•Audio-cables for test object included (RCA and 3,5 mm phono)

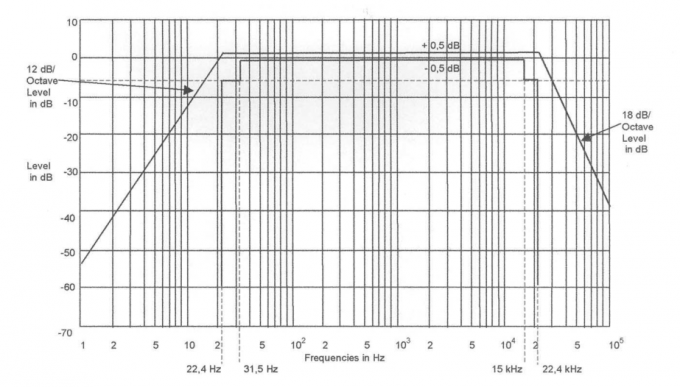

•Output signal according to IEC 60065 Annex C, fig. C1 (IEC60268)
•Amplitudes of sine wave and pink noise according to table below:
Output Voltage         Sine wave 1 kHz                      Filtered pink noise
Low:                            0-100 mV/1 kohm               0-35 mV rms/1 kohm
Medium:                      0-1 V/1 kohm                     0-350 mV rms/1 kohm
High:                            0-5 V/1 kohm                     0-1,7 V rms/1 kohm

IEC 62368-1 Annex E Pink Noise Generator,Meets The Requirements For Pink Noise In IEC 60065 Clause 4.2 And 4.3. IEC 60601-1 — medical electrical equipment — general requirements for basic safety and essential performance. IEC 60601-1 is the base standard for the basic safety and essential performance of medical electrical equipment; the collateral and particular standards add requirements for specific equipment types. This unit is built by Kingpo for bench use in a medical electrical safety laboratory, and it is supplied with a calibration certificate.

What it measures

• The quantities named in the applicable clause of IEC 60601-1
• Worst-case supply and load conditions, selected from the front panel or automatically
• Pass/fail against the limits entered by the operator, with the reading retained for the report

Specification

How a test run works

1. Configure the supply condition and the measuring device arrangement the clause requires.
2. Connect the equipment under test, including any applied part and earth reference.
3. Select or program the sequence: normal condition first, then the single-fault conditions.
4. Run, capture the readings and compare them with the allowable values in the standard.
5. Store or print the result set; the test report needs every condition, not just the pass.

Buying notes

Confirm three things before ordering: which edition of IEC 60601-1 your market requires, whether you need the single-fault conditions automated, and what load range your products actually present. Sending us the clause numbers you test against is usually faster than comparing model names.

Frequently asked questions

Is the unit calibrated before despatch?

Yes, and we re-calibrate on request.

Can it be supplied for 110 V?

Yes — other supply voltages and plug types are available; tell us the market.

Do you provide the test procedure?

We supply the operating procedure and, where the standard allows, the test sequence pre-programmed.

Related gauges and equipment

Other equipment in the same range:

• IEC 60601-1-Figure 34 Spark Ignition Test Apparatus
• ANSIAAMI EC12：2000(R2005) Disposable ECG Electrode Performance Tester
• IEC 60601-1 Grips And Other Handling Devices-7 Cm Strap Tester
• ISO 9360-1 Heat And Moisture Exchangers (HMEs) For Humidifying Respired Gases In Humans-Measurement Of Moisture Loss
• ISO 23328-1 Conditioning Apparatus For BSF
• Surgical Mask Tester Surface Moisture Permeability Tester Height Adjustable Manual Control

Send the standard, figure number and quantity to Kingpo technical sales for a quotation and delivery date.
