Loading pad - IEC60601-2-52-Figure 201 .1 04 Loading pad

Loading pad - IEC60601-2-52-Figure 201 .1 04 Loading pad

Loading pad | IEC60601-2-52-Figure 201 .1 04 Loading pad

  • Model：
Online Inquiry

Loading pad | IEC60601-2-52-Figure 201 .1 04 Loading pad


201 .5.1 02 Loading pad

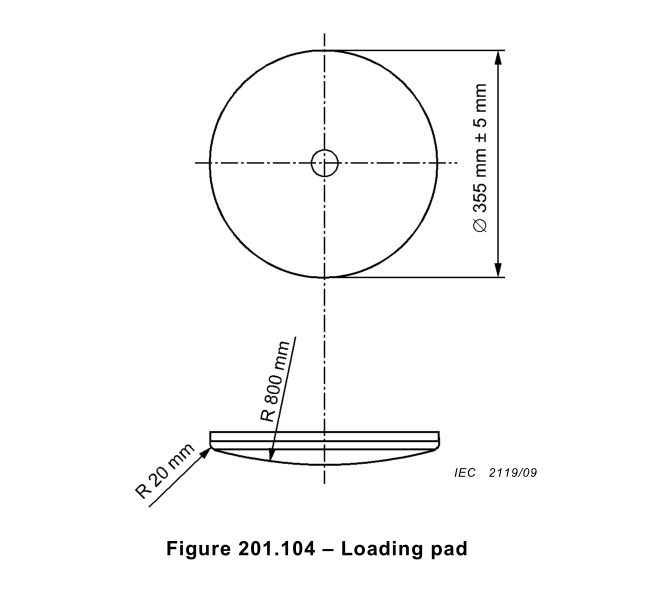

The loading pad (see Figure 201 .1 04) is a rigid circular object, (355+/–5) mm in diameter, the face of which has a convex spherical curvature of 800 mm radius with a 20 mm front edge radius.

ISO80369 Testing Equipment,Luer Gauge,ISO80369 Gauge,ISO5356 Gauge


                                                Figure 201 .1 04 – Loading pad


label: Loading pad IEC60601-2-52-Figure 201 .1 04 Loading pad
