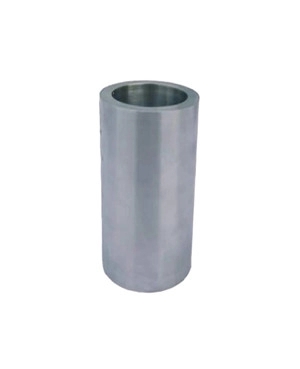

Cylinder tool - IEC60601-2-52-Figure 201 .103 b Cylinder tool

Cylinder tool | IEC60601-2-52-Figure 201 .103 b Cylinder tool

Model：

Cylinder tool | IEC60601-2-52-Figure 201 .103 b Cylinder tool

Cylinder tool | IEC60601-2-52-Figure 201 .103 b Cylinder tool 0

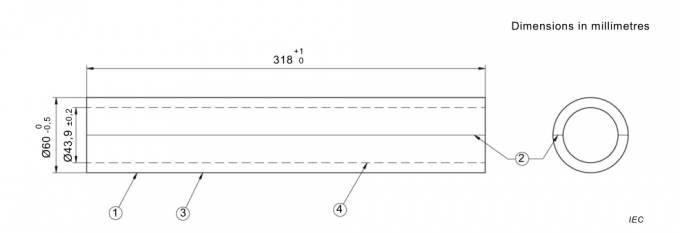

Key
1 Total weight 3,34 kg ±0,05 kg
2 Marked centre line
3 Surface roughness 1 ,6
4 Drilling hole for weight adjustment

Figure 201 .1 03 b) – Cylinder tool schematic

label: Cylinder tool IEC60601-2-52-Figure 201 .103 b Cylinder tool
