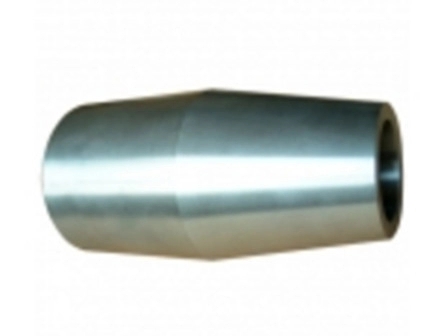

Cone tool - IEC60601-2-52-Figure 201 .103 a cone tool

Cone tool | IEC60601-2-52-Figure 201 .103 a cone tool

Model：

Online Inquiry

Cone tool | IEC60601-2-52-Figure 201 .103 a cone tool

ISO80369 Testing Equipment,Luer Gauge,ISO80369 Gauge,ISO5356 Gauge

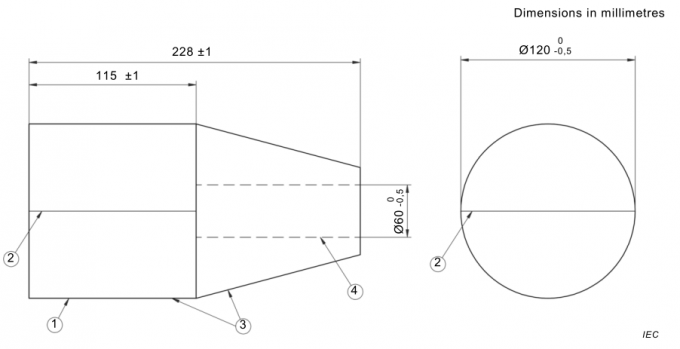

Key
1 Total weight 5,1 kg ±0,05 kg
2 Marked centre line
3 Surface roughness 1 ,6
4 Drilling hole for weight adjustment

Figure 201 .1 03 a) – Cone tool schematic

label: Cone tool IEC60601-2-52-Figure 201 .103 a cone tool
