IEC60601-2-52 Entrapment Test Tools - Cylinder Tool

IEC60601-2-52 Entrapment Test Tools | Cylinder Tool

Model： IEC60601-2-52-Figure 201 .1 03 b

Online Inquiry

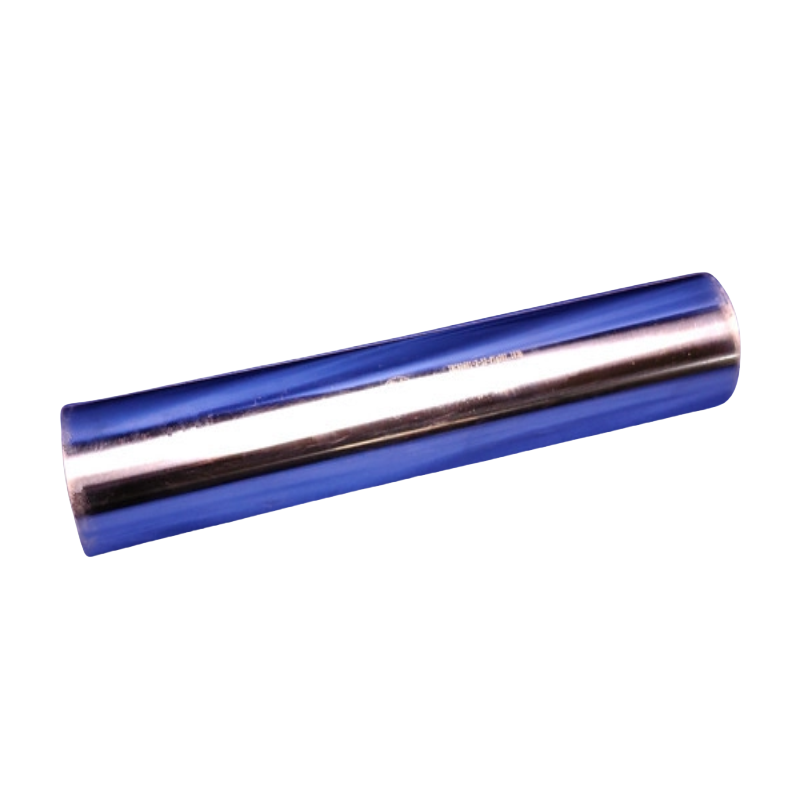

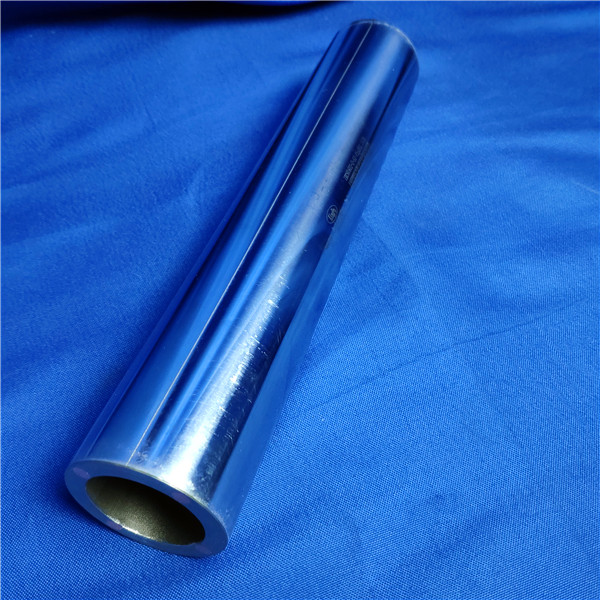

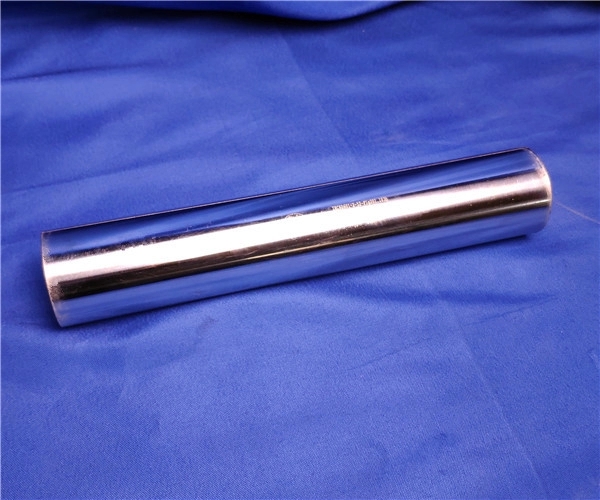

IEC60601-2-52 Entrapment test tools | Cylinder tool

Cylinder tool | IEC60601-2-52-Figure 201 .103 b Cylinder tool

Key
1 Total weight 3,34 kg ±0,05 kg
2 Marked centre line
3 Surface roughness 1 ,6
4 Drilling hole for weight adjustment

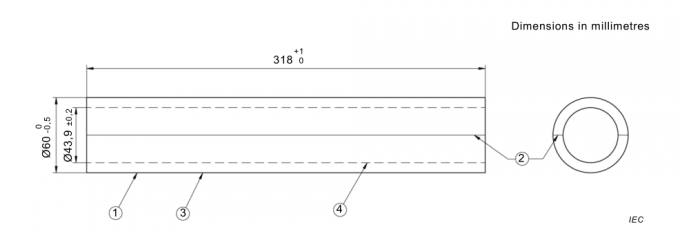

Figure 201 .1 03 b) – Cylinder tool schematic
