Computer Control Mode Mask Resistance Tester Timing Accuracy 0.1s
Computer Control Mode Mask Resistance Tester Timing Accuracy 0.1s
- Model：

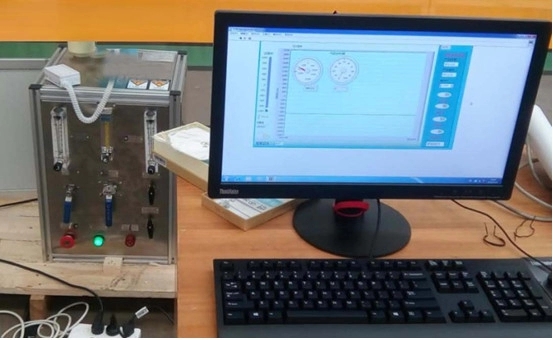

Mask resistance tester
1.Test standard: yy0469-2011 medical surgical mask
Differential pressure tester is used for pressure difference detection of surgical masks. The equipment is equipped with software, which can display pressure curve in real time, output test report and save test data. Meet the test standard yy0469-2011 surgical mask 5.7. YY/ t0969-2010, ventilation resistance 5.6
2. Features of equipment
1. The equipment is equipped with an air pump to simulate artificial respiration.
2. The detector is equipped with positive pressure sensor, which is used to collect the pressure of test data and reflect it to the computer software.
3. The pressure has a non-polar adjustable function, and the technical parameters such as the pressure holding time can be set.
3.Technical parameters of the tester
1. Flowmeter range: 8L/min.
2. Control mode: computer.
3. The micromanometer has a measuring range of 0-500pa and an accuracy of 1pa.
4. Timing accuracy: 0.1s.
Technical parameters
| Fundamental | The vacuum pump was used to simulate breathing, and the pressure difference was tested. | |
| Test pressure | 0-500pa | |
| Microgauge range | 0-500pa,the accuracy is 1pa. | |
| Pressure resolution | 1Pa | |
| Time accurancy | 0.1s | |
| Test medium | air | |
| Control method | computer | |
| Flow rate | 8L/min | |
| Scope of application | surgical mask | |
Configuration list
| Name | Unit | Quantity | Remark |
| Pressure sensor | unit | 1 | 佛山一众 |
| Computer | unit | 1 | Lenovo |
| Flowmeter | pcs | 1 | According to the flow |
| Case | pcs | 1 | Aluminium profile |
| Positive pressure bump | pcs | 1 | Simulated human exhalation |
| Neddle valve | pcs | 2 | Regulated flow |
| Electric appliance | set | 1 | Chint Group |
| Decompression valve | pcs | 1 | Manual pressure |
| Software | pcs | 1 | SUPY1.0 |
Computer Control Mode Mask Resistance Tester Timing Accuracy 0.1s. Kingpo builds this as a complete bench instrument for the filtration and breathing-resistance measurements that mask and respirator standards call for: controlled flow, conditioned challenge aerosol or gas, and the measurement chain to read the result.
What it measures
- The quantity named in the applicable standard — filtration efficiency, breathing resistance, or fit
- Flow held at the setpoint through the whole measurement
- Result calculated and displayed, with the run retained for the report
Specification
| Function | Computer Control Mode Mask Resistance Tester Timing Accuracy 0.1s |
| Control | Automatic constant-current / constant-flow control |
| Display | Colour touch screen with result storage |
| Power supply | AC 220 V 50/60 Hz (other supplies on request) |
| Calibration | Calibration certificate supplied |
| Made by | Kingpo — built, tested and calibrated in-house |
How a test run works
- Condition the samples at the temperature and humidity the standard requires.
- Mount the sample in the holder and check the seal; leaks dominate this measurement.
- Set the flow rate and, for filtration tests, generate and neutralise the challenge aerosol.
- Run upstream and downstream sampling for the period the standard specifies.
- Calculate the result and record it with the batch reference.
Buying notes
Confirm which standard your market requires — GB 19083, EN 149, ASTM F2100 and NIOSH procedures differ in flow rate, challenge aerosol and acceptance criteria. Sending us the standard number is the fastest way to the right configuration.
Frequently asked questions
Which standards does it cover?
Tell us the standard and we will confirm the configuration; the flow range, aerosol generator and sampling arrangement are set to match it.
Is the aerosol generator included?
It depends on the configuration — some models include it, others use a separate generator.
Is calibration included?
Yes, a calibration certificate is supplied.
Related gauges and equipment
Other equipment in the same range:
- IEC 60601-1-Figure 34 Spark Ignition Test Apparatus
- ANSIAAMI EC12：2000(R2005) Disposable ECG Electrode Performance Tester
- IEC 60601-1 Grips And Other Handling Devices-7 Cm Strap Tester
- ISO 9360-1 Heat And Moisture Exchangers (HMEs) For Humidifying Respired Gases In Humans-Measurement Of Moisture Loss
- ISO 23328-1 Conditioning Apparatus For BSF
- Surgical Mask Tester Surface Moisture Permeability Tester Height Adjustable Manual Control
Send the standard, figure number and quantity to Kingpo technical sales for a quotation and delivery date.
Parameters of the Computer Control Mode Mask Resistance Tester Timing Accuracy 0.1s. The flow range, challenge aerosol and sampling arrangement are set to the standard your market requires.
| Function | Computer Control Mode Mask Resistance Tester Timing Accuracy 0.1s |
| Flow control | Constant-flow / constant-current control with setpoint |
| Display | Colour touch screen with result storage |
| Power supply | AC 220 V 50/60 Hz (other supply voltages on request) |
| Scope of supply | Instrument, sample holder and calibration certificate |
| Calibration | Calibration certificate supplied; re-calibration available |
| Origin | Kingpo — machined, inspected and calibrated in-house |
Custom versions, alternative materials and re-calibration are available. Send the standard, figure number and quantity for a quotation. Send us the standard number (GB 19083, EN 149, ASTM F2100, NIOSH) to confirm the configuration.
