Energy Saving Mask Tester Electrical Safety Test Equipment Esalt Aerosol Generator
Energy Saving Mask Tester Electrical Safety Test Equipment Esalt Aerosol Generator
- Model：

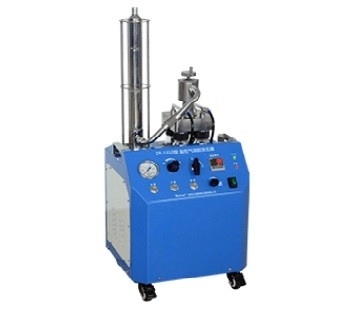

ZR-1310model salt aerosol generator
Product introduction
ZR - 1310 salt aerosols generator is the use of collison nozzle will have a certain specific concentration NaCl solution after spray drying, particle size and concentration of aerosol dedicated instruments, built-in clean air compressors, dryers and more nozzle valve, electrostatic neutralizer, output aerosol concentration in 100 L/min to 1000 L/min air flow, be able to reach 100 mu g/L ~ 10 mu g/L, output aerosol particle size range of 0.02 ~ 2 microns,It is applicable to the detection of masks, filter materials and hepa in medical instrument inspection institute, disease control center, hospital and hepa filter manufacturer.
Executive standard
EN149
GB/T 32610-2016 Technical requirements for daily protective masks
GB/2626-2006 Respirator - self - imbibition filter respirator against particulate matter
GB/T6165-2008 Performance test method for hepa filters - efficiency and resistance
Technical characteristics
Independent and external dual high-pressure air source design, stable airflow, particle output balance;
The range of aerosol particle size is large, and the sub-micron and micron particle sizes can be produced.
The aerosol concentration can be adjusted and the adjustable range is large.
Produce electrostatic neutralization of particulate matter, reduce aerosol transport loss, ensure accurate detection results.
Technical indicators
| main parameters | parameters |
| Working pressure | (60~200)kPa |
| Applicable air volume range | (30~1000)L/min |
| Suspended particle concentration | 100μg/L At 100L/min flow rate |
| Suspended particle concentration | 10μg/L At 1000L/min flow rate |
| Aerosol particle size range | (0.02~2)μm |
| With the wind flow | (30~100)L/min |
| Initial wind temperature | (80~120)℃ |
| Produce type | (2~4)个CollisonSpray nozzle drying |
| Working solution | A bottle of 65 ml |
| Working solution concentration | 10%~30% |
| Instrument noise | ＜50dB(A) |
| Host size | (length400×wide400×high900)mm |
| Working power | AC220V±10%,50/60Hz |
| Host weight | About 15kg |
| Host power consumption | ＜2000W |
Energy Saving Mask Tester Electrical Safety Test Equipment Esalt Aerosol Generator. Kingpo builds this as a complete bench instrument for the filtration and breathing-resistance measurements that mask and respirator standards call for: controlled flow, conditioned challenge aerosol or gas, and the measurement chain to read the result.
What it measures
- The quantity named in the applicable standard — filtration efficiency, breathing resistance, or fit
- Flow held at the setpoint through the whole measurement
- Result calculated and displayed, with the run retained for the report
Specification
| Function | Energy Saving Mask Tester Electrical Safety Test Equipment Esalt Aerosol Generator |
| Control | Automatic constant-current / constant-flow control |
| Display | Colour touch screen with result storage |
| Power supply | AC 220 V 50/60 Hz (other supplies on request) |
| Calibration | Calibration certificate supplied |
| Made by | Kingpo — built, tested and calibrated in-house |
How a test run works
- Condition the samples at the temperature and humidity the standard requires.
- Mount the sample in the holder and check the seal; leaks dominate this measurement.
- Set the flow rate and, for filtration tests, generate and neutralise the challenge aerosol.
- Run upstream and downstream sampling for the period the standard specifies.
- Calculate the result and record it with the batch reference.
Buying notes
Confirm which standard your market requires — GB 19083, EN 149, ASTM F2100 and NIOSH procedures differ in flow rate, challenge aerosol and acceptance criteria. Sending us the standard number is the fastest way to the right configuration.
Frequently asked questions
Which standards does it cover?
Tell us the standard and we will confirm the configuration; the flow range, aerosol generator and sampling arrangement are set to match it.
Is the aerosol generator included?
It depends on the configuration — some models include it, others use a separate generator.
Is calibration included?
Yes, a calibration certificate is supplied.
Related gauges and equipment
Other equipment in the same range:
- IEC 60601-1-Figure 34 Spark Ignition Test Apparatus
- ANSIAAMI EC12：2000(R2005) Disposable ECG Electrode Performance Tester
- IEC 60601-1 Grips And Other Handling Devices-7 Cm Strap Tester
- ISO 9360-1 Heat And Moisture Exchangers (HMEs) For Humidifying Respired Gases In Humans-Measurement Of Moisture Loss
- ISO 23328-1 Conditioning Apparatus For BSF
- Surgical Mask Tester Surface Moisture Permeability Tester Height Adjustable Manual Control
Send the standard, figure number and quantity to Kingpo technical sales for a quotation and delivery date.
Parameters of the Energy Saving Mask Tester Electrical Safety Test Equipment Esalt Aerosol Generator. The flow range, challenge aerosol and sampling arrangement are set to the standard your market requires.
| Function | Energy Saving Mask Tester Electrical Safety Test Equipment Esalt Aerosol Generator |
| Flow control | Constant-flow / constant-current control with setpoint |
| Display | Colour touch screen with result storage |
| Power supply | AC 220 V 50/60 Hz (other supply voltages on request) |
| Scope of supply | Instrument, sample holder and calibration certificate |
| Calibration | Calibration certificate supplied; re-calibration available |
| Origin | Kingpo — machined, inspected and calibrated in-house |
Custom versions, alternative materials and re-calibration are available. Send the standard, figure number and quantity for a quotation. Send us the standard number (GB 19083, EN 149, ASTM F2100, NIOSH) to confirm the configuration.
