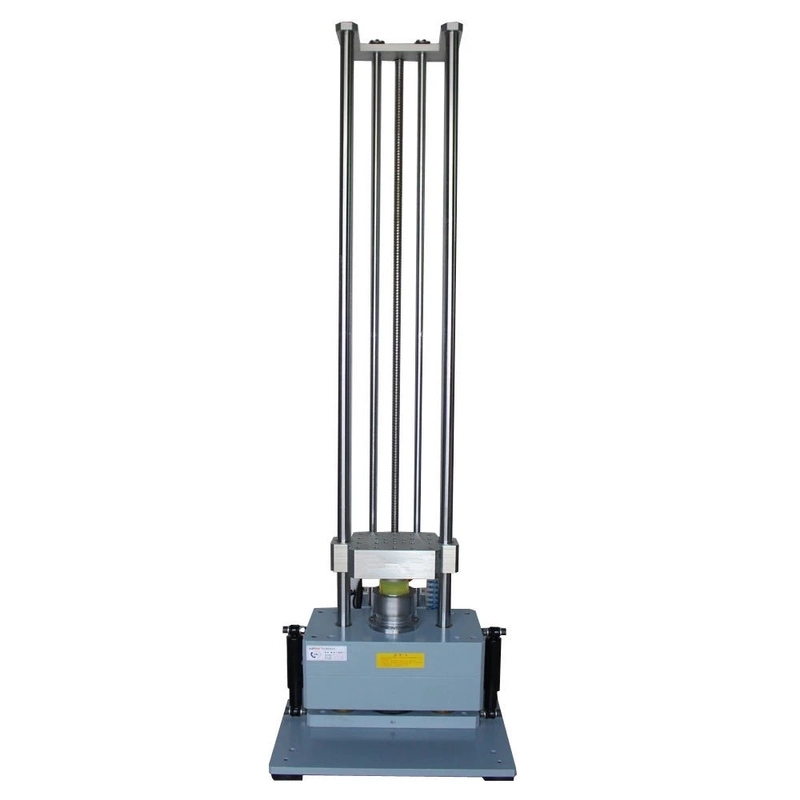

JESD22-B104 Laboratory Shock And Drop Testing Equipment / Mechanical Impact Tester / Shock Tester
Shock testing systems Design standards: GB/T2423-2008, GJB1217, GJB360.23, GJB150, GJB548, MIL-STD-202F, IEC-68-2-27, MIL-STD-883E, MIL-STD-810F, ISTA, UL
Also meet standard JESD22-B104 (condition B: 1500G, 0.5ms).
Shock testing systems Applications: aviation,aerospace,vessel,military industry,consumer electronics ,automobile,household appliances, display device etc.
Shock testing systems Features
User-friendly touching screen operation.Half sine, square waveform shock pulse programmers.High rigidity shock tables.
Half sine, square waveform shock pulse programmers.
High rigidity shock tables.
A full range of safety features.
Apply air and hydraulic pressurization, strong friction brake avoiding secondary shock.
Apply air spring suspension, hydraulic damping shockproof system, no shock impact on the surrounding, without foundation.
Shock testing systems Specifications
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | |
| Table size (cm) | 40*40 | 50*60 | 70*80 | 100*100 | 120*120 | 150*150 | 200*200 | |
| Maximum Specimen Weight(Kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | |
| Max. Acceleration (G) | half sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 |
| saw-tooth waveform | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| square | 150 | 150 | 150 | 100 | 100 | 100 | ||
| Pulse Duration (ms) | half sine | 40—0.2 | 40~1 | 40~1 | 30~2 | 20~3 | 20~3 | 20~3 |
| saw-tooth waveform | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | |
| square | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | ||
| Machine Dimension(cm) | 120*110*245 | 130*140*260 | 130*120*260 | 150*130*260 | 200*160*300 | 230*180*310 | 250*220*310 | |
| Controller cabinet Dimension(cm) | W55*D50*H80 | |||||||
| Machine Weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 19500 | |
| Utility Requirements | 3-phase AC380V 50/60Hz 0.5~0.8MPa | |||||||
| Conforming standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL | |||||||
High acceleration shock testing systems applications: mobile phone, computer components, connector, optical component, mobile product etc.
High acceleration shock testing systems specifications:
| Model | HSKT10 | HSKT10 | GSKT10D |
| Table size (cm) | 15*15 | 20*20 | 20*20 |
| Shock pulse | Half sine | ||
| Maximum Specimen Weight(Kg) | 5 | 10 | 10 |
| Acceleration Range(G) | 20 ~ 1500 | 20 ~ 1500 | 20 ~ 10000 |
| Pulse Duration (ms) | 0.5~11 | 0.5~11 | 0.2~11 |
| Machine Dimension(cm) | 60*55*250 | 60*55*250 | 90*70*275 |
| Utility Requirements | AC220V 50Hz 5A,Air pressure: more than 0.5Mpa | ||
| Machine Weight(Kg) | 600 | 650 | 110 |
