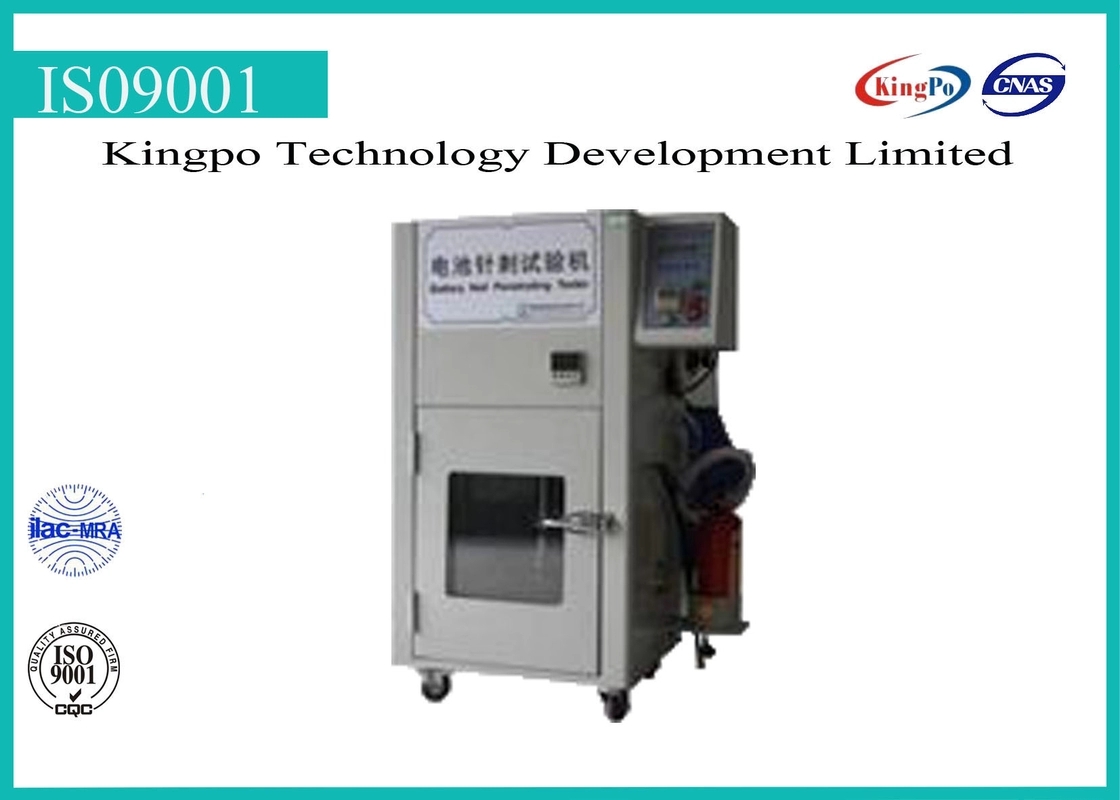

Three Tanks Battery Testing Machine / Battery Nail Penetration Tester KP-8112
Three Tanks Battery Testing Machine / Battery Nail Penetration Tester KP-8112
- Model：
Battery nail penetrating testing machine
| Function | Test safety capability of battery. Nail penetrates the specimen battery and check whether it will fire or explode |
| Type | Three tanks |
| Weight | 180kg |
| Internal space | 300mm*300mm*300mm |
| Corresponding test standard | SJ/T11170-1998 UL2054:1997, GB/T18287-2000 |
Description
Using steel nail penetrating the battery, the tester is used to check safety capability of battery, and the battery is qualified without fire, and explosion.
The nail penetrating test is processed under temperature of 20℃±5℃.
The specimen battery has thermocouple whose contact spot is located on the largest surface.
Place the battery on the fuming cupboard, using stainless nail with diameter of 2-8mm to penetrate the centre position of largest side of battery at speed of 10mm/s-40mm/s and keep for 5s.
Test result: the battery is qualified without fire and explosion.
Applicable objects
Lithium battery, nickel battery, Ni-MH battery, lead-acid battery
Specifications
| Model | GX-5068 |
| Steel nail | ф2mm—ф8mm high temperature resistant |
| Space between battery surface and nail point | 150mm |
| Penetrating speed | 10—40mm/s |
| Penetrating force | 150~200KG |
| Force display | Pressure sensing and LED display |
| Test stroke | 150mm |
| Drive mode | Cylinder drive |
| Structure of tester | Box-type to be explosion proof, fire proof, anti-corrosion and easy to clean |
| Dimension of explosion proof tank | 450×750×550mm(W×H×D) |
| Materials of explosion-proof tank | Galvanized sheet with baking finish |
| Dimension of controller box | 300×260×170mm |
| Power | 1ф220V , 50HZ |
Three Tanks Battery Testing Machine / Battery Nail Penetration Tester KP-8112. Kingpo builds this as a complete test station: chamber or fixture, control system, safety interlocks and data capture, so that the abuse or performance test in the applicable standard can be run and documented without building the rig yourself.
What it does
- Reproduces the condition named in the standard (thermal, mechanical, electrical or environmental)
- Holds the setpoint within the tolerance the standard allows
- Records the run and retains the data for the test report
- Protects the operator: abuse testing is hazardous by design
Specification
| Function | Three Tanks Battery Testing Machine / Battery Nail Penetration Tester KP-8112 |
| Control | Programmable controller with data logging |
| Safety | Interlocked chamber / guarded fixture, emergency stop |
| Power supply | AC 220 V 50/60 Hz (other supplies on request) |
| Calibration | Calibration certificate supplied |
| Made by | Kingpo — built, tested and calibrated in-house |
How a test run works
- Confirm the standard, clause and sample preparation your market requires.
- Set the profile: setpoint, ramp rate, dwell and number of cycles.
- Load the sample, close the interlocks and start the run.
- Monitor through the viewing window or camera; do not open the chamber during an abuse test.
- Export the run data and attach it to the test report.
Buying notes
Battery abuse testing scales with cell size and energy. Tell us the largest cell or pack you will test, the standard you test to, and whether you need the chamber to be explosion-proof — those three answers decide the model more reliably than the product name.
Frequently asked questions
Can the chamber be customised?
Yes. Dimensions, temperature range, penetration fixtures and data interfaces are all configurable.
Is installation included?
We provide installation guidance and commissioning support remotely; on-site service is available.
Is calibration included?
Yes, a calibration certificate is supplied with the unit.
Related gauges and equipment
Other equipment in the same range:
- Charge And Discharge Battery Testing Machine Minimum Output Current 150mA
- RCDS-100V200A Technical Specification for battrry Charge and Discharge Equipment
- KP-5067-C Battery Testing Services , Battery Compression Tester PLC Control
- KP-PC-5000A Battery High Current Short Circuit Tester，Battery Tester
- High Stability Electrodynamic Vibration Shaker System Computer Control EV103VT
- 72V5A 4ch Battery Testing Machine High Precision And Energy Saving Feedback Type Battery Capacity Tester
Send the standard, figure number and quantity to Kingpo technical sales for a quotation and delivery date.
Parameters of the Three Tanks Battery Testing Machine / Battery Nail Penetration Tester KP-8112. Chamber size, temperature range and fixture are configured to the standard and to the largest cell or pack you will test.
| Function | Three Tanks Battery Testing Machine / Battery Nail Penetration Tester KP-8112 |
| Control | Programmable controller with data logging |
| Safety | Interlocked enclosure / guarded fixture, emergency stop |
| Power supply | AC 220 V 50/60 Hz (three-phase and other voltages on request) |
| Scope of supply | Test station with controller and calibration certificate |
| Calibration | Calibration certificate supplied; re-calibration available |
| Origin | Kingpo — machined, inspected and calibrated in-house |
Custom versions, alternative materials and re-calibration are available. Send the standard, figure number and quantity for a quotation. Tell us the largest sample, the standard and whether the chamber must be explosion-proof.
