Technical Parameter:

BTS-20V10A Battery tester

Model Number:

BTS-

Battery tester

Material code:

CT-3008

-20V10A

items

Parameter

Input power

AC 220V ±10% / 60Hz

Input active power

2228

resolution ratio

AD:16bit；DA:12bit

Input impedance

≥1MΩ

voltage

Constant voltage range

100mV~20V

Minimum discharge voltage

2.5V

accuracy

± 0.1% of FS

stability

± 0.1% of FS

current

Output range/channel

50mA~10A

accuracy

± 0.1% of FS

Constant voltage cut-off current

0.02A

stability

± 0.1% of FS

power

Output range/channel

200W

stability

± 0.2% of FS

time

Current response time

maximum current rising time:20ms

working step time range

≤(365*24)h/working step

Time format00:00:00(h,min,s)

Data record

Record data conditions

Minimum sampling time:1s

Minimum sampling voltage:40mV

Minimum sampling current:20mA

Record frequency

1Hz

Charge

Charge mode

constant-current charge,constant-voltage charge,constant voltage and current charge

cut-off conditions

Voltage,current,relative time,capacity,-△V

discharge

Discharge mode

constant current discharge, constant watt discharge

cut-off conditions

Voltage,current,relative time,capacity,-△V

cycle

Loop test range

1~65535 times

Single cycle working steps

254

Loop nest

Nested loop function,max 3 layers

Protection

● Data Protection

● off-line test

● security conditions can be set including voltage upper/lower limit,current upper/lower limit and delay time

●anti reverse connection

IP Protection Class

IP20

Channel feature

constant current and voltage source ;double closed-loop;

Channel control mode

independent

Current/voltage detection sampling

four-wire connection

noise

<85dB

data base

MySQL centralized management of test datas

upper computer communication mode

TCP/IP

Data output mode

EXCEL2003,2010,TXT

Server disk Configuration

500GB

Server operating system

Windows 7

communication interface

ethernet

Working environment requirement

item

parameter

working temp. range

0℃~40℃(within25±10℃,ensured accuracy:precision drift0.005% of FS /℃)

Storage temp. range

-10℃~50℃

Working environment relative humidity range

≤70% RH(no water vapor condensation)

Storage environment relative humidity range

≤80% RH(no water vapor condensation)

Clamp specification and size

item

parameter

Clamp type

Polymer clamp

Pic

Alligator clamp

Polymer clamp

cable feet clamp

Pictures are for reference only,real objects shall prevail.Choose one

Cabinet size/unit(W*D*H)(mm)

12U(19”),600*600*740

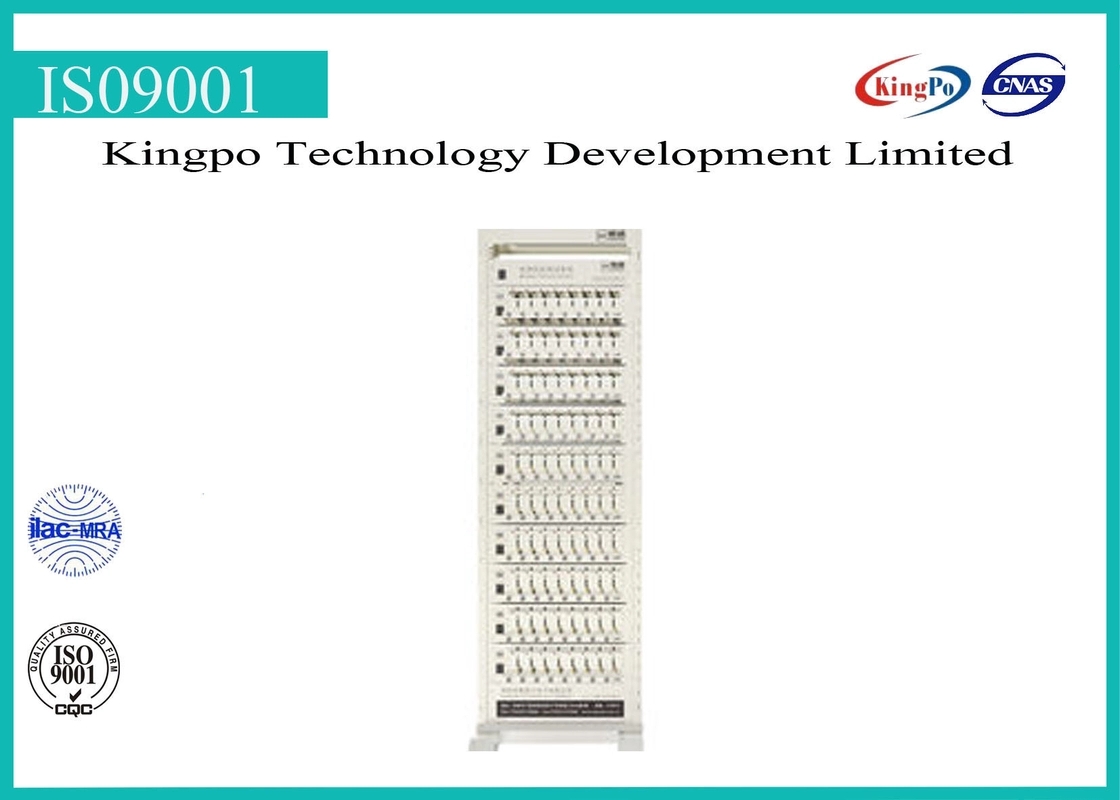

Equipment pic

Pictures are for reference only,real objects shall prevail.
